text version of content this owner's manual page from owners manual to the vehicle Audi A5, year of production 2007:

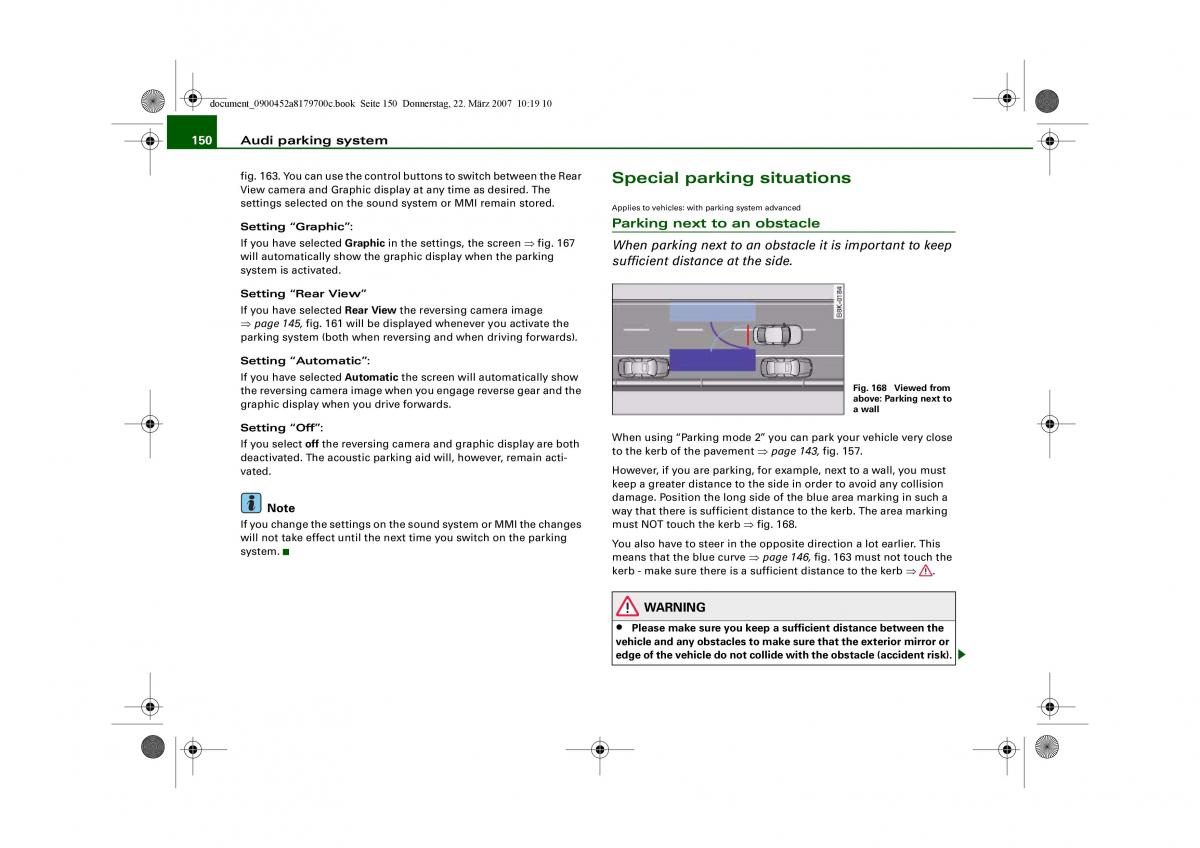

document_0900452a8179700c.book Seite 150 Donnerstag, 22. März 2007 10:19 10 150 Audi parking system fig. 163. You can use the control buttons to switch between the Rear Special parking situations View camera and Graphic display at any time as desired. The settings selected on the sound system or MMI remain stored. Applies to vehicles: with parking system advanced Setting “Graphic”: Parking next to an obstacle If you have selected Graphic in the settings, the screen ⇒ fig. 167 When parking next to an obstacle it is important to keep will automatically show the graphic display when the parking sufficient distance at the side. system is activated. Setting “Rear View” If you have selected Rear View the reversing camera image ⇒page145, fig. 161 will be displayed whenever you activate the parking system (both when reversing and when driving forwards). Setting “Automatic”: If you have selected Automatic the screen will automatically show the reversing camera image when you engage reverse gear and the Fig. 168 Viewed from graphic display when you drive forwards. above: Parking next to a wall Setting “Off”: When using “Parking mode 2” you can park your vehicle very close If you select off the reversing camera and graphic display are both to the kerb of the pavement ⇒ page 143, fig. 157. deactivated. The acoustic parking aid will, however, remain acti- vated. However, if you are parking, for example, next to a wall, you must keep a greater distance to the side in order to avoid any collision damage. Position the long side of the blue area marking in such a Note way that there is sufficient distance to the kerb. The area marking If you change the settings on th e sound system or MMI the changes must NOT touch the kerb ⇒ fig. 168. will not take effect until the next time you switch on the parking You also have to steer in the opposite direction a lot earlier. This system. means that the blue curve ⇒ page 146, fig. 163 must not touch the kerb - make sure there is a sufficient distance to the kerb ⇒. WARNING • Please make sure you keep a sufficient distance between the vehicle and any obstacles to make sure that the exterior mirror or edge of the vehicle do not collide with the obstacle (accident risk).
