text version of content this owner's manual page from owners manual to the vehicle Seat Ibiza, year of production 2008:

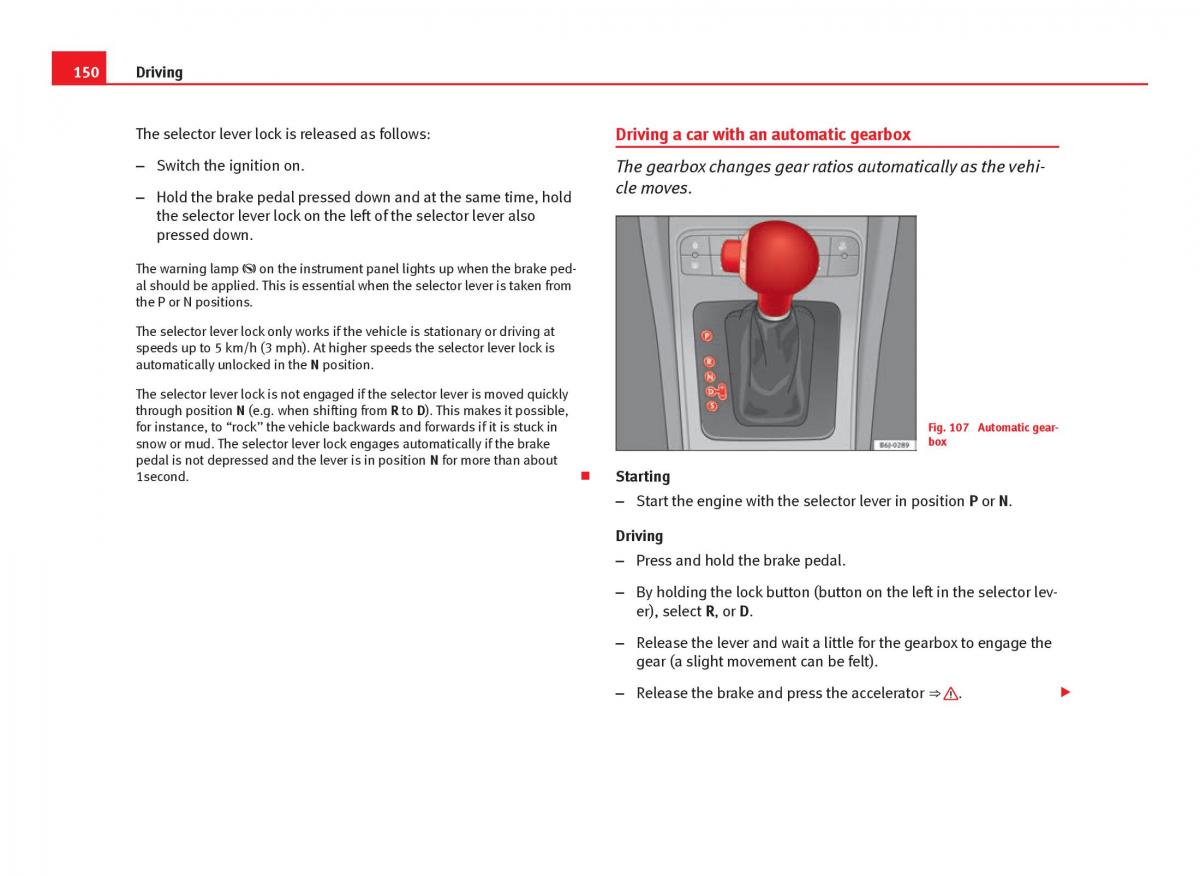

150 Driving The selector lever lock is released as follows: Driving a car with an automatic gearbox – Switch the ignition on. The gearbox changes gear ratios automatically as the vehi- cle moves. – Hold the brake pedal pressed down and at the same time, hold the selector lever lock on the left of the selector lever also pressed down. The warning lamp  on the instrument panel lights up when the brake ped- al should be applied. This is essential when the selector lever is taken from the P or N positions. The selector lever lock only works if the vehicle is stationary or driving at speeds up to 5 km/h (3 mph). At higher speeds the selector lever lock is automatically unlocked in the N position. The selector lever lock is not engaged if the selector lever is moved quickly through position N (e.g. when shifting from R to D). This makes it possible, for instance, to “rock” the vehicle backwards and forwards if it is stuck in Fig. 107 Automatic gear- box snow or mud. The selector lever lock engages automatically if the brake pedal is not depressed and the lever is in position N for more than about  1second. Starting – Start the engine with the selector lever in position P or N. Driving – Press and hold the brake pedal. – By holding the lock button (button on the left in the selector lev- er), select R, or D. – Release the lever and wait a little for the gearbox to engage the gear (a slight movement can be felt). – Release the brake and press the accelerator ⇒ . 
