text version of content this owner's manual page from owners manual to the vehicle Subaru XV, year of production 2011:

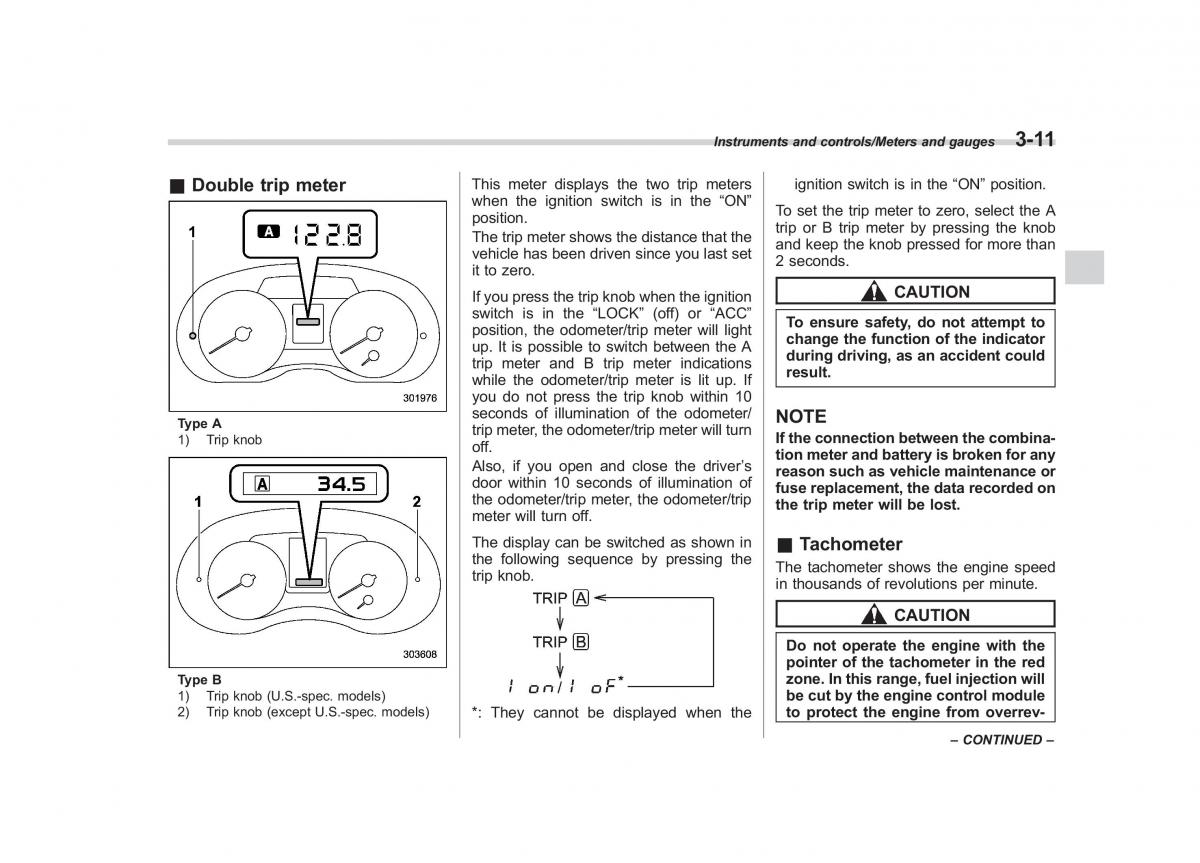

Instruments and controls/Meters and gauges3-11 &Doubletrip meter This meter displays the two trip metersignition switch is in the “ON” position. when the ignition switch is in the “ON”To set the trip meter to zero, select the A position. trip or B trip meter by pressing the knob Thetrip meter shows the distance that theand keep the knob pressed for more than vehicle has been driven since you last set2 seconds. it to zero. If you press the trip knob when the ignitionCAUTION switch is in the “LOCK” (off) or “ACC”To ensure safety, do not attempt to position, the odometer/trip meter will lightchange the function of the indicator up. It is possible to switch between the Aduring driving, as an accident could trip meter and B trip meter indicationsresult. while the odometer/trip meter is lit up. If you do not press the trip knob within 10 seconds of illumination of the odometer/NOTE Type A trip meter, the odometer/trip meter will turn 1) Trip knob off. If the connection between the combina- tion meter and battery is broken for any Also, if you open and close the driver’sreason such as vehicle maintenance or door within 10 seconds of illumination offuse replacement, the data recorded on the odometer/trip meter, the odometer/tripthe trip meter will be lost. meter will turn off. The display can be switched as shown in&Tachometer the following sequence by pressing theThe tachometer shows the engine speed trip knob. in thousands of revolutions per minute. CAUTION Do not operate the engine with the pointer of the tachometer in the red Type B zone. In this range, fuel injection will 1) Trip knob (U.S.-spec. models) be cut by the engine control module 2) Trip knob (except U.S.-spec. models)*: They cannot be displayed when theto protect the engine from overrev- – CONTINUED –
