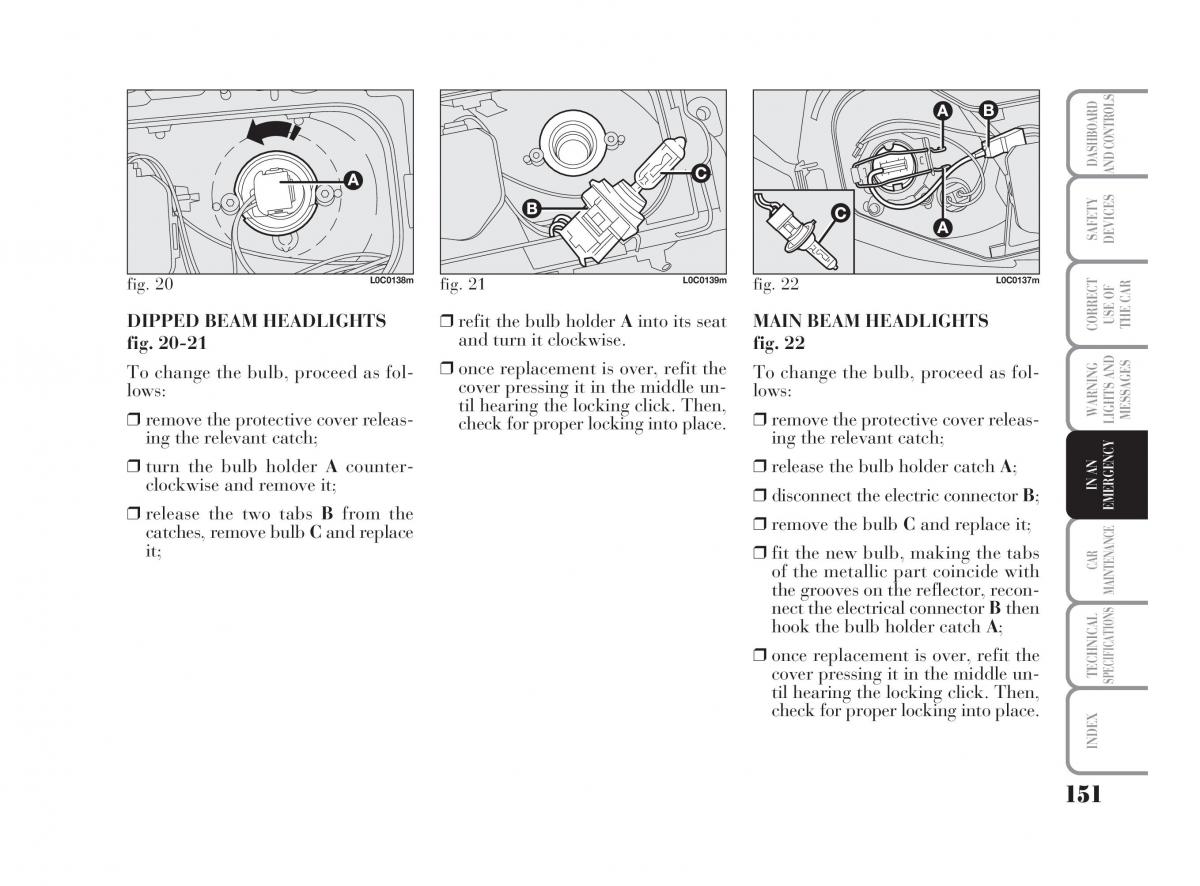

135-164 Ypsilon GB 13-10-2008 11:42 Pagina 151
DASHBOARDAND CONTROLS
SAFETYDEVICES
fig. 20 L0C0138m fig. 21 L0C0139m fig. 22 L0C0137m
DIPPED BEAM HEADLIGHTS ❒refit the bulb holder Ainto its seat MAIN BEAM HEADLIGHTS CORRECTUSE OF THE CAR
fig. 20-21 and turn it clockwise. fig. 22
❒once replacement is over, refit the
To change the bulb, proceed as fol- To change the bulb, proceed as fol-
lows: cover pressing it in the middle un- lows:
til hearing the locking click. Then, WARNINGMESSAGES
❒remove the protective cover releas- check for proper locking into place. ❒remove the protective cover releas- LIGHTS AND
ing the relevant catch; ing the relevant catch;
❒turn the bulb holder A counter- ❒release the bulb holder catch A;
clockwise and remove it; ❒disconnect the electric connector B; IN AN
❒release the two tabs B from the EMERGENCY
catches, remove bulb Cand replace ❒remove the bulb C and replace it;
it; ❒fit the new bulb, making the tabs
CAR
of the metallic part coincide with
the grooves on the reflector, recon- MAINTENANCE
nect the electrical connector Bthen
hook the bulb holder catch A;
❒once replacement is over, refit the
cover pressing it in the middle un- TECHNICALSPECIFICATIONS
til hearing the locking click. Then,
check for proper locking into place.
INDEX
151
