Safety

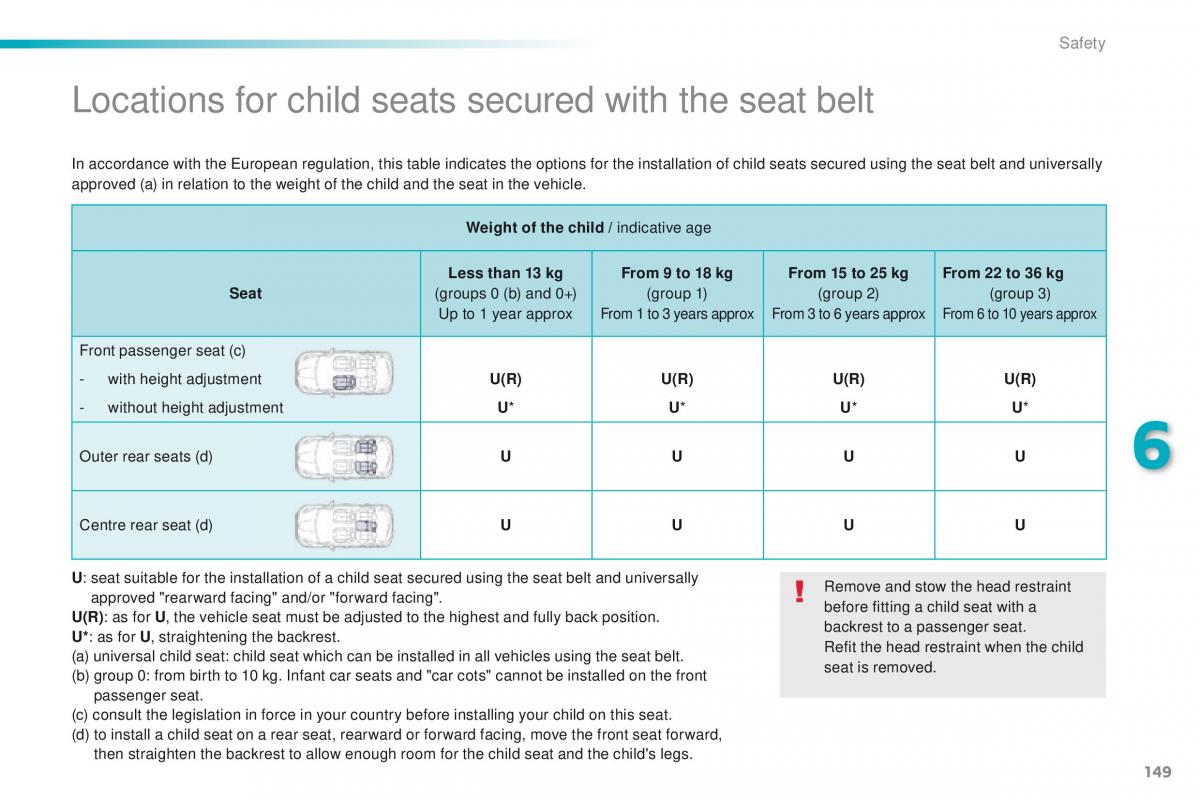

Locations for child seats secured with the seat belt
In accordance with the european regulation, this table indicates the options for the installation of child seats secured using the seat belt and universally
approved (a) in relation to the weight of the child and the seat in the vehicle.
Weight of the child / indicative age
Less than 13 kg From 9 to 18 kg From 15 to 25 kg From 22 to 36 kg
Seat (groups 0 (b) and 0+) (group 1)(group 2)(group 3)
up to 1 year approxFrom 1 to 3 years approxFrom 3 to 6 years approxFrom 6 to 10 years approx
Front passenger seat (c)
- with height adjustment U(R) U(R) U(R) U(R)
- without height adjustment U* U* U* U*
Outer rear seats (d) U U U U 6
Centre rear seat (d) U U U U
U: seat suitable for the installation of a child seat secured using the seat belt and universally Remove and stow the head restraint
approved "rearward facing" and/or "forward facing".before fitting a child seat with a
U(R): as for U, the vehicle seat must be adjusted to the highest and fully back position.backrest to a passenger seat.
U*: as for U, straightening the backrest. Refit the head restraint when the child
(a) universal child seat: child seat which can be installed in all vehicles using the seat belt.seat is removed.
(b) group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front
passenger seat.
(c) consult the legislation in force in your country before installing your child on this seat.
(d) to install a child seat on a rear seat, rearward or forward facing, move the front seat forward,
then straighten the backrest to allow enough room for the child seat and the child's legs.
149
