owners manual Volvo S80

owners manual Volvo S80 - year of production: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 - volvo S80 II 2 owners manual EN

Document: pdf (12.78 MB) 326 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Volvo S80, year of production 2006 - 2015:

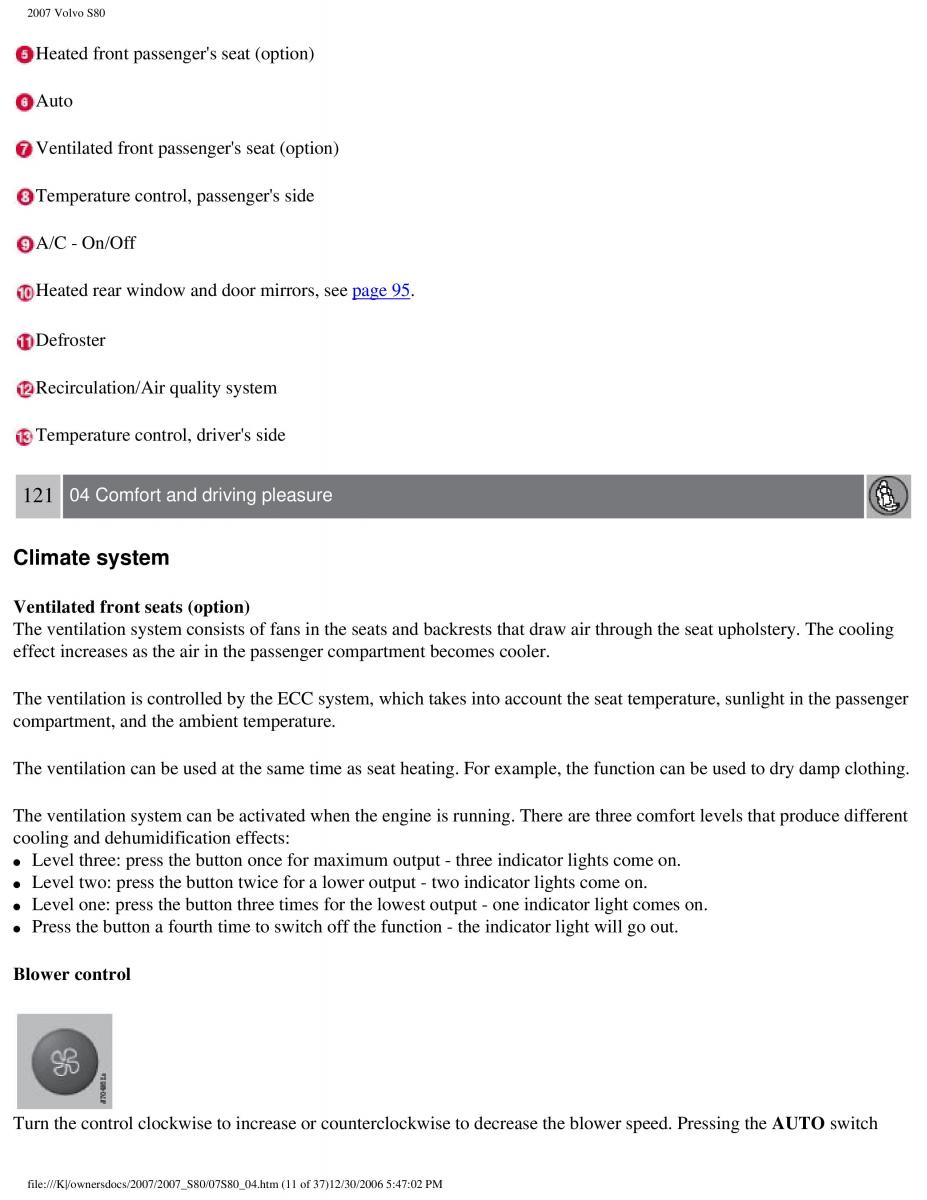

2007 Volvo S80 Heated front passenger's seat (option) Auto Ventilated front passenger's seat (option) Temperature control, passenger's side A/C - On/Off Heated rear window and door mirrors, see page 95. Defroster Recirculation/Air quality system Temperature control, driver's side 121 04 Comfort and driving pleasure Climate system Ventilated front seats (option) The ventilation system consists of fans in the seats and backrests that draw air through the seat upholstery. The cooling effect increases as the air in the passenger compartment becomes cooler. The ventilation is controlled by the ECC system, which takes into account the seat temperature, sunlight in the passenger compartment, and the ambient temperature. The ventilation can be used at the same time as seat heating. For example, the function can be used to dry damp clothing. The ventilation system can be activated when the engine is running. There are three comfort levels that produce different cooling and dehumidification effects: ● Level three: press the button once for maximum output - three indicator lights come on. ● Level two: press the button twice for a lower output - two indicator lights come on. ● Level one: press the button three times for the lowest output - one indicator light comes on. ● Press the button a fourth time to switch off the function - the indicator light will go out. Blower control Turn the control clockwise to increase or counterclockwise to decrease the blower speed. Pressing the AUTO switch file:///K|/ownersdocs/2007/2007_S80/07S80_04.htm (11 of 37)12/30/2006 5:47:02 PM
