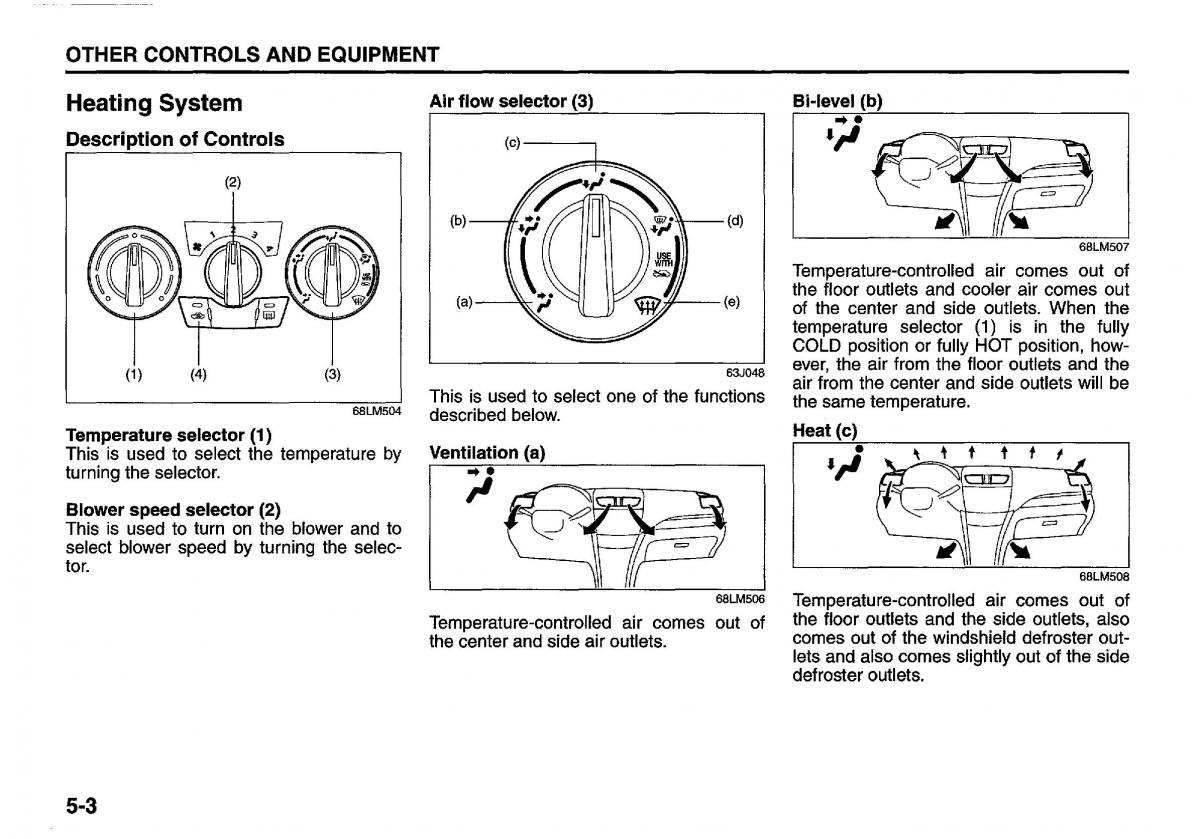

OTHER CONTROLS AND EQUIPMENT
Heating System Air flow selector (3) Bi-Ievel (b)
Description of Controls (c)------.
(2)
(b) (d)
68LM507
Temperature-controlled air comes out of
(a) (e) the floor outlets and cooler air comes out
of the center and side outlets. When the
temperature selector (1) is in the fully
COLD position or fully HOT position, how-
(1) (4) (3) 63J048 ever, the air from the floor outlets and the
This is used to select one of the functions air from the center and side outlets will be
68LM504 described below. the same temperature.
Temperature selector (1) Heat (c)
This is used to select the temperature by Ventilation (a)
turning the selector.
Blower speed selector (2)
This is used to turn on the blower and to
select blower speed by turning the selec-
tor. 68LM508
68LM506 Temperature-controlled air comes out of
Temperature-controlled air comes out of the floor outlets and the side outlets, also
the center and side air outlets. comes out of the windshield defroster out-
lets and also comes slightly out of the side
defroster outlets.
5-3
