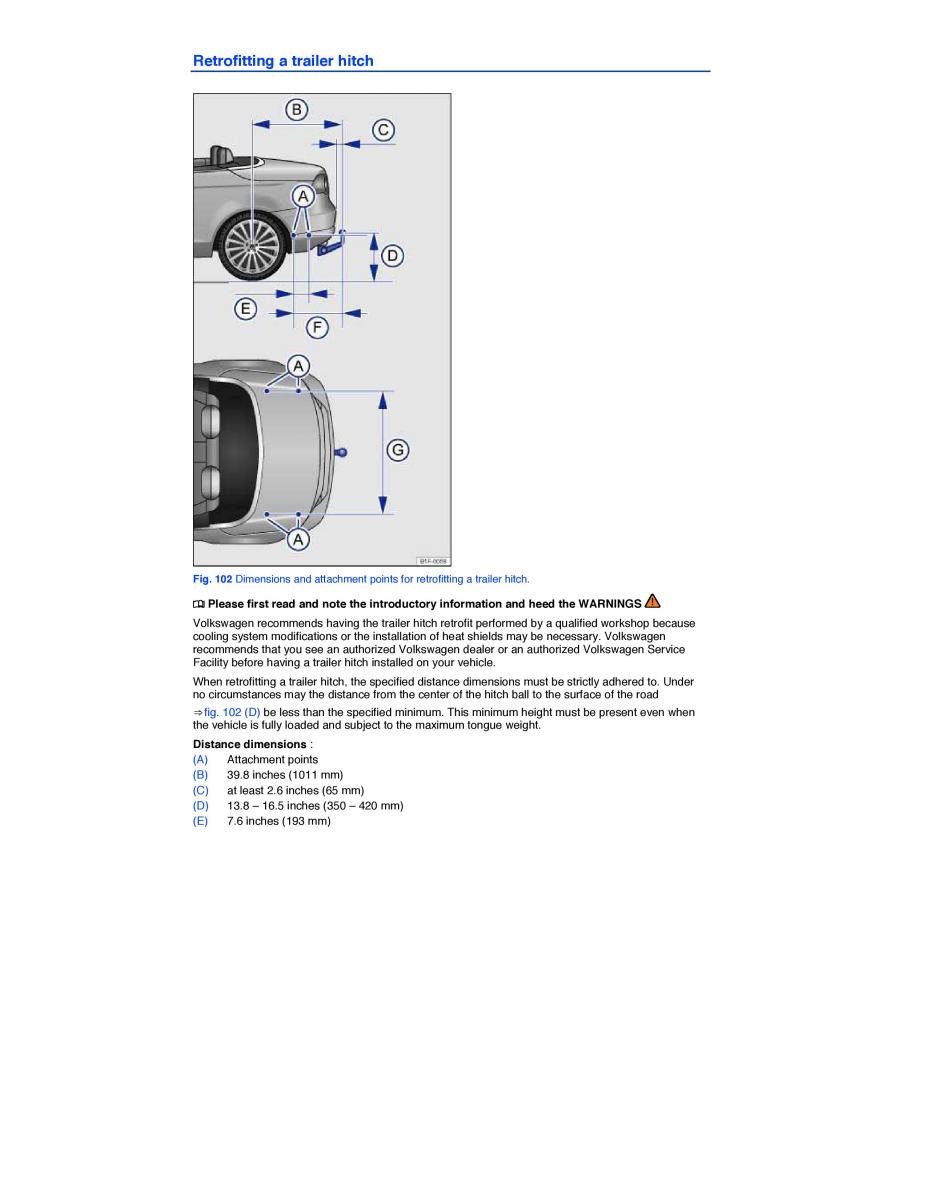

Retrofitting a trailer hitch Fig. 102 Dimensions and attachment points for retrofitting a trailer hitch. ¤ Please first read and note the introductory information and heed the WARNINGS Volkswagen recommends having the trailer hitch retrofit performed by a qualified workshop because cooling system modifications or the installation of heat shields may be necessary. Volkswagen recommends that you see an authorized Volkswagen dealer or an authorized Volkswagen Service Facility before having a trailer hitch installed on your vehicle. When retrofitting a trailer hitch, the specified distance dimensions must be strictly adhered to. Under no circumstances may the distance from the center of the hitch ball to the surface of the road ⇒ fig. 102 (D) be less than the specified minimum. This minimum height must be present even when the vehicle is fully loaded and subject to the maximum tongue weight. Distance dimensions : (A) Attachment points (B) 39.8 inches (1011 mm) (C) at least 2.6 inches (65 mm) (D) 13.8 – 16.5 inches (350 – 420 mm) (E) 7.6 inches (193 mm)
