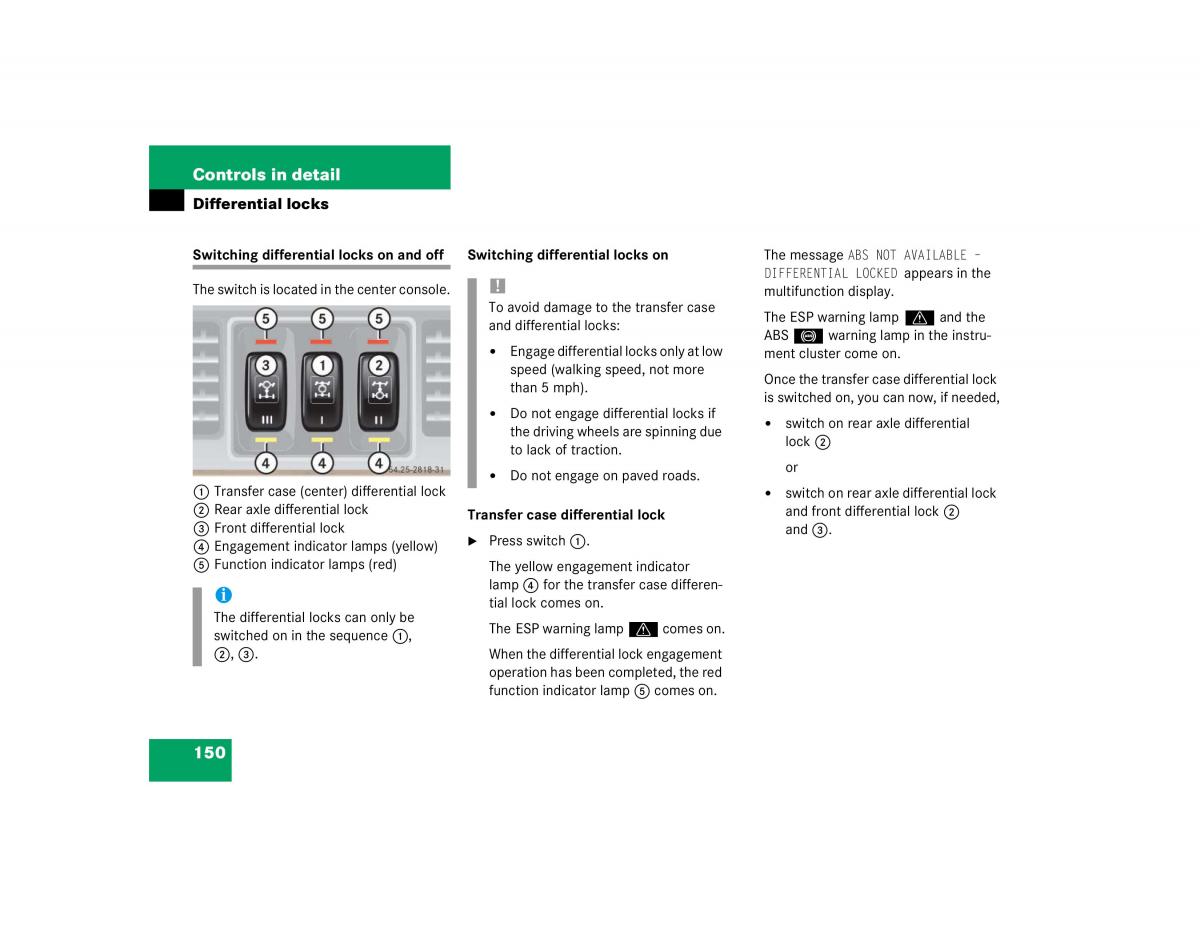

text version of content this owner's manual page from owners manual to the vehicle Mercedes G, year of production 2004:

Controls in detail Differential locks Switching differential locks on and offSwitching differential locks onThe message ABS NOT AVAILABLE DIFFERENTIAL LOCKED appears in the The switch is located in the center console.! multifunction display. To avoid damage to the transfer case The ESP warning lamp v and the and differential locks: ABS- warning lamp in the instru- Engage differential locks only at low ment cluster come on. speed (walking speed, not more Once the transfer case differential lock than 5 mph). is switched on, you can now, if needed, Do not engage differential locks if switch on rear axle differential the driving wheels are spinning due lock 2 to lack of traction. Do not engage on paved roads. or 1Transfer case (center) differential lock switch on rear axle differential lock 2Rear axle differential lock Transfer case differential lock and front differential lock 2 3Front differential lock Press switch 1. and3. 4Engagement indicator lamps (yellow) 5Function indicator lamps (red) The yellow engagement indicator i lamp 4 for the transfer case differen- tial lock comes on. The differential locks can only be The ESP warning lamp v comes on. switched on in the sequence 1, 2,3. When the differential lock engagement operation has been completed, the red function indicator lamp5 comes on. 150
