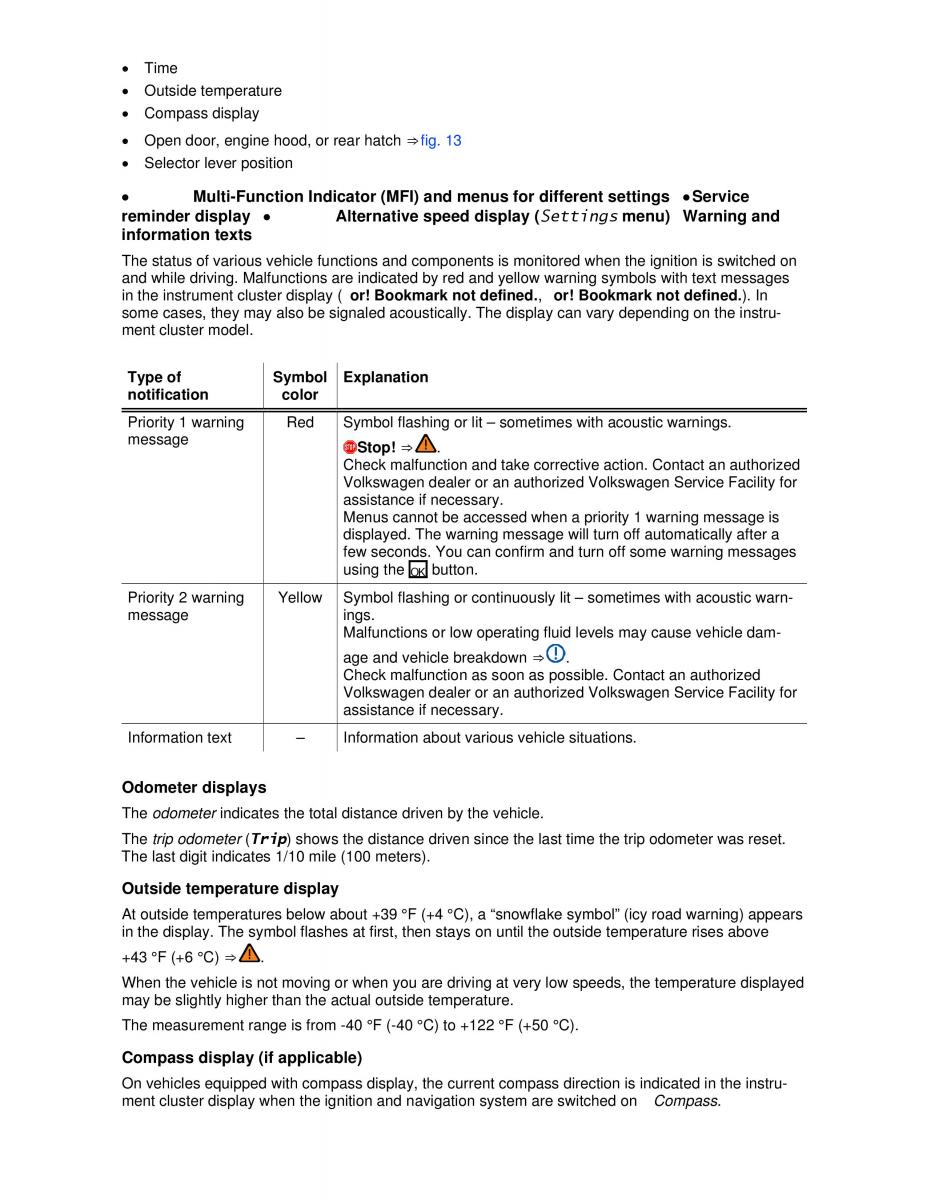

x Time
x Outside temperature
x Compass display
x Open door, engine hood, or rear hatch⇒ fig. 13
x Selector lever position
x Multi-Function Indicator (MFI) and menus for different s ext Stienrgvsic e
reminder display x Alternative speed dSeisptltiayng (s menu) Warning and
information texts
The status of various vehicle functions and components is monitored when the ignition is switched on
and while driving. Malfunctions are indicated by red and yellow warning symbols with text messages
in the instrument cluster display ( or! Bookmark not defined., or! Bookmark not defined.). In
some cases, they may also be signaled acoustically. The display can vary depending on the instru-
ment cluster model.
Type of Symbol Explanation
notification color
Priority 1 warning Red Symbol flashing or lit – sometimes with acoustic warnings.
message Stop! ⇒ .
Check malfunction and take corrective action. Contact an authorized
Volkswagen dealer or an authorized Volkswagen Service Facility for
assistance if necessary.
Menus cannot be accessed when a priority 1 warning message is
displayed. The warning message will turn off automatically after a
few seconds. You can confirm and turn off some warning messages
using the OK button.
Priority 2 warning Yellow Symbol flashing or continuously lit – sometimes with acoustic warn-
message ings.
Malfunctions or low operating fluid levels may cause vehicle dam-
age and vehicle breakdown ⇒ .
Check malfunction as soon as possible. Contact an authorized
Volkswagen dealer or an authorized Volkswagen Service Facility for
assistance if necessary.
Information text – Information about various vehicle situations.
Odometer displays
The odometer indicates the total distance driven by the vehicle.
The trip odometer (Trip) shows the distance driven since the last time the trip odometer was reset.
The last digit indicates 1/10 mile (100 meters).
Outside temperature display
At outside temperatures below about +39 °F (+4 °C), a “snowflake symbol” (icy road warning) appears
in the display. The symbol flashes at first, then stays on until the outside temperature rises above
+43 °F (+6 °C) ⇒ .
When the vehicle is not moving or when you are driving at very low speeds, the temperature displayed
may be slightly higher than the actual outside temperature.
The measurement range is from -40 °F (-40 °C) to +122 °F (+50 °C).
Compass display (if applicable)
On vehicles equipped with compass display, the current compass direction is indicated in the instru-
ment cluster display when the ignition and navigation system are switched on Compass.
