text version of content this owner's manual page from owners manual to the vehicle Skoda Octavia, year of production 2004 - 2013:

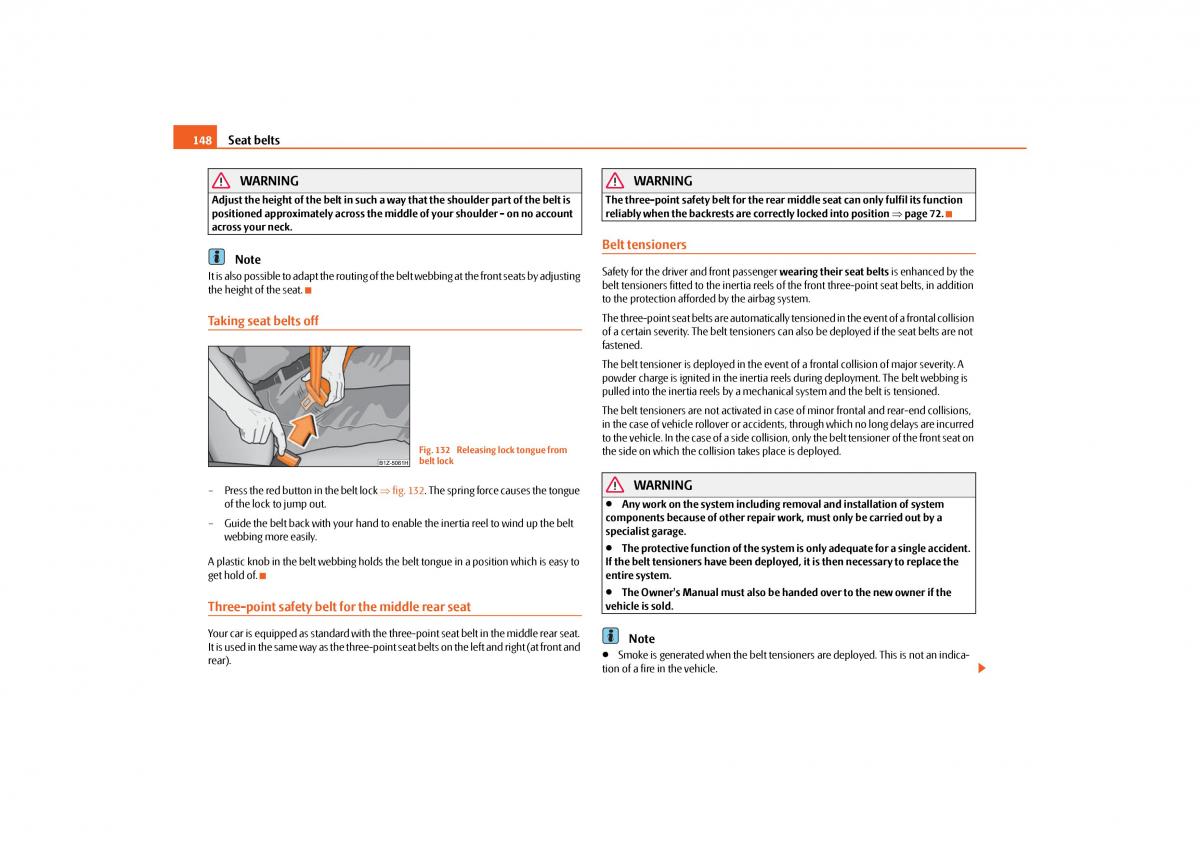

s43s.1.book Page 148 Thursday, May 13, 2010 1:21 PM 148 Seat belts WARNING WARNING Adjust the height of the belt in such a way that the shoulder part of the belt is The three-point safety belt for the rear middle seat can only fulfil its function positioned approximately across the middle of your shoulder - on no account reliably when the backrests are correctly locked into position page72. across your neck. Belt tensioners Note It is also possible to adapt the routing of the belt webbing at the front seats by adjusting Safety for the driver and front passenger wearing their seat belts is enhanced by the the height of the seat. belt tensioners fitted to the inertia reels of the front three-point seat belts, in addition to the protection afforded by the airbag system. Taking seat belts off The three-point seat belts are automatically tensioned in the event of a frontal collision of a certain severity. The belt tensioners can also be deployed if the seat belts are not fastened. The belt tensioner is deployed in the event of a frontal collision of major severity. A powder charge is ignited in the inertia reels during deployment. The belt webbing is pulled into the inertia reels by a mechanical system and the belt is tensioned. The belt tensioners are not activated in case of minor frontal and rear-end collisions, in the case of vehicle rollover or accidents, through which no long delays are incurred to the vehicle. In the case of a side collision, only the belt tensioner of the front seat on Fig. 132 Releasing lock tongue from the side on which the collision takes place is deployed. belt lock – Press the red button in the belt lock  fig. 132. The spring force causes the tongue WARNING of the lock to jump out.  Any work on the system including removal and installation of system – Guide the belt back with your hand to enable the inertia reel to wind up the belt components because of other repair work, must only be carried out by a webbing more easily. specialist garage.  The protective function of the system is only adequate for a single accident. A plastic knob in the belt webbing holds the belt tongue in a position which is easy to If the belt tensioners have been deployed, it is then necessary to replace the get hold of. entire system.  The Owner's Manual must also be handed over to the new owner if the Three-point safety belt for the middle rear seatvehicle is sold. Your car is equipped as standard with the three-point seat belt in the middle rear seat. Note It is used in the same way as the three-point seat belts on the left and right (at front and  Smoke is generated when the belt tensioners are deployed. This is not an indica- rear). tion of a fire in the vehicle.
