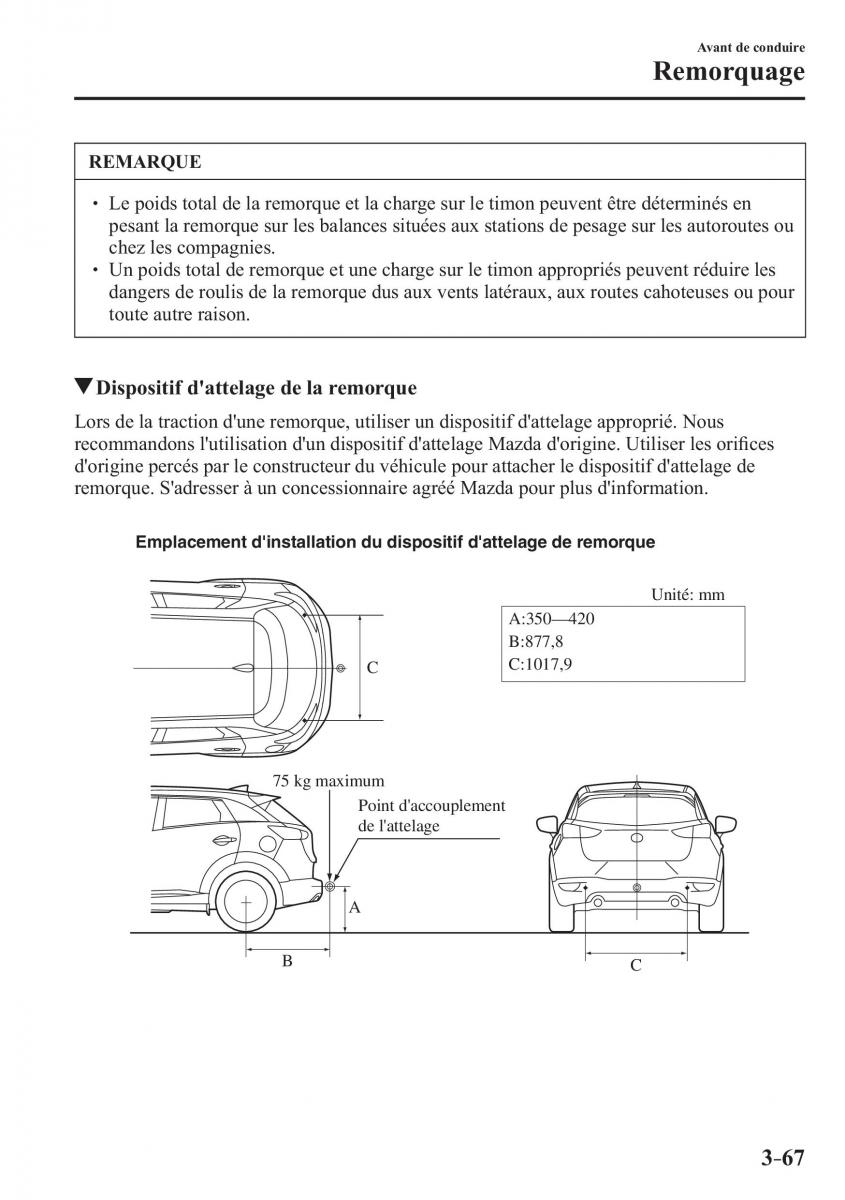

Avant de conduire
Remorquage
REMARQUE
Le poids total de la remorque et la charge sur le timon peuvent être déterminés en
pesant la remorque sur les balances situées aux stations de pesage sur les autoroutes ou
chez les compagnies.
Un poids total de remorque et une charge sur le timon appropriés peuvent réduire les
dangers de roulis de la remorque dus aux vents latéraux, aux routes cahoteuses ou pour
toute autre raison.
Dispositif d'attelage de la remorque
Lors de la traction d'une remorque, utiliser un dispositif d'attelage approprié. Nous
recommandons l'utilisation d'un dispositif d'attelage Mazda d'origine. Utiliser les orifi ces
d'origine percés par le constructeur du véhicule pour attacher le dispositif d'attelage de
remorque. S'adresser à un concessionnaire agréé Mazda pour plus d'information.
Emplacement d'installation du dispositif d'attelage de remorque
Unité: mm
A:350—420
B:877,8
C C:1017,9
75 kg maximum
Point d'accouplement
de l'attelage
A
B C
3–67
