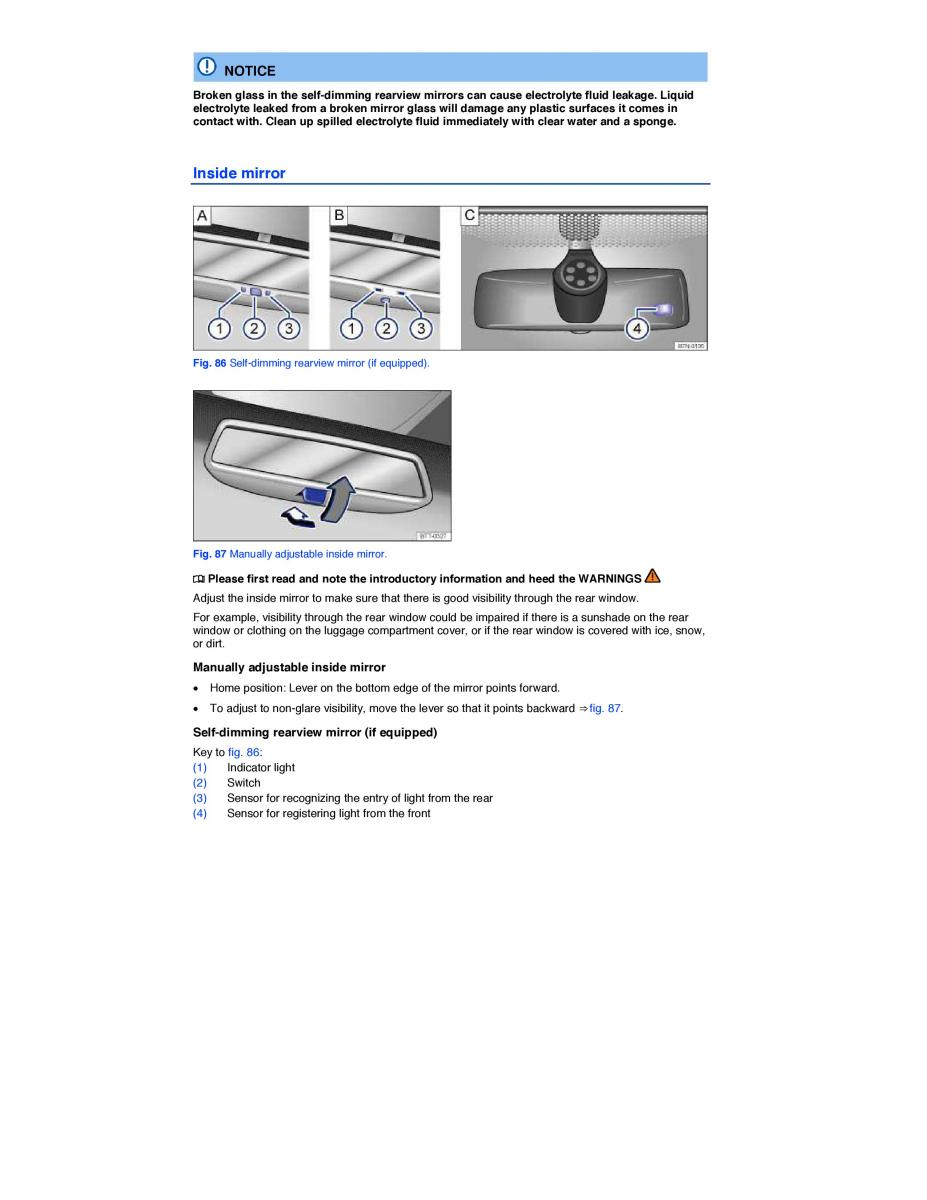

NOTICE Broken glass in the self-dimming rearview mirrors can cause electrolyte fluid leakage. Liquid electrolyte leaked from a broken mirror glass will damage any plastic surfaces it comes in contact with. Clean up spilled electrolyte fluid immediately with clear water and a sponge. Inside mirror Fig. 86 Self-dimming rearview mirror (if equipped). Fig. 87 Manually adjustable inside mirror. ¤ Please first read and note the introductory information and heed the WARNINGS Adjust the inside mirror to make sure that there is good visibility through the rear window. For example, visibility through the rear window could be impaired if there is a sunshade on the rear window or clothing on the luggage compartment cover, or if the rear window is covered with ice, snow, or dirt. Manually adjustable inside mirror x Home position: Lever on the bottom edge of the mirror points forward. x To adjust to non-glare visibility, move the lever so that it points backward⇒ fig. 87. Self-dimming rearview mirror (if equipped) Key to fig. 86: (1) Indicator light (2) Switch (3) Sensor for recognizing the entry of light from the rear (4) Sensor for registering light from the front
