text version of content this owner's manual page from owners manual to the vehicle Peugeot 5008, year of production 2009:

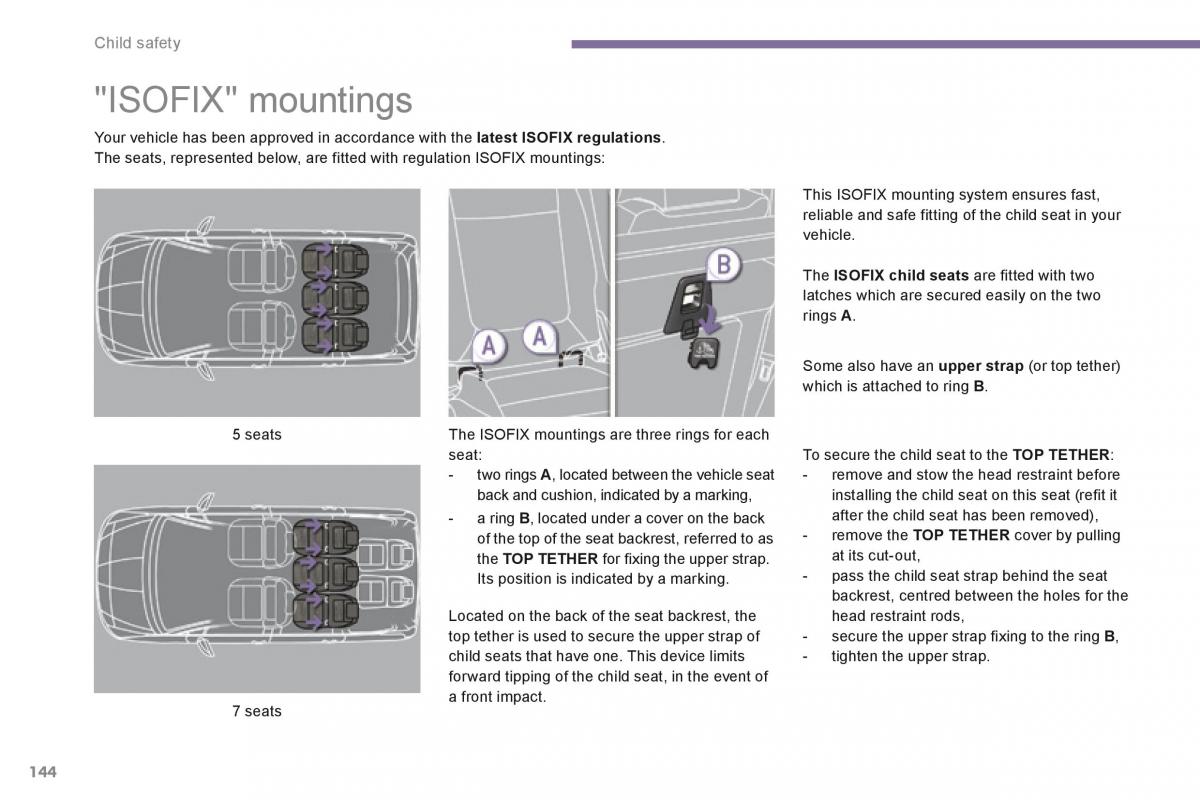

Child safety " ISOFIX" mountings Y our vehicle has been approved in accordance with the latest ISOFIX regulations . The seats, represented below, are fitted with regulation ISOFIX mountings: T his ISOFIX mounting system ensures fast, reliable and safe fitting of the child seat in your vehicle. The I SOFIX child seats are fitted with two latches which are secured easily on the two rings A . Some also have an upper strap (or top tether) which is attached to ring B . 5 seats T he ISOFIX mountings are three rings for each seat: T o secure the child seat to the TOP TETHER : - two rings A , located between the vehicle seat - remove and stow the head restraint before back and cushion, indicated by a marking, installing the child seat on this seat (refit it - a ring B , located under a cover on the back after the child seat has been removed), of the top of the seat backrest, referred to as - remove the TOP TETHER cover by pulling the TTTOOOP TP TP TEEETTTHHHEEERRR ffoor fr fiixxiinng tg thhe ue uppppeer sr sttrraapp at its cut-out, Its position is indicated by a marking. - pass the child seat strap behind the seat backrest, centred between the holes for the Located on the back of the seat backrest, the head restraint rods, top tether is used to secure the upper strap of - secure the upper strap fixing to the ring B , child seats that have one. This device limits - tighten the upper strap. forward tipping of the child seat, in the event of 7 seats a front impact. 144
