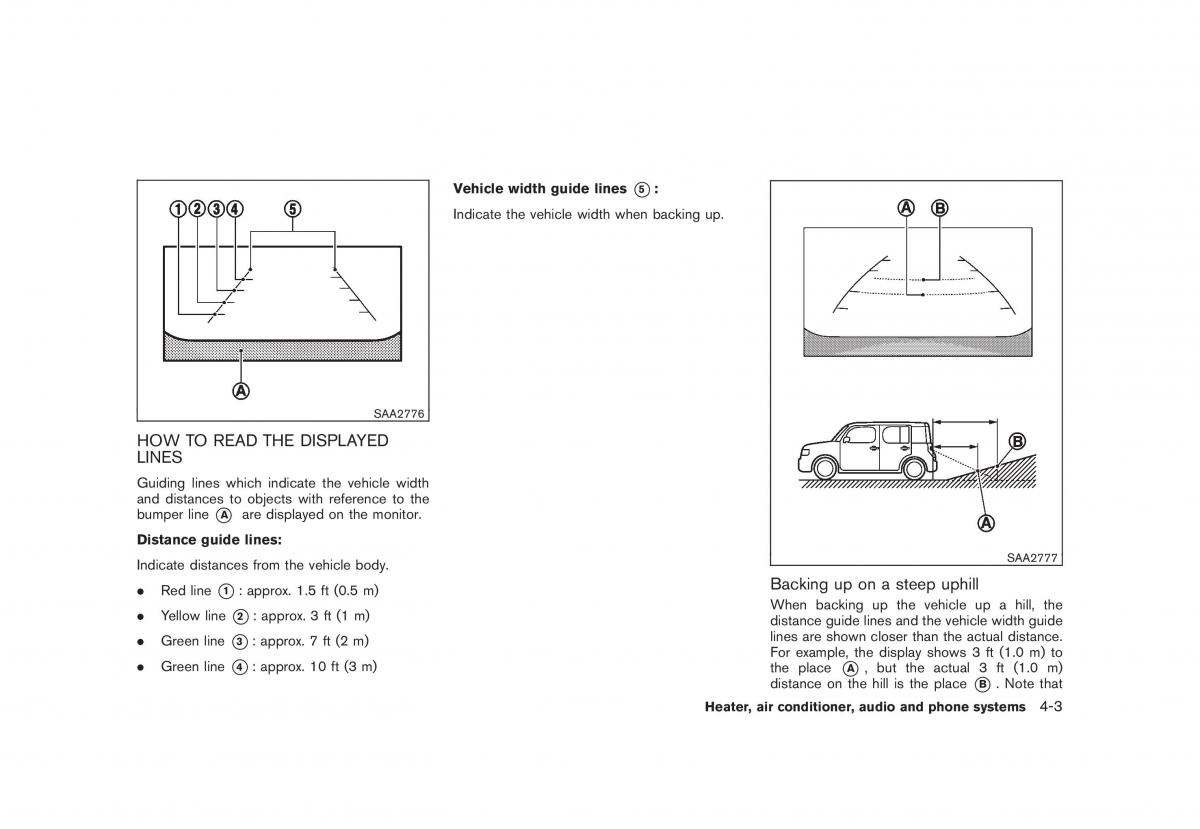

Black plate (149,1)
Vehicle width guide lines 5 :
*
Indicate the vehicle width when backing up.
SAA2776
HOWTOREADTHEDISPLAYED
LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line A are displayed on the monitor.
*
Distance guide lines:
Indicate distances from the vehicle body. SAA2777
. Red line 1 : approx. 1.5 ft (0.5 m) Backing up on a steep uphill
*
When backing up the vehicle up a hill, the
. Yellow line 2 : approx. 3 ft (1 m)
* distance guide lines and the vehicle width guide
. Green line 3 : approx. 7 ft (2 m) lines are shown closer than the actual distance.
* For example, the display shows 3 ft (1.0 m) to
. Green line 4 : approx. 10 ft (3 m) the placeA , but the actual 3 ft (1.0 m)
* *
distance on the hill is the placeB . Note that
*
Heater, air conditioner, audio and phone systems 4-3
Model "Z12-D" EDITED: 2009/ 9/ 17
