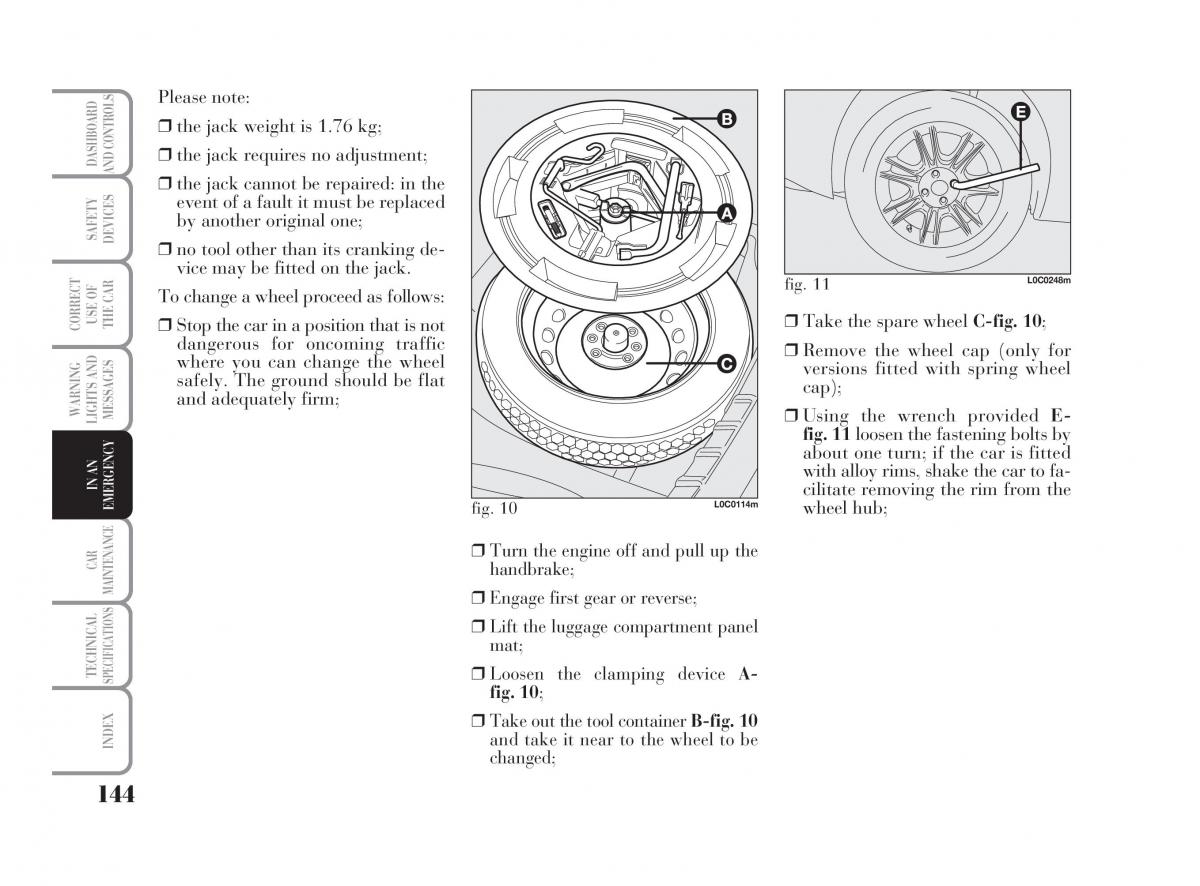

135-164 Ypsilon GB 13-10-2008 11:42 Pagina 144
Please note:
❒the jack weight is 1.76 kg;
DASHBOARD❒the jack requires no adjustment;
AND CONTROLS❒the jack cannot be repaired: in the
event of a fault it must be replaced
by another original one;
SAFETYDEVICES❒no tool other than its cranking de-
vice may be fitted on the jack.
fig. 11 L0C0248m
To change a wheel proceed as follows:
CORRECTUSE OF THE CAR❒Stop the car in a position that is not ❒Take the spare wheel C-fig. 10;
dangerous for oncoming traffic
where you can change the wheel ❒Remove the wheel cap (only for
safely. The ground should be flat versions fitted with spring wheel
and adequately firm; cap);
WARNINGLIGHTS ANDMESSAGES ❒Using the wrench provided E-
fig. 11 loosen the fastening bolts by
about one turn; if the car is fitted
with alloy rims, shake the car to fa-
IN AN cilitate removing the rim from the
EMERGENCY fig. 10 L0C0114m wheel hub;
❒Turn the engine off and pull up the
CAR handbrake;
MAINTENANCE ❒Engage first gear or reverse;
❒Lift the luggage compartment panel
mat;
TECHNICALSPECIFICATIONS ❒Loosen the clamping device A-
fig. 10;
❒Take out the tool container B-fig. 10
INDEX and take it near to the wheel to be
changed;
144
