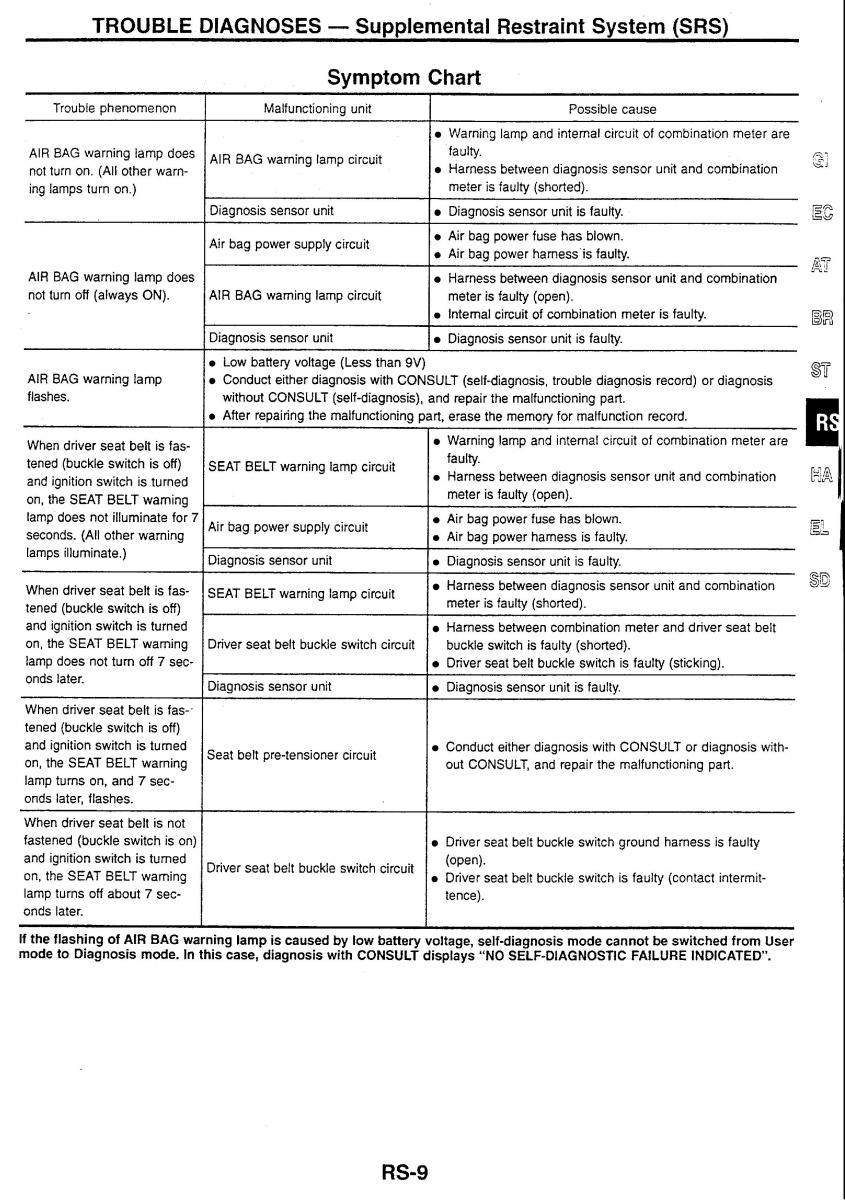

TROUBLE DIAGNOSES - Supplemental Restraint System (SRS) Symptom Chart Trouble phenomenon I Malfunctioning unit I Possible cause I I Warning lamp and internal circuit of combination meter are BAG warning lamp does AIR BAG warning lamp circuit faulty. P-$ ; not turn on. (All other warn- Harness between diagnosis sensor unit and combination 'bJ ing lamps turn on.) meter is faulty (shorted). Diagnosis sensor unit Diagnosis sensor unit is faulty. Air bag power supply circuit 0 Air bag power fuse has blown. 0 Air bag power harness is faulty. I23 AIR BAG warning lamp does I I Harness between diagnosis sensor unit and combination L-L not turn off (always ON). (AIR BAG warning lamp circuit I meter is faulty (open). 0 Internal circuit of combination meter is faulty. BR Diagnosis sensor unit Diagnosis sensor unit is faulty. Low battery voltage (Less than 9V) ST AIR BAG warning lamp Conduct either diagnosis with CONSULT (self-diagnosis, trouble diagnosis record) or diagnosis flashes. without CONSULT (self-diagnosis), and repair the malfunctioning part. After repairing the malfunctioning part, erase the memory for malfunction record. When driver seat belt is fas- Warning lamp and internal circuit of combination meter are 1 tened(buckleswitchisoff) faulty. SEATBELTwarninglampcircuit and ignition switch is turned Harness between diagnosis sensor unit and combination HA on, the SEAT BELT warning meter is faulty (open). lamp does not illuminate for 1 Air bag power circuit Air bag power fuse has blown. seconds. (All other warning 0 Air bag power harness is faulty. lamps illuminate.) -. Diagnosis sensor unit 0 Diagnosis sensor unit is faulty. fa> When driver seat belt is fas- SEAT BELT warning lamp circuit Harness between diagnosis sensor unit and combination su tened (buckle switch is off) meter is faulty (shorted). , and ignition switch is turned Harness between combination meter and driver seat belt on, the SEAT BELT warning Driver seat belt buckle switch circuit buckle switch is faulty (shorted). lamp does not turn off 7 sec- Driver seat belt buckle switch is faulty (sticking). onds later. Diagnosis sensor unit Diaqnosis sensor unit is faultv. When driver seat belt is fas-. I I tened (buckle switch is off) I I and ignition switch is turned Seat belt pre-tensioner circuit Conduct either diagnosis with CONSULT or diagnosis with- on, the SEAT BELT warning out CONSULT, and repair the malfunctioning part. lamp turns on, and 7 sec- I I onds later, flashes. When driver seat belt is not fastened (buckle switch is on) I I Driver seat belt buckle switch ground harness is faulty and ignition switch is tumed Driver seat belt buckle switch circuit on, the SEAT BELT warning I !::);eat belt buckle switch is faulty (contact intermit- lamp turns off about 7 sec- tence). onds later. If the flashing of AIR BAG warning lamp is caused by low battery voltage, self-diagnosis mode cannot be switched from User mode to Diagnosis mode. In this case, diagnosis with CONSULT displays "NO SELF-DIAGNOSTIC FAILURE INDICATED".
