text version of content this owner's manual page from owners manual to the vehicle Citroen C6, year of production 2005 - 2012:

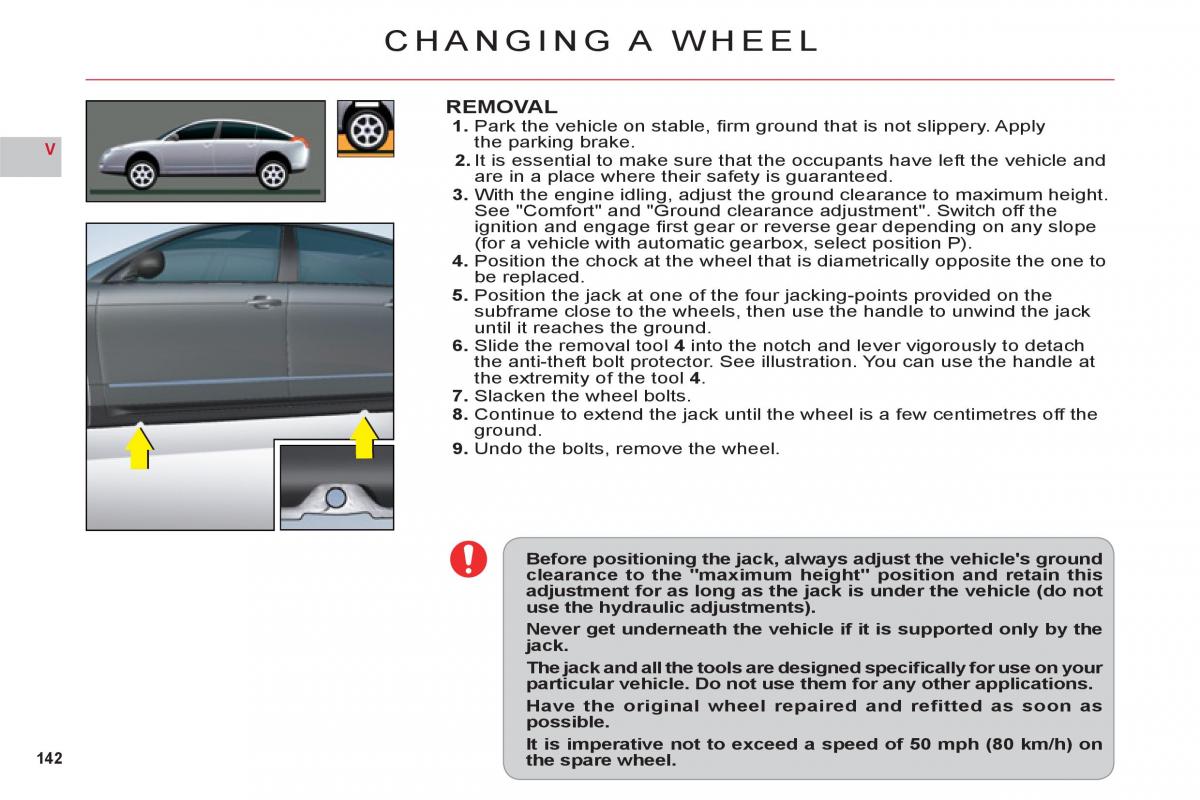

CHANGING A WHEEL
REMOVAL
1. Park the vehicle on stable, fi rm ground that is not slippery. Apply
V the parking brake.
2. It is essential to make sure that the occupants have left the vehicle and
are in a place where their safety is guaranteed.
3. With the engine idling, adjust the ground clearance to maximum height.
See "Comfort" and "Ground clearance adjustment". Switch off the
ignition and engage fi rst gear or reverse gear depending on any slope
(for a vehicle with automatic gearbox, select position P).
4. Position the chock at the wheel that is diametrically opposite the one to
be replaced.
5. Position the jack at one of the four jacking-points provided on the
subframe close to the wheels, then use the handle to unwind the jack
until it reaches the ground.
6. Slide the removal tool 4 into the notch and lever vigorously to detach
the anti-theft bolt protector. See illustration. You can use the handle at
the extremity of the tool 4.
7. Slacken the wheel bolts.
8. Continue to extend the jack until the wheel is a few centimetres off the
ground.
9. Undo the bolts, remove the wheel.
Before positioning the jack, alwa ys adjust the vehicle's ground
clearance to the "maximum height" position and retain this
adjustment for as long as the jack is under the vehicle (do not
use the h ydraulic adjustments ).
Never get underneath the vehicle if it is supported only by the
jack.
The jack and all the tools are designed specifi cally for use on your
particular vehicle. Do not use them for any other applications.
Have the original wheel repaired and refitted as soon as
possible .
142 It is imperative not to exceed a speed of 50 mph (80 km/h) on
the spare wheel.
