text version of content this owner's manual page from owners manual to the vehicle Subaru Forester, year of production 2002 - 2008:

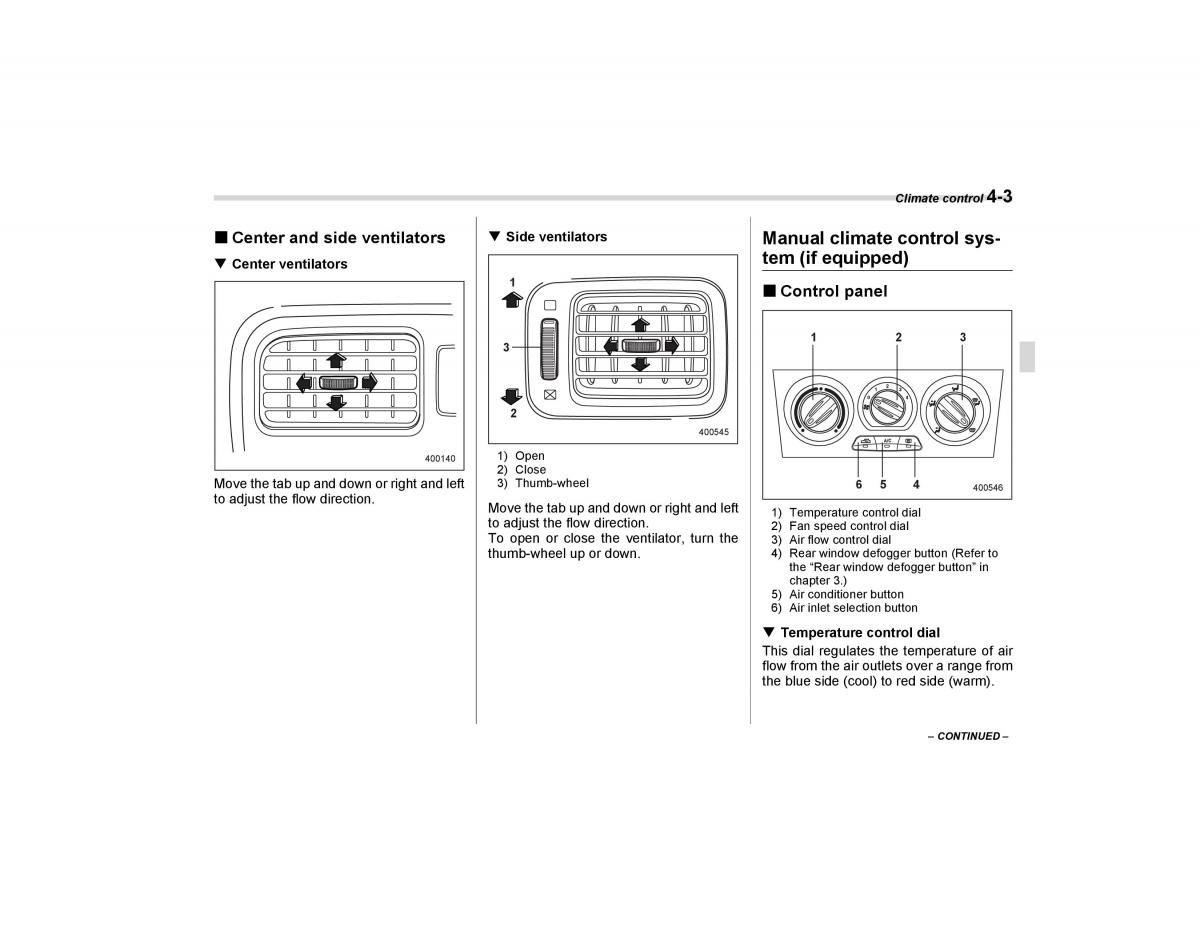

Climate control 4-3
Center and side ventilators Side ventilators Manual climate control sys-
Center ventilators tem (if equipped)
1 Control panel
3 1 2 3
2
400545
400140 1) Open
2) Close
Move the tab up and down or right and left3) Thumb-wheel 6 5 4 400546
to adjust the flow direction. Move the tab up and down or right and left
to adjust the flow direction. 1) Temperature control dial
To open or close the ventilator, turn the 2) Fan speed control dial
3) Air flow control dial
thumb-wheel up or down. 4) Rear window defogger button (Refer to
the Rear window defogger button in
chapter 3.)
5) Air conditioner button
6) Air inlet selection button
Temperature control dial
This dial regulates the temperature of air
flow from the air outlets over a range from
the blue side (cool) to red side (warm).
CONTINUED
