owners manual Ford Fiesta

all ratings: 0 average rating: 5

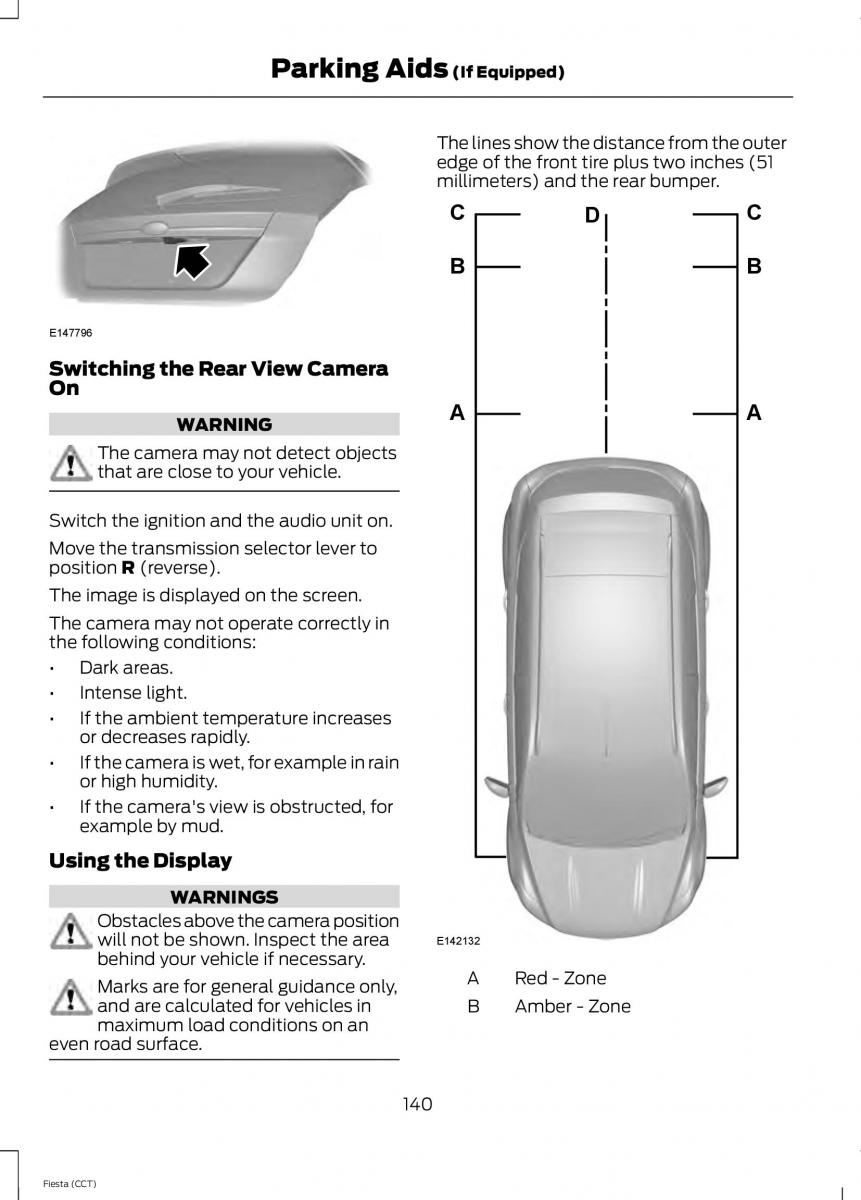

Parking Aids (If Equipped) The lines show the distance from the outer edge of the front tire plus two inches (51 millimeters) and the rear bumper. C D C B B E147796 Switching the Rear View Camera On WARNING A A The camera may not detect objects that are close to your vehicle. Switch the ignition and the audio unit on. Move the transmission selector lever to position R (reverse). The image is displayed on the screen. The camera may not operate correctly in the following conditions: • Dark areas. • Intense light. • If the ambient temperature increases or decreases rapidly. • If the camera is wet, for example in rain or high humidity. • If the camera's view is obstructed, for example by mud. Using the Display WARNINGS Obstacles above the camera position will not be shown. Inspect the area E142132 behind your vehicle if necessary. Marks are for general guidance only, A Red - Zone and are calculated for vehicles in B Amber - Zone maximum load conditions on an even road surface. 140 Fiesta (CCT)
