text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147 GTA, year of production 2000 - 2010:

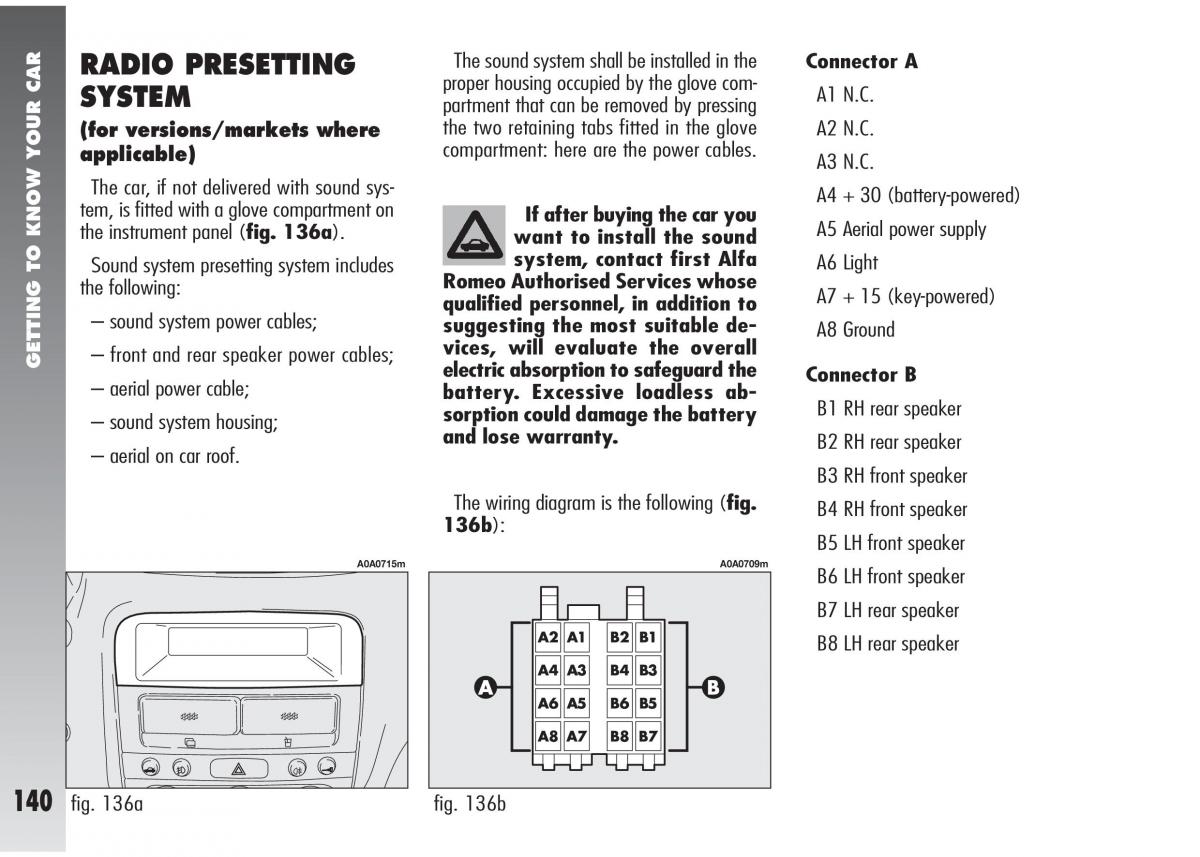

RADIO PRESETTING The sound system shall be installed in the Connector A SYSTEM proper housing occupied by the glove com- A1 N.C. partment that can be removed by pressing the two retaining tabs fitted in the glove (for versions/markets where A2 N.C. applicable) compartment: here are the power cables. A3 N.C. The car, if not delivered with sound sys- A4 + 30 (battery-powered) tem, is fitted with a glove compartment on If after buying the car you the instrument panel ( fig. 136a ). A5 Aerial power supply want to install the sound system, contact first Alfa Sound system presetting system includes A6 Light the following: Romeo Authorised Services whose A7 + 15 (key-powered) – sound system power cables; qualified personnel, in addition to suggesting the most suitable de- A8 Ground vices, will evaluate the overall – front and rear speaker power cables; GETTING TO KNOW YOUR CAR electric absorption to safeguard the Connector B – aerial power cable; battery. Excessive loadless ab- – sound system housing; sorption could damage the battery B1 RH rear speaker and lose warranty. B2 RH rear speaker – aerial on car roof. B3 RH front speaker The wiring diagram is the following (fig. B4 RH front speaker 136b): B5 LH front speaker A0A0715m A0A0709m B6 LH front speaker B7 LH rear speaker B8 LH rear speaker 140 fig. 136a fig. 136b
