text version of content this owner's manual page from owners manual to the vehicle Seat Altea, year of production 2004 - 2015:

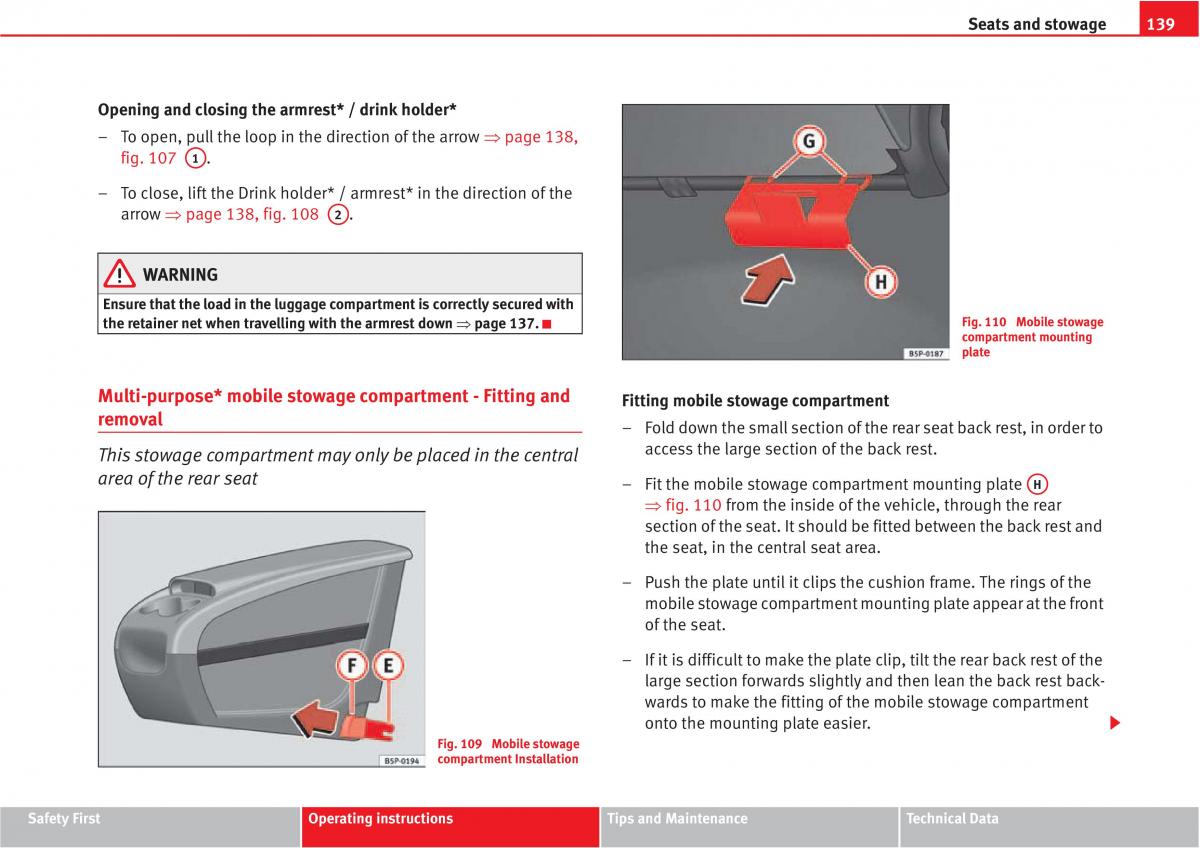

Seats and stowage 139 Opening and closing the armrest* / drink holder* – To open, pull the loop in the direction of the arrow page138, fig. 107 1 . A – To close, lift the Drink holder* / armrest* in the direction of the arrow page138, fig. 108 2 . A WARNING Ensure that the load in the luggage compartment is correctly secured with the retainer net when travelling with the armrest down page137. Fig. 110 Mobile stowage compartment mounting plate Multi-purpose* mobile stowage compartment - Fitting and Fitting mobile stowage compartment removal – Fold down the small section of the rear seat back rest, in order to This stowage compartment may only be placed in the central access the large section of the back rest. area of the rear seat – Fit the mobile stowage compartment mounting plate H A fig. 110 from the inside of the vehicle, through the rear section of the seat. It should be fitted between the back rest and the seat, in the central seat area. – Push the plate until it clips the cushion frame. The rings of the mobile stowage compartment mounting plate appear at the front of the seat. – If it is difficult to make the plate clip, tilt the rear back rest of the large section forwards slightly and then lean the back rest back- wards to make the fitting of the mobile stowage compartment onto the mounting plate easier. Fig. 109 Mobile stowage compartment Installation Safety First Operating instructions Tips and Maintenance Technical Data
