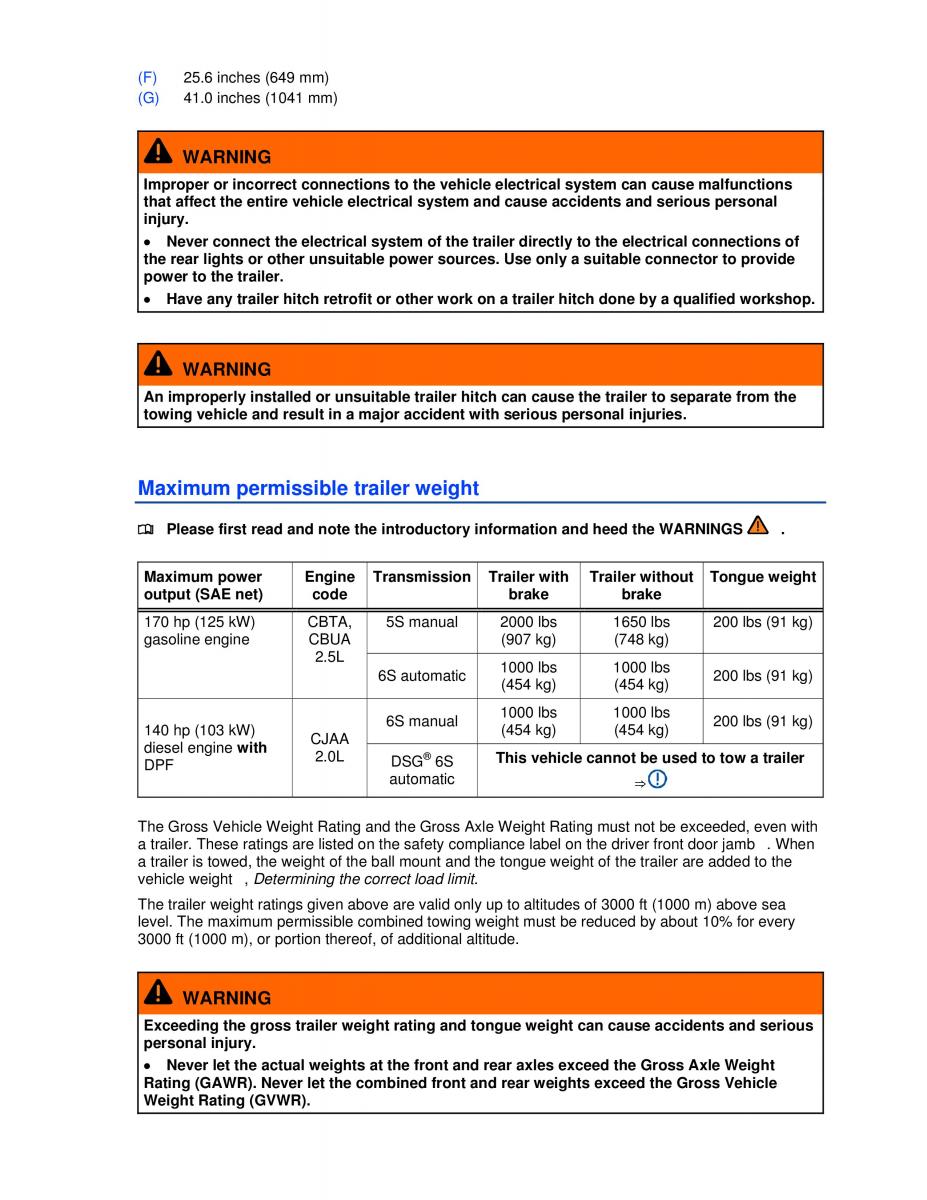

(F) 25.6 inches (649 mm) (G) 41.0 inches (1041 mm) WARNING Improper or incorrect connections to the vehicle electrical system can cause malfunctions that affect the entire vehicle electrical system and cause accidents and serious personal injury. x Never connect the electrical system of the trailer directly to the electrical connections of the rear lights or other unsuitable power sources. Use only a suitable connector to provide power to the trailer. x Have any trailer hitch retrofit or other work on a trailer hitch done by a qualified workshop. WARNING An improperly installed or unsuitable trailer hitch can cause the trailer to separate from the towing vehicle and result in a major accident with serious personal injuries. Maximum permissible trailer weight ¤ Please first read and note the introductory information and heed the WARNINGS . Maximum power Engine Transmission Trailer with Trailer without Tongue weight output (SAE net) code brake brake 170 hp (125 kW) CBTA, 5S manual 2000 lbs 1650 lbs 200 lbs (91 kg) gasoline engine CBUA (907 kg) (748 kg) 2.5L 1000 lbs 1000 lbs 6S automatic (454 kg) (454 kg) 200 lbs (91 kg) 6S manual 1000 lbs 1000 lbs 200 lbs (91 kg) 140 hp (103 kW) CJAA (454 kg) (454 kg) diesel engine with 2.0L ® This vehicle cannot be used to tow a trailer DPF DSG 6S automatic ⇒  The Gross Vehicle Weight Rating and the Gross Axle Weight Rating must not be exceeded, even with a trailer. These ratings are listed on the safety compliance label on the driver front door jamb . When a trailer is towed, the weight of the ball mount and the tongue weight of the trailer are added to the vehicle weight , Determining the correct load limit. The trailer weight ratings given above are valid only up to altitudes of 3000 ft (1000 m) above sea level. The maximum permissible combined towing weight must be reduced by about 10% for every 3000 ft (1000 m), or portion thereof, of additional altitude. WARNING Exceeding the gross trailer weight rating and tongue weight can cause accidents and serious personal injury. x Never let the actual weights at the front and rear axles exceed the Gross Axle Weight Rating (GAWR). Never let the combined front and rear weights exceed the Gross Vehicle Weight Rating (GVWR).
