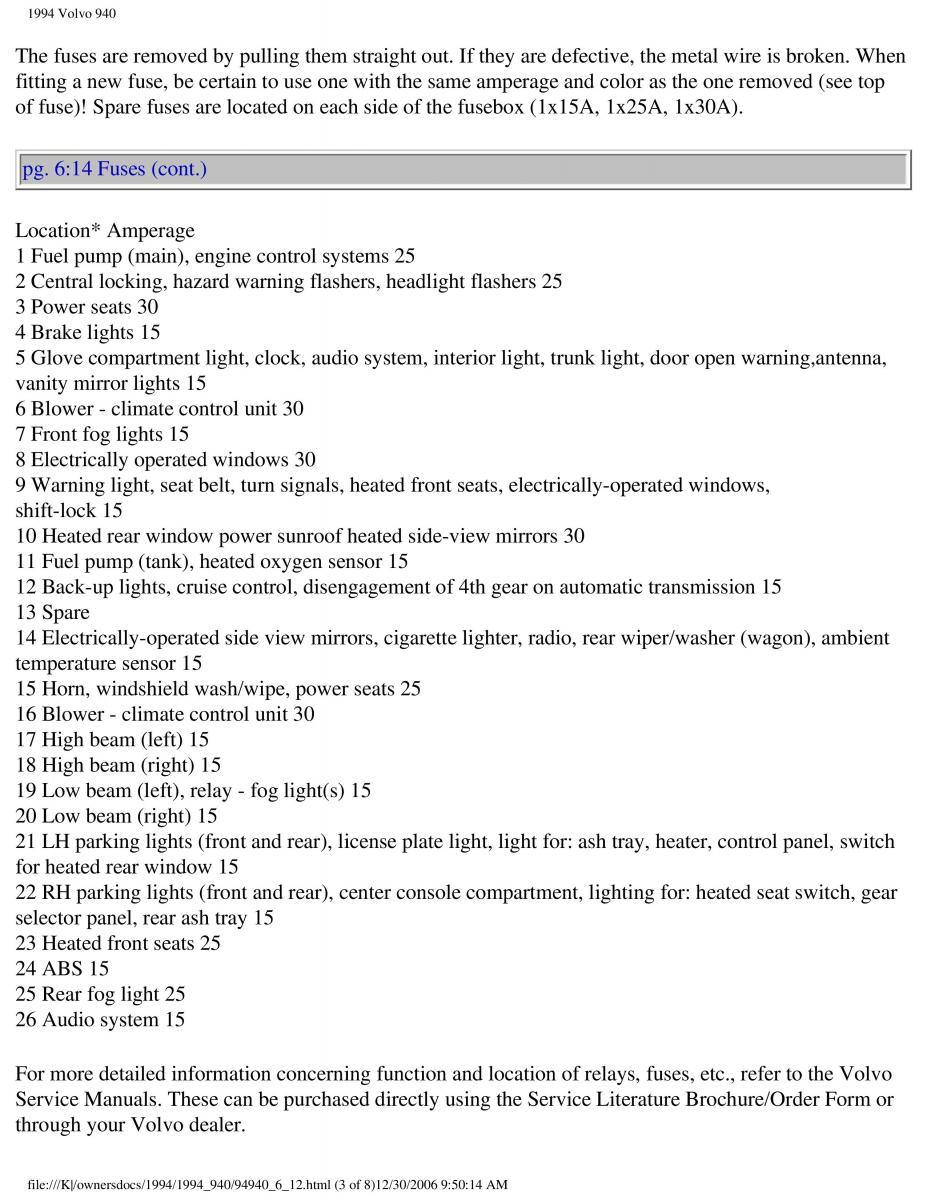

1994 Volvo 940
The fuses are removed by pulling them straight out. If they are defective, the metal wire is broken. When
fitting a new fuse, be certain to use one with the same amperage and color as the one removed (see top
of fuse)! Spare fuses are located on each side of the fusebox (1x15A, 1x25A, 1x30A).
pg. 6:14 Fuses (cont.)
Location* Amperage
1 Fuel pump (main), engine control systems 25
2 Central locking, hazard warning flashers, headlight flashers 25
3 Power seats 30
4 Brake lights 15
5 Glove compartment light, clock, audio system, interior light, trunk light, door open warning,antenna,
vanity mirror lights 15
6 Blower - climate control unit 30
7 Front fog lights 15
8 Electrically operated windows 30
9 Warning light, seat belt, turn signals, heated front seats, electrically-operated windows,
shift-lock 15
10 Heated rear window power sunroof heated side-view mirrors 30
11 Fuel pump (tank), heated oxygen sensor 15
12 Back-up lights, cruise control, disengagement of 4th gear on automatic transmission 15
13 Spare
14 Electrically-operated side view mirrors, cigarette lighter, radio, rear wiper/washer (wagon), ambient
temperature sensor 15
15 Horn, windshield wash/wipe, power seats 25
16 Blower - climate control unit 30
17 High beam (left) 15
18 High beam (right) 15
19 Low beam (left), relay - fog light(s) 15
20 Low beam (right) 15
21 LH parking lights (front and rear), license plate light, light for: ash tray, heater, control panel, switch
for heated rear window 15
22 RH parking lights (front and rear), center console compartment, lighting for: heated seat switch, gear
selector panel, rear ash tray 15
23 Heated front seats 25
24 ABS 15
25 Rear fog light 25
26 Audio system 15
For more detailed information concerning function and location of relays, fuses, etc., refer to the Volvo
Service Manuals. These can be purchased directly using the Service Literature Brochure/Order Form or
through your Volvo dealer.
file:///K|/ownersdocs/1994/1994_940/94940_6_12.html (3 of 8)12/30/2006 9:50:14 AM
