text version of content this owner's manual page from owners manual to the vehicle Lancia Lybra, year of production 1999 - 2005:

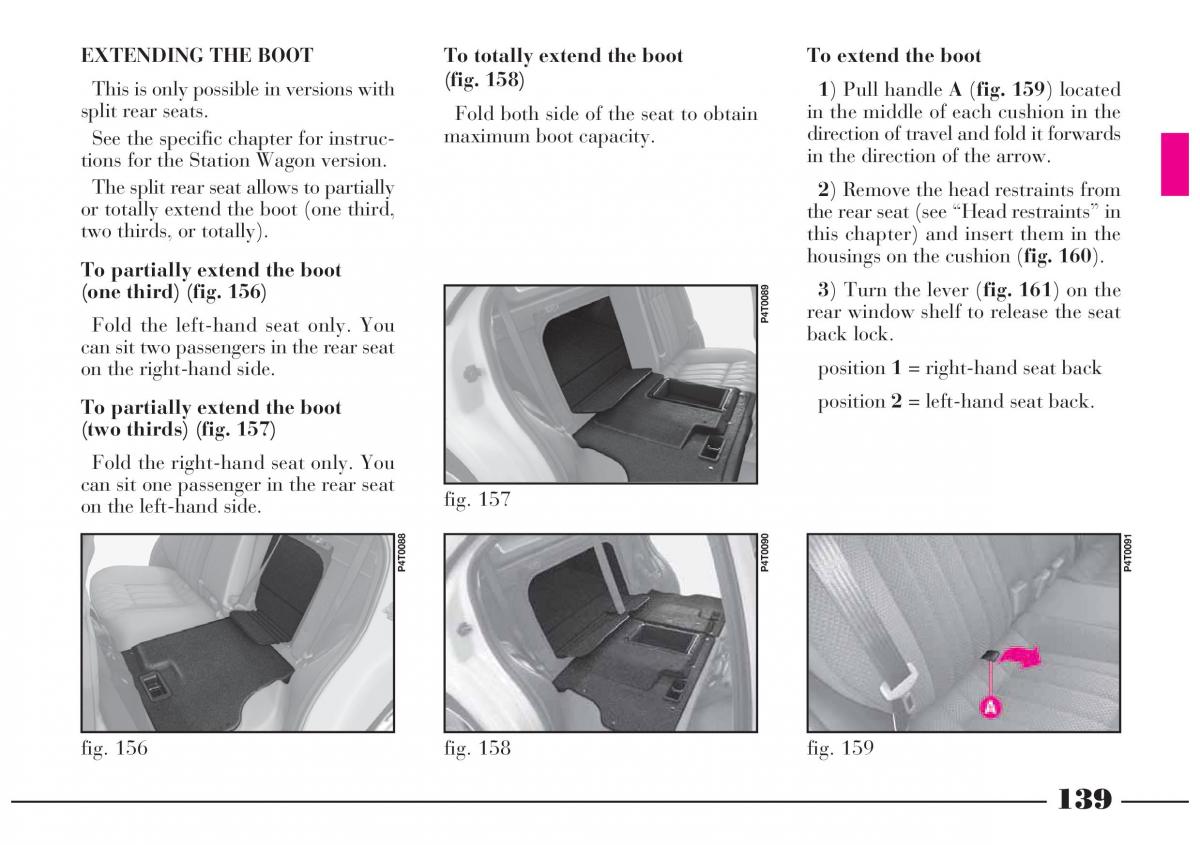

EXTENDING THE BOOT To totally extend the boot To extend the boot This is only possible in versions with (fig. 158) 1) Pull handle A (fig. 159) located split rear seats. Fold both side of the seat to obtainin the middle of each cushion in the See the specific chapter for instruc- maximum boot capacity. direction of travel and fold it forwards tions for the Station Wagon version. in the direction of the arrow. The split rear seat allows to partially 2) Remove the head restraints from or totally extend the boot (one third, the rear seat (see “Head restraints” in two thirds, or totally). this chapter) and insert them in the To partially extend the boot housings on the cushion ( fig. 160). (one third) (fig. 156) 3) Turn the lever (fig. 161) on the Fold the left-hand seat only. You P4T0089rear window shelf to release the seat can sit two passengers in the rear seat back lock. on the right-hand side. position 1 = right-hand seat back To partially extend the boot position 2 = left-hand seat back. (two thirds) (fig. 157) Fold the right-hand seat only. You can sit one passenger in the rear seat fig. 157 on the left-hand side. P4T0088 P4T0090 P4T0091 fig. 156 fig. 158 fig. 159 139
