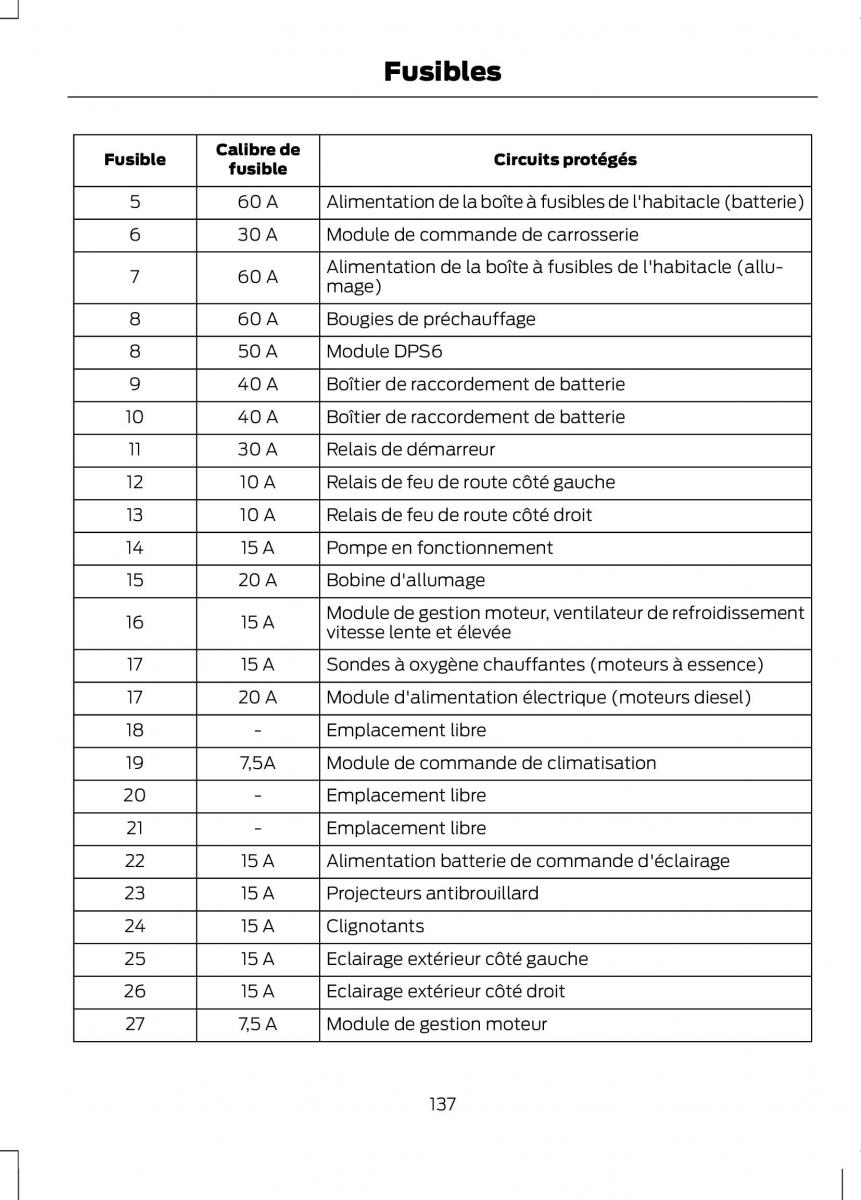

Fusibles
Fusible Calibre de Circuits protégés
fusible
5 60 A Alimentation de l a boît e à fusibles de l' habitacle (batterie)
6 30 A Module de commande de carrosserie
7 60 A Alimentation de la boîte à fusibles de l'habitacle (allu-
mage)
8 60 A Bougies de préchauffage
8 50 A Module DPS6
9 40 A Boîtier de raccordement de batterie
10 40 A Boîtier de raccordement de batterie
11 30 A Relais de démarreur
12 10 A Relais de feu de route côté gauche
13 10 A Relais de feu de route côté droit
14 15 A Pompe en fonctionnement
15 20 A Bobine d'allumage
16 15 A Module de gestion moteur, ventilateur de refroidissement
vitesse lente et élevée
17 15 A Sondes à oxygène chauffantes (moteurs à essence)
17 20 A Module d'alimentation électrique (moteurs diesel)
18 - Emplacement libre
19 7,5A Module de commande de climatisation
20 - Emplacement libre
21 - Emplacement libre
22 15 A Alimentation batterie de commande d'éclairage
23 15 A Projecteurs antibrouillard
24 15 A Clignotants
25 15 A Eclairage extérieur côté gauche
26 15 A Eclairage extérieur côté droit
27 7,5 A Module de gestion moteur
137
