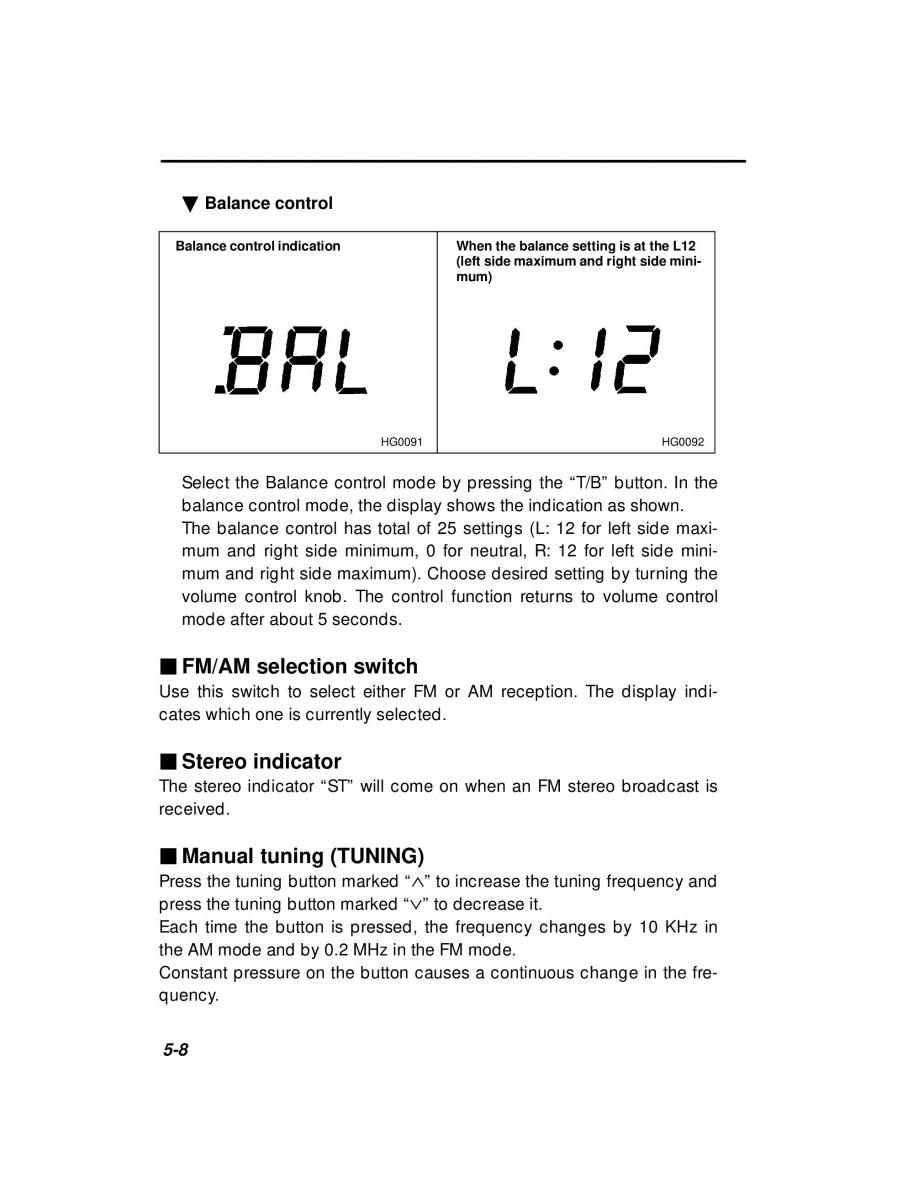

Balance control
Balance control indication When the balance setting is at the L12
(left side maximum and right side mini-
mum)
HG0091 HG0092
Select the Balance control mode by pressing the “T/B” button. In the
balance control mode, the display shows the indication as shown.
The balance control has total of 25 settings (L: 12 for left side maxi-
mum and right side minimum, 0 for neutral, R: 12 for left side mini-
mum and right side maximum). Choose desired setting by turning the
volume control knob. The control function returns to volume control
mode after about 5 seconds.
FM/AM selection switch
Use this switch to select either FM or AM reception. The display indi-
cates which one is currently selected.
Stereo indicator
The stereo indicator “ST” will come on when an FM stereo broadcast is
received.
Manual tuning (TUNING)
Press the tuning button marked “∧” to increase the tuning frequency and
press the tuning button marked “∨” to decrease it.
Each time the button is pressed, the frequency changes by 10 KHz in
the AM mode and by 0.2 MHz in the FM mode.
Constant pressure on the button causes a continuous change in the fre-
quency.
5-8
