VW Jetta VI 6 Hybrid owners manual page 138

text version of content this owner's manual page from owners manual to the vehicle VW Jetta Hybrid, year of production 2012:

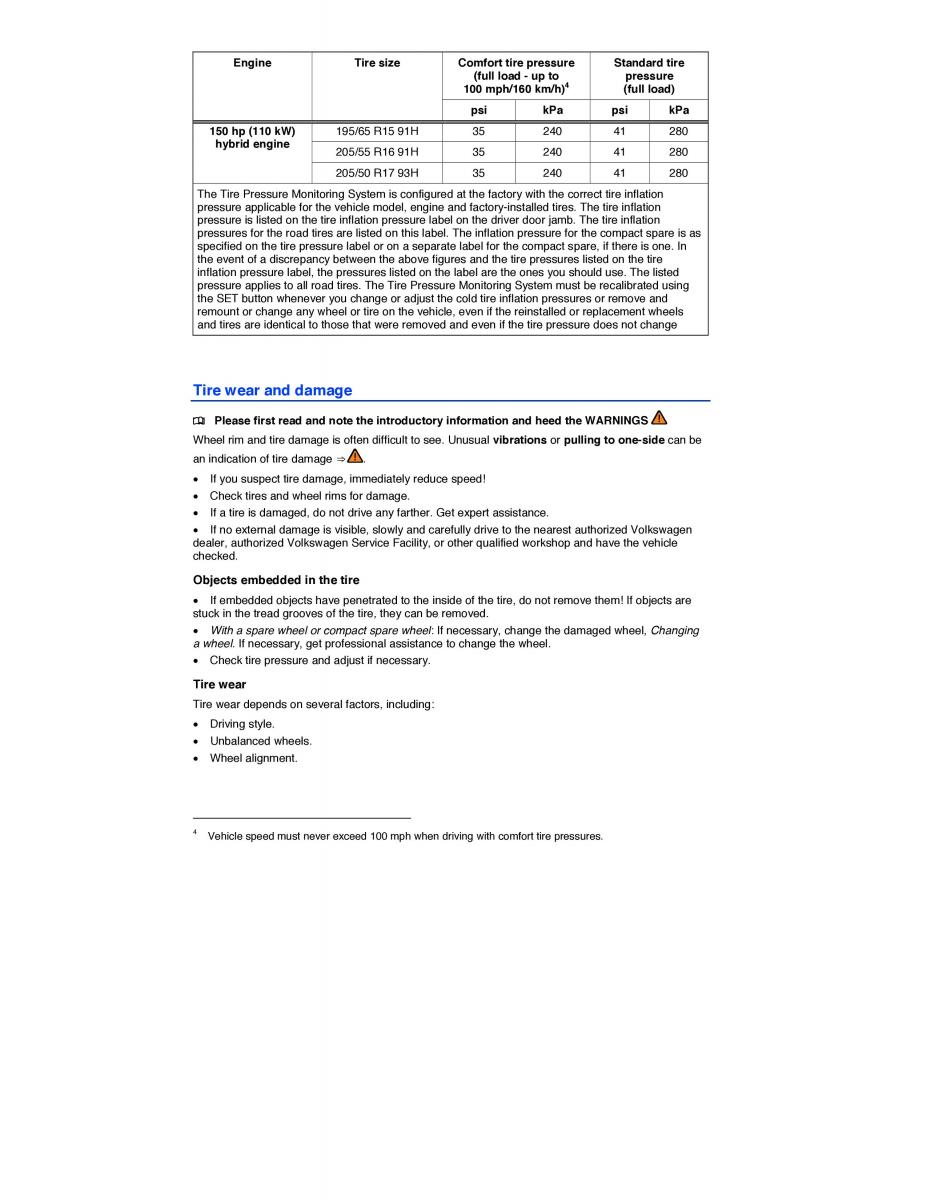

Engine Tire size Comfort tire pressure Standard tire (full load - up to 4 pressure 100 mph/160 km/h) (full load) psi kPa psi kPa 150 hp (110 kW) 195/65 R15 91H 35 240 41 280 hybrid engine 205/55 R16 91H 35 240 41 280 205/50 R17 93H 35 240 41 280 The Tire Pressure Monitoring System is configured at the factory with the correct tire inflation pressure applicable for the vehicle model, engine and factory-installed tires. The tire inflation pressure is listed on the tire inflation pressure label on the driver door jamb. The tire inflation pressures for the road tires are listed on this label. The inflation pressure for the compact spare is as specified on the tire pressure label or on a separate label for the compact spare, if there is one. In the event of a discrepancy between the above figures and the tire pressures listed on the tire inflation pressure label, the pressures listed on the label are the ones you should use. The listed pressure applies to all road tires. The Tire Pressure Monitoring System must be recalibrated using the SET button whenever you change or adjust the cold tire inflation pressures or remove and remount or change any wheel or tire on the vehicle, even if the reinstalled or replacement wheels and tires are identical to those that were removed and even if the tire pressure does not change Tire wear and damage ¤ Please first read and note the introductory information and heed the WARNINGS Wheel rim and tire damage is often difficult to see. Unusual vibrations or pulling to one-side can be an indication of tire damage ⇒ . x If you suspect tire damage, immediately reduce speed! x Check tires and wheel rims for damage. x If a tire is damaged, do not drive any farther. Get expert assistance. x If no external damage is visible, slowly and carefully drive to the nearest authorized Volkswagen dealer, authorized Volkswagen Service Facility, or other qualified workshop and have the vehicle checked. Objects embedded in the tire x If embedded objects have penetrated to the inside of the tire, do not remove them! If objects are stuck in the tread grooves of the tire, they can be removed. x With a spare wheel or compact spare wheel: If necessary, change the damaged wheel, Changing a wheel. If necessary, get professional assistance to change the wheel. x Check tire pressure and adjust if necessary. Tire wear Tire wear depends on several factors, including: x Driving style. x Unbalanced wheels. x Wheel alignment. 4 Vehicle speed must never exceed 100 mph when driving with comfort tire pressures.
