owners manual VW EOS

owners manual VW EOS - year of production: 2011, 2012, 2013, 2014 - VW EOS FL owners manual EN

Document: pdf (6.02 MB) 381 pages

all ratings: 1 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW EOS, year of production 2011 - 2014:

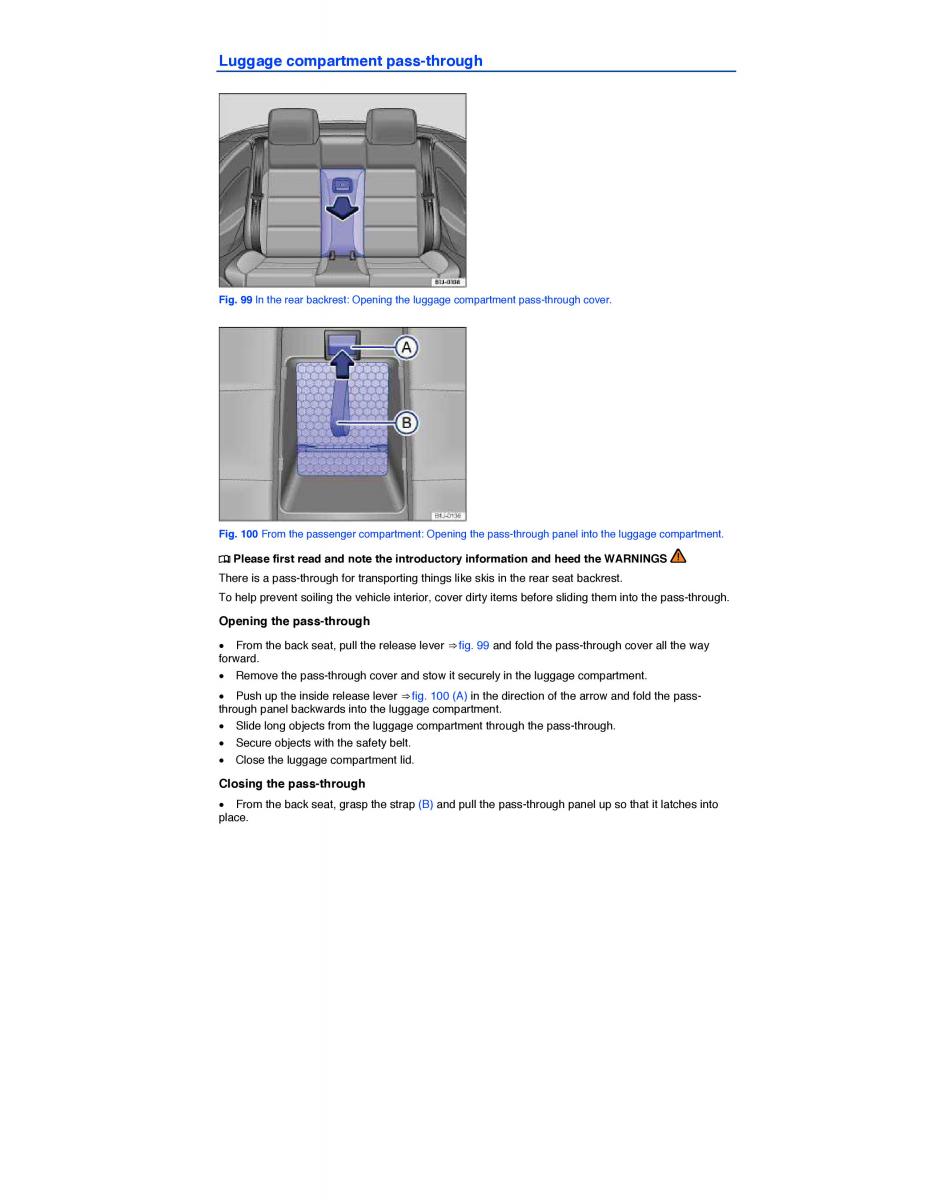

Luggage compartment pass-through Fig. 99 In the rear backrest: Opening the luggage compartment pass-through cover. Fig. 100 From the passenger compartment: Opening the pass-through panel into the luggage compartment. ¤ Please first read and note the introductory information and heed the WARNINGS There is a pass-through for transporting things like skis in the rear seat backrest. To help prevent soiling the vehicle interior, cover dirty items before sliding them into the pass-through. Opening the pass-through x From the back seat, pull the release leve⇒ r fig. 99 and fold the pass-through cover all the way forward. x Remove the pass-through cover and stow it securely in the luggage compartment. x Push up the inside release leve⇒ r fig. 100 (A) in the direction of the arrow and fold the pass- through panel backwards into the luggage compartment. x Slide long objects from the luggage compartment through the pass-through. x Secure objects with the safety belt. x Close the luggage compartment lid. Closing the pass-through x From the back seat, grasp the strap(B ) and pull the pass-through panel up so that it latches into place.
