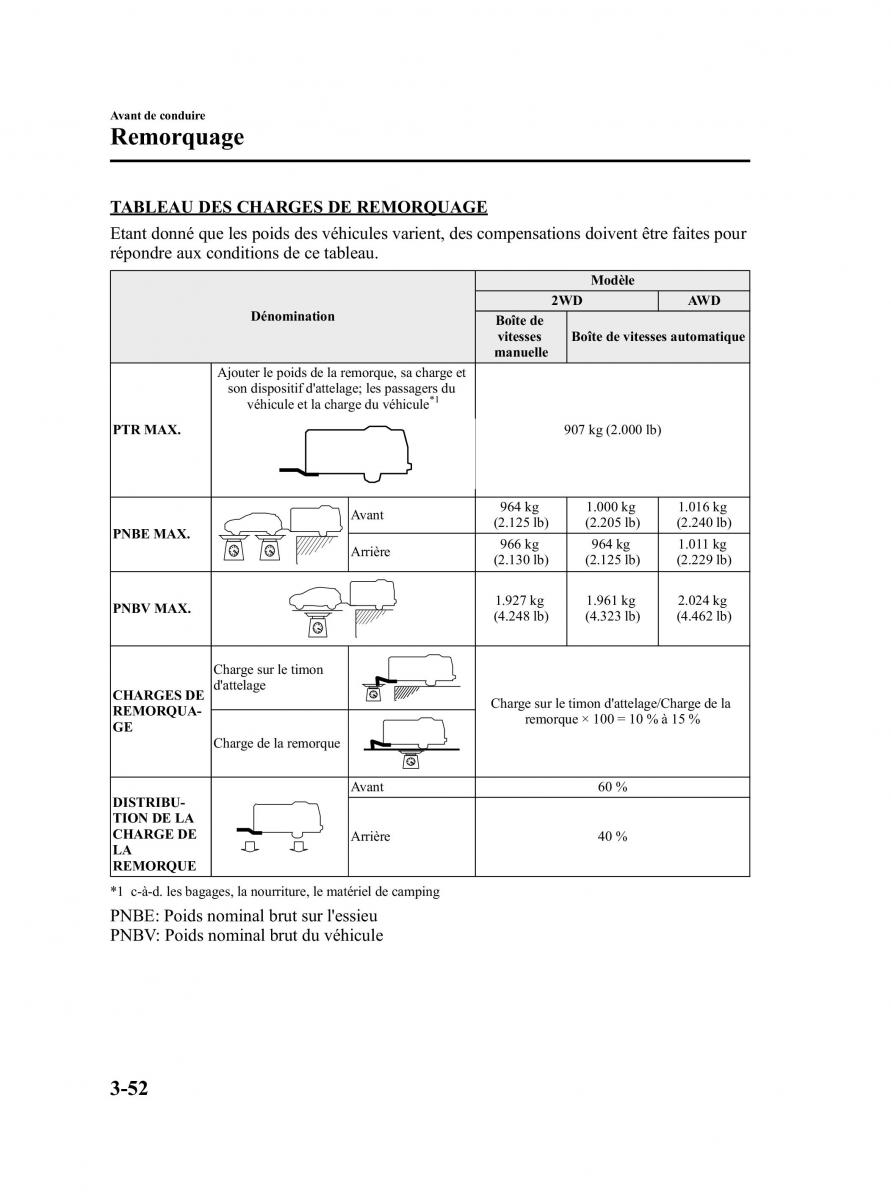

CX-5_8CA6-EC-11L_Edition1 Page136
Friday, December 9 2011 4:18 PM
Black plate (136,1)
Avantdeconduire
Remorquage
TABLEAUDESCHARGESDEREMORQUAGE
Etant donné que les poids des véhicules varient, des compensations doivent être faites pour
répondre aux conditions de ce tableau.
Modèle
2WD AWD
Dénomination Boîte de
vitesses Boîte de vitesses automatique
manuelle
Ajouter le poids de la remorque, sa charge et
son dispositif d'attelage; les passagers du
*1
véhicule et la charge du véhicule
PTRMAX. 907kg(2.000lb)
Avant 964kg 1.000 kg 1.016 kg
PNBEMAX. (2.125 lb) (2.205 lb) (2.240 lb)
Arrière 966kg 964kg 1.011 kg
(2.130 lb) (2.125 lb) (2.229 lb)
PNBVMAX. 1.927 kg 1.961 kg 2.024 kg
(4.248 lb) (4.323 lb) (4.462 lb)
Charge sur le timon
CHARGESDE d'attelage
REMORQUA- Charge sur le timon d'attelage/Charge de la
GE remorque × 100 = 10 % à 15 %
Charge de la remorque
Avant 60%
DISTRIBU-
TIONDELA
CHARGEDE Arrière 40%
LA
REMORQUE
*1 c-à-d. les bagages, la nourriture, le matériel de camping
PNBE:Poidsnominal brut sur l'essieu
PNBV:Poidsnominalbrut du véhicule
3-52
Form No.8CA6-EC-11L
