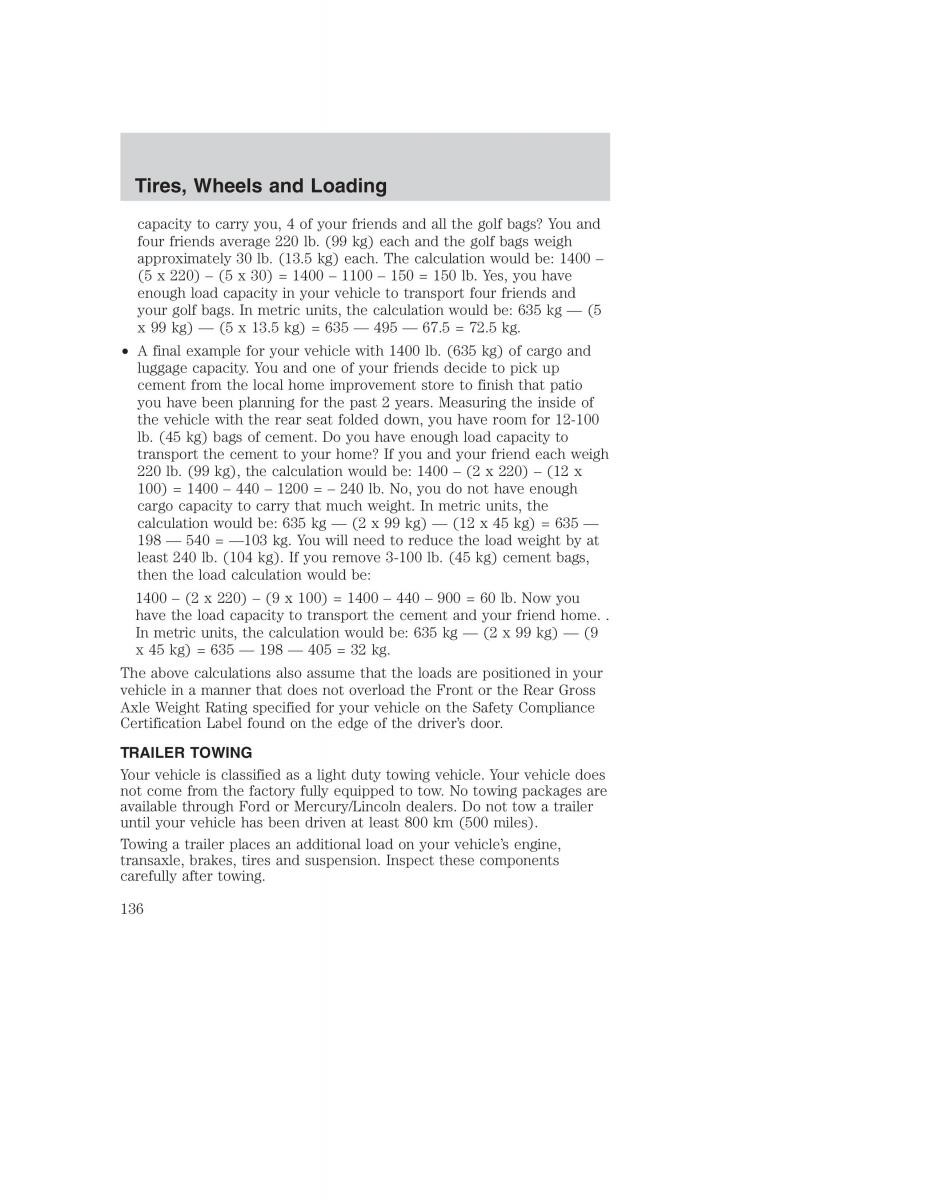

Ford Taurus IV 4 owners manual page 136

text version of content this owner's manual page from owners manual to the vehicle Ford Taurus, year of production 2000 - 2006:

Tires, Wheels and Loading capacity to carry you, 4 of your friends and all the golf bags? You and four friends average 220 lb. (99 kg) each and the golf bags weigh approximately 30 lb. (13.5 kg) each. The calculation would be: 1400 – (5 x 220) – (5 x 30) = 1400 – 1100 – 150 = 150 lb. Yes, you have enough load capacity in your vehicle to transport four friends and your golf bags. In metric units, the calculation would be: 635 kg — (5 x 99 kg) — (5 x 13.5 kg) = 635 — 495 — 67.5 = 72.5 kg. • A final example for your vehicle with 1400 lb. (635 kg) of cargo and luggage capacity. You and one of your friends decide to pick up cement from the local home improvement store to finish that patio you have been planning for the past 2 years. Measuring the inside of the vehicle with the rear seat folded down, you have room for 12-100 lb. (45 kg) bags of cement. Do you have enough load capacity to transport the cement to your home? If you and your friend each weigh 220 lb. (99 kg), the calculation would be: 1400 – (2 x 220) – (12 x 100) = 1400 – 440 – 1200 = – 240 lb. No, you do not have enough cargo capacity to carry that much weight. In metric units, the calculation would be: 635 kg — (2 x 99 kg) — (12 x 45 kg) = 635 — 198 — 540 = —103 kg. You will need to reduce the load weight by at least 240 lb. (104 kg). If you remove 3-100 lb. (45 kg) cement bags, then the load calculation would be: 1400 – (2 x 220) – (9 x 100) = 1400 – 440 – 900 = 60 lb. Now you have the load capacity to transport the cement and your friend home. . In metric units, the calculation would be: 635 kg — (2 x 99 kg) — (9 x 45 kg) = 635 — 198 — 405 = 32 kg. The above calculations also assume that the loads are positioned in your vehicle in a manner that does not overload the Front or the Rear Gross Axle Weight Rating specified for your vehicle on the Safety Compliance Certification Label found on the edge of the driver’s door. TRAILER TOWING Your vehicle is classified as a light duty towing vehicle. Your vehicle does not come from the factory fully equipped to tow. No towing packages are available through Ford or Mercury/Lincoln dealers. Do not tow a trailer until your vehicle has been driven at least 800 km (500 miles). Towing a trailer places an additional load on your vehicle’s engine, transaxle, brakes, tires and suspension. Inspect these components carefully after towing. 136 2006 Taurus (tau) Owners Guide (post-2002-fmt) USA(fus)

owners manual Ford Taurus

owners manual Ford Taurus - year of production: 2000, 2001, 2002, 2003, 2004, 2005, 2006 - Ford Taurus IV 4 owners manual EN
