text version of content this owner's manual page from owners manual to the vehicle Seat Ibiza, year of production 2002 - 2008:

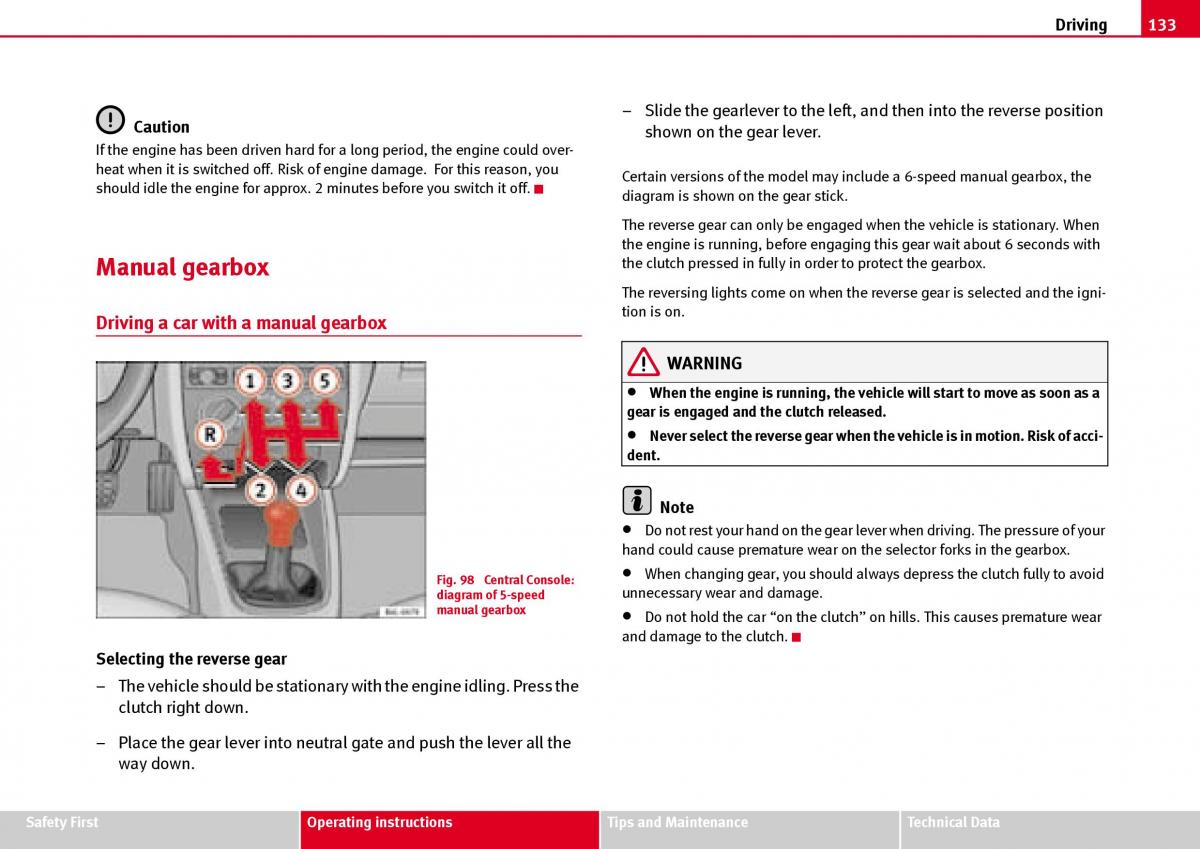

Driving 133 – Slide the gearlever to the left, and then into the reverse position Caution shown on the gear lever. If the engine has been driven hard for a long period, the engine could over- heat when it is switched off. Risk of engine damage. For this reason, you Certain versions of the model may include a 6-speed manual gearbox, the should idle the engine for approx. 2 minutes before you switch it off.diagram is shown on the gear stick. The reverse gear can only be engaged when the vehicle is stationary. When the engine is running, before engaging this gear wait about 6 seconds with Manual gearbox the clutch pressed in fully in order to protect the gearbox. The reversing lights come on when the reverse gear is selected and the igni- Driving a car with a manual gearbox tion is on. WARNING • When the engine is running, the vehicle will start to move as soon as a gear is engaged and the clutch released. • Never select the reverse gear when the vehicle is in motion. Risk of acci- dent. Note • Do not rest your hand on the gear lever when driving. The pressure of your hand could cause premature wear on the selector forks in the gearbox. Fig. 98 Central Console: • When changing gear, you should always depress the clutch fully to avoid diagram of 5-speed unnecessary wear and damage. manual gearbox • Do not hold the car “on the clutch” on hills. This causes premature wear and damage to the clutch. Selecting the reverse gear – The vehicle should be stationary with the engine idling. Press the clutch right down. – Place the gear lever into neutral gate and push the lever all the way down. Safety First Operating instructions Tips and Maintenance Technical Data
