owners manual Skoda Superb

owners manual Skoda Superb - year of production: 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008 - Skoda Superb I 1 owners manual EN

Document: pdf (25.49 MB) 259 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Skoda Superb, year of production 2001 - 2008:

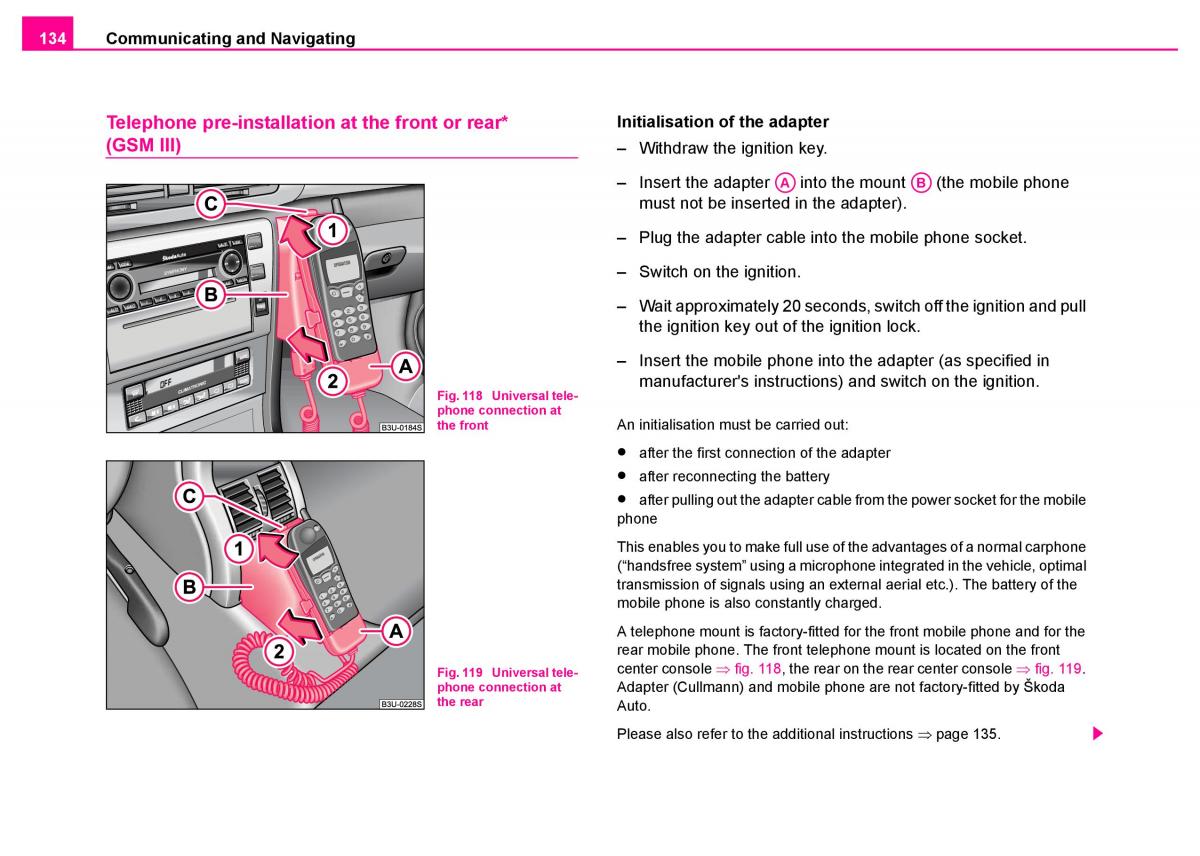

134 Communicating and Navigating Telephone pre-installation at the front or rear* Initialisation of the adapter (GSM III) – Withdraw the ignition key. A B A A – Insert the adapter into the mount (the mobile phone must not be inserted in the adapter). – Plug the adapter cable into the mobile phone socket. – Switch on the ignition. – Wait approximately 20 seconds, switch off the ignition and pull the ignition key out of the ignition lock. – Insert the mobile phone into the adapter (as specified in manufacturer's instructions) and switch on the ignition. Fig. 118 Universal tele- phone connection at the front An initialisation must be carried out: • after the first connection of the adapter • after reconnecting the battery • after pulling out the adapter cable from the power socket for the mobile phone This enables you to make full use of the advantages of a normal carphone (“handsfree system” using a microphone integrated in the vehicle, optimal transmission of signals using an external aerial etc.). The battery of the mobile phone is also constantly charged. A telephone mount is factory-fitted for the front mobile phone and for the rear mobile phone. The front telephone mount is located on the front Fig. 119 Universal tele-center console ⇒ fig. 118, the rear on the rear center console ⇒ fig. 119. phone connection at Adapter (Cullmann) and mobile phone are not factory-fitted by Škoda the rear Auto. Please also refer to the additional instructions ⇒ page 135.
