owners manual Ford Mustang

all ratings: 0 average rating: 5

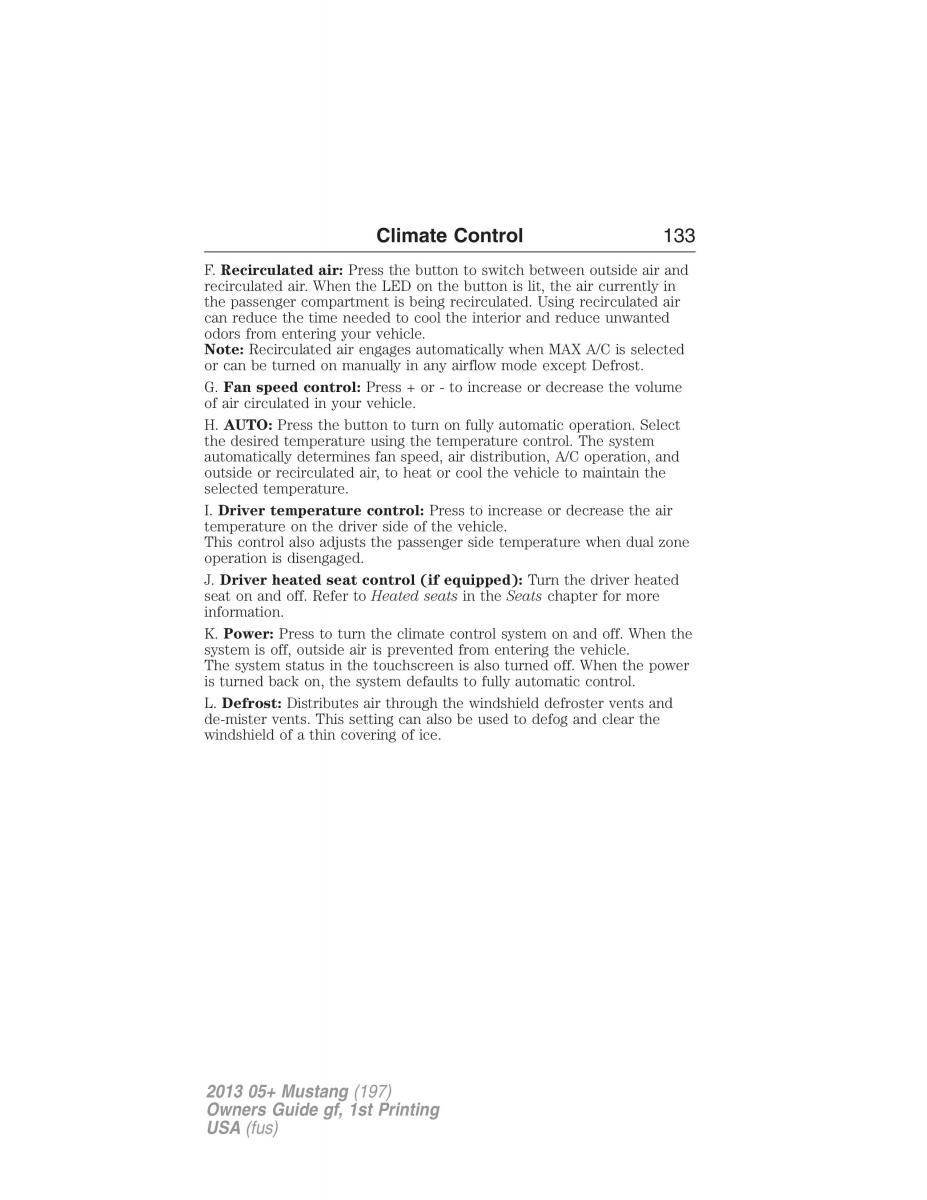

Climate Control 133 F.Recirculated air: Press the button to switch between outside air and recirculated air. When the LED on the button is lit, the air currently in the passenger compartment is being recirculated. Using recirculated air can reduce the time needed to cool the interior and reduce unwanted odors from entering your vehicle. Note: Recirculated air engages automatically when MAX A/C is selected or can be turned on manually in any airflow mode except Defrost. G. Fan speed control: Press + or - to increase or decrease the volume of air circulated in your vehicle. H. AUTO: Press the button to turn on fully automatic operation. Select the desired temperature using the temperature control. The system automatically determines fan speed, air distribution, A/C operation, and outside or recirculated air, to heat or cool the vehicle to maintain the selected temperature. I. Driver temperature control: Press to increase or decrease the air temperature on the driver side of the vehicle. This control also adjusts the passenger side temperature when dual zone operation is disengaged. J. Driver heated seat control (if equipped): Turn the driver heated seat on and off. Refer to Heated seats in the Seats chapter for more information. K. Power: Press to turn the climate control system on and off. When the system is off, outside air is prevented from entering the vehicle. The system status in the touchscreen is also turned off. When the power is turned back on, the system defaults to fully automatic control. L. Defrost: Distributes air through the windshield defroster vents and de-mister vents. This setting can also be used to defog and clear the windshield of a thin covering of ice. 2013 05+ Mustang (197) Owners Guide gf, 1st Printing USA(fus)
