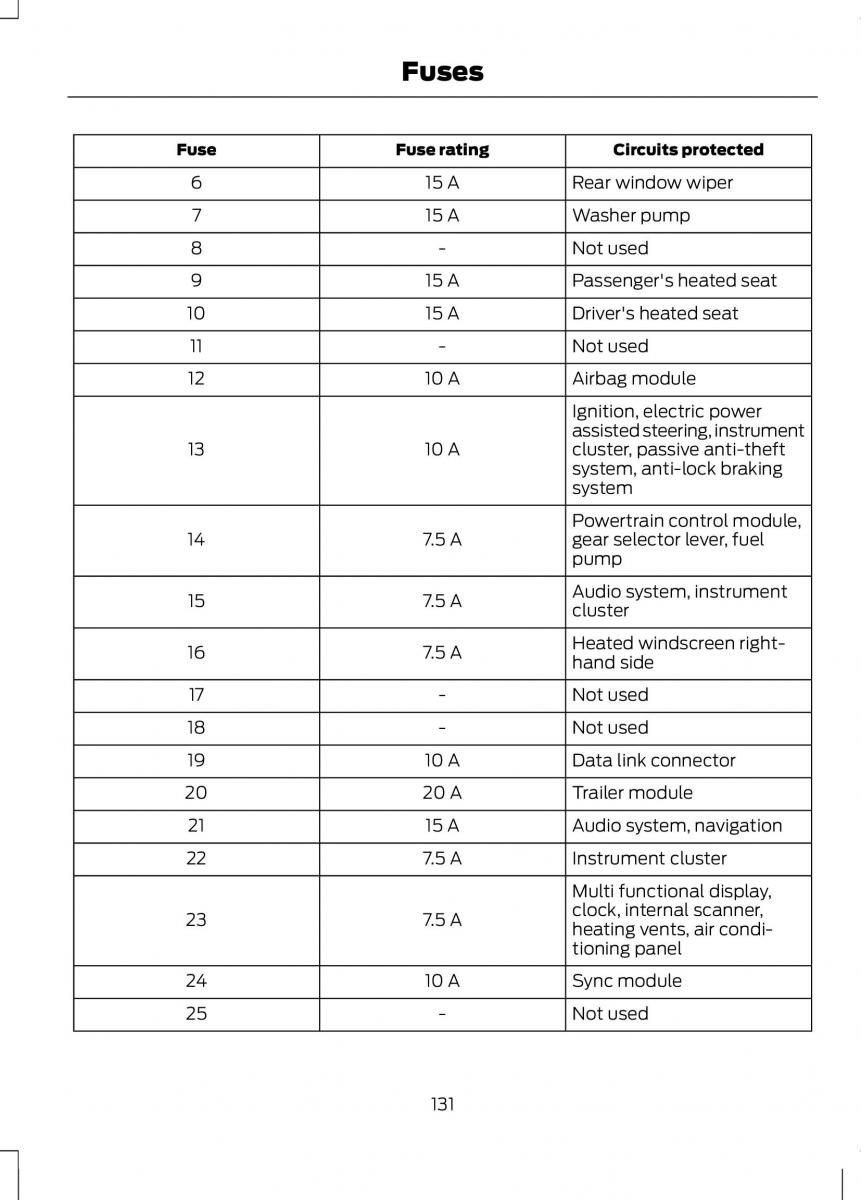

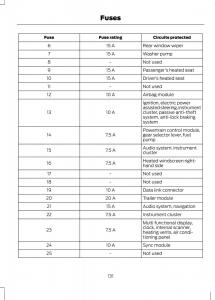

Fuses
Fuse Fuse rating Circuits protected
6 15 A Rear window wiper
7 15 A Washer pump
8 - Not used
9 15 A Passenger's heated seat
10 15 A Driver's heated seat
11 - Not used
12 10 A Airbag module
Ignition, electric power
assisted steering, ins trument
13 10 A cluster, passive anti-theft
system, anti-lock braking
system
Powertrain control module,
14 7.5 A gear selector lever, fuel
pump
15 7.5 A Audio system, instrument
cluster
16 7.5 A Heated windscreen right-
hand side
17 - Not used
18 - Not used
19 10 A Data link connector
20 20 A Trailer module
21 15 A Audio system, navigation
22 7.5 A Instrument cluster
Multi functional display,
23 7.5 A clock, internal scanner,
heating vents, air condi-
tioning panel
24 10 A Sync module
25 - Not used
131
