owners manual Alfa Romeo 156

owners manual Alfa Romeo 156 - year of production: 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 - Alfa Romeo 156 owners manual EN

Document: pdf (6.63 MB) 358 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 156, year of production 1997 - 2006:

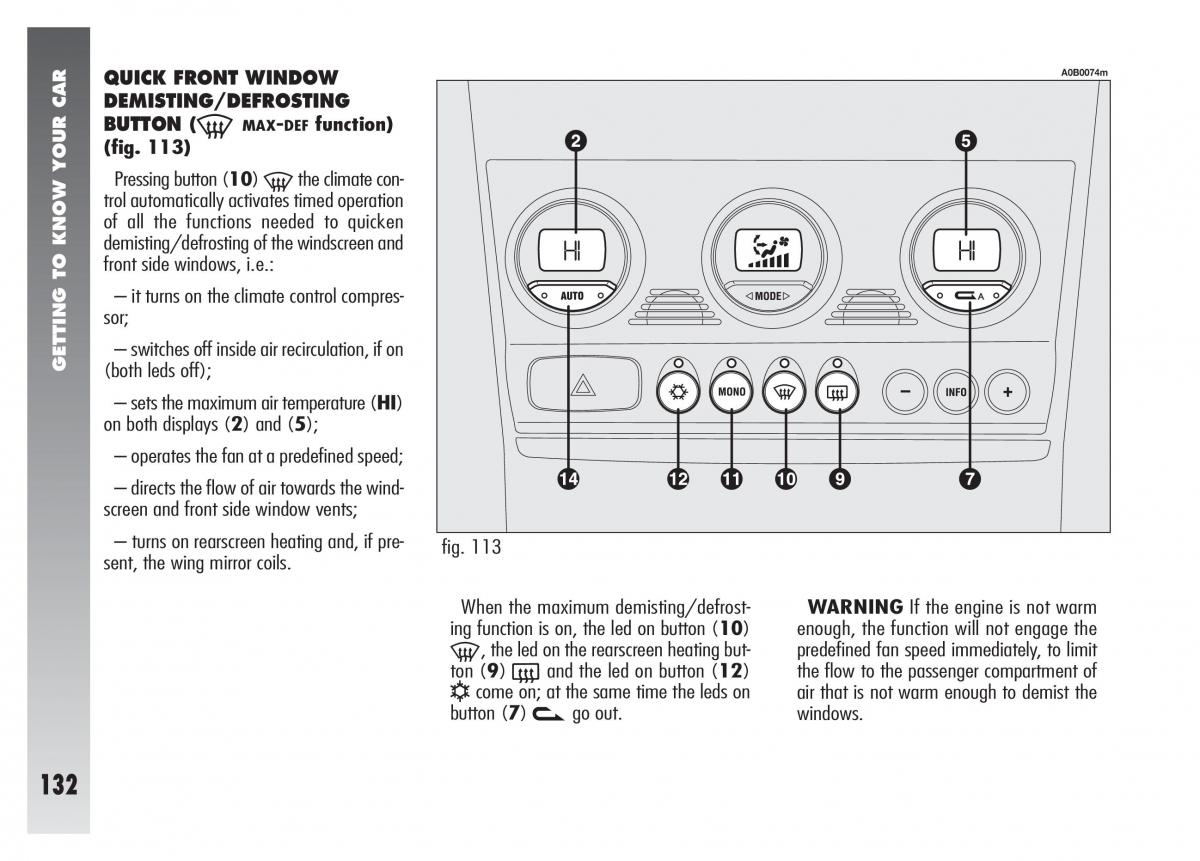

QUICK FRONT WINDOW A0B0074m DEMISTING/DEFROSTING BUTTON ( MAX-DEF function) - (fig. 113) Pressing button (10)-the climate con- trol automatically activates timed operation of all the functions needed to quicken demisting/defrosting of the windscreen and front side windows, i.e.: – it turns on the climate control compres- sor; – switches off inside air recirculation, if on GETTING TO KNOW YOUR CAR(both leds off); – sets the maximum air temperature (HI) on both displays (2) and (5); – operates the fan at a predefined speed; – directs the flow of air towards the wind- screen and front side window vents; – turns on rearscreen heating and, if pre- fig. 113 sent, the wing mirror coils. When the maximum demisting/defrost- WARNINGIf the engine is not warm ing function is on, the led on button (10) enough, the function will not engage the , the led on the rearscreen heating but- predefined fan speed immediately, to limit - ton (9) ( and the led on button (12) the flow to the passenger compartment of √come on; at the same time the leds on air that is not warm enough to demist the button (7) vgo out. windows. 132
