owners manual Seat Altea

owners manual Seat Altea - year of production: 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 - Seat Altea owners manual EN

Document: pdf (4.4 MB) 302 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Seat Altea, year of production 2004 - 2015:

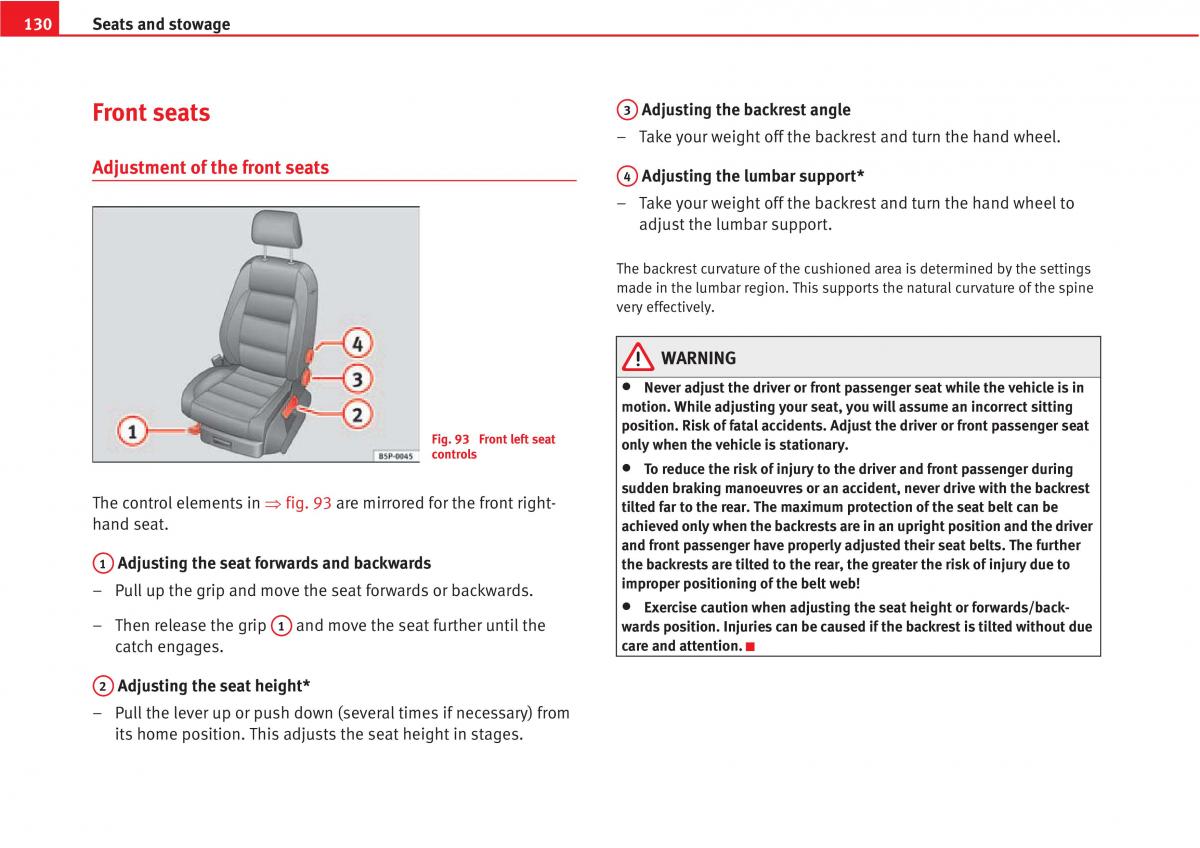

130 Seats and stowage 3 Adjusting the backrest angle Front seats A – Take your weight off the backrest and turn the hand wheel. Adjustment of the front seats 4 Adjusting the lumbar support* A – Take your weight off the backrest and turn the hand wheel to adjust the lumbar support. The backrest curvature of the cushioned area is determined by the settings made in the lumbar region. This supports the natural curvature of the spine very effectively. WARNING • Never adjust the driver or front passenger seat while the vehicle is in motion. While adjusting your seat, you will assume an incorrect sitting position. Risk of fatal accidents. Adjust the driver or front passenger seat Fig. 93 Front left seat only when the vehicle is stationary. controls • To reduce the risk of injury to the driver and front passenger during The control elements in fig. 93 are mirrored for the front right-sudden braking manoeuvres or an accident, never drive with the backrest tilted far to the rear. The maximum protection of the seat belt can be hand seat. achieved only when the backrests are in an upright position and the driver and front passenger have properly adjusted their seat belts. The further 1 A Adjusting the seat forwards and backwards the backrests are tilted to the rear, the greater the risk of injury due to – Pull up the grip and move the seat forwards or backwards.improper positioning of the belt web! • Exercise caution when adjusting the seat height or forwards/back- – Then release the grip 1 and move the seat further until the A wards position. Injuries can be caused if the backrest is tilted without due catch engages. care and attention. 2 Adjusting the seat height* A – Pull the lever up or push down (several times if necessary) from its home position. This adjusts the seat height in stages.

Download PDF

Click here to download a pdf file with an instruction manual for Seat Altea
year of production from: 2004

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Seat Altea owners manual
pages 129 - 135

Seat Altea owners manual
page 132 / 302
