owners manual Ford Edge

all ratings: 0 average rating: 5

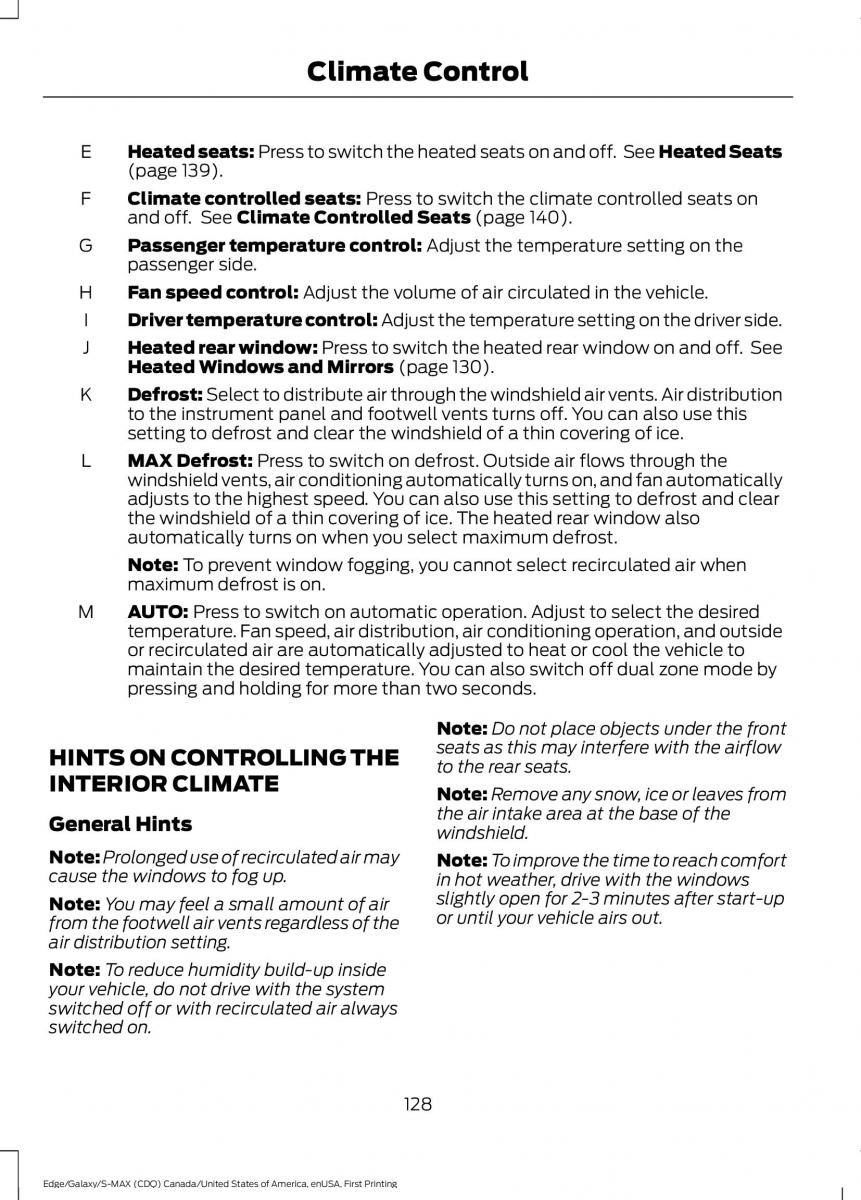

Climate Control E Heated seats: Press to switch the heated seats on and off. See Heated Seats (page 139). F Climate controlled seats: Press to switch the climate controlled seats on and off. See Climate Controlled Seats (page 140). G Passenger temperature control: Adjust the temperature setting on the passenger side. H Fan speed control: Adjust the volume of air circulated in the vehicle. I Driver temperature control: Adjust the temperature setting on the driver side. J Heated rear window: Press to switch the heated rear window on and off. See Heated Windows and Mirrors (page 130). K Defrost: Select to distribute air through the windshield air vents. Air distribution to the instrument panel and footwell vents turns off. You can also use this setting to defrost and clear the windshield of a thin covering of ice. L MAX Defrost: Press to switch on defrost. Outside air flows through the windshield vents, air conditioning automatically turns on, and fan automatically adjusts to the highest speed. You can also use this setting to defrost and clear the windshield of a thin covering of ice. The heated rear window also automatically turns on when you select maximum defrost. Note: To prevent window fogging, you cannot select recirculated air when maximum defrost is on. M AUTO: Press to switch on automatic operation. Adjust to select the desired temperature. Fan speed, air distribution, air conditioning operation, and outside or recirculated air are automatically adjusted to heat or cool the vehicle to maintain the desired temperature. You can also switch off dual zone mode by pressing and holding for more than two seconds. Note:Do not place objects under the front HINTS ON CONTROLLING THE seats as this may interfere with the airflow INTERIOR CLIMATE to the rear seats. Note:Remove any snow, ice or leaves from General Hints the air intake area at the base of the windshield. Note:Prolonged use of recirculated air may Note:To improve the time to reach comfort cause the windows to fog up. in hot weather, drive with the windows Note:You may feel a small amount of air slightly open for 2-3 minutes after start-up from the footwell air vents regardless of the or until your vehicle airs out. air distribution setting. Note:To reduce humidity build-up inside your vehicle, do not drive with the system switched off or with recirculated air always switched on. 128 Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing
