text version of content this owner's manual page from owners manual to the vehicle Peugeot iOn, year of production 2010:

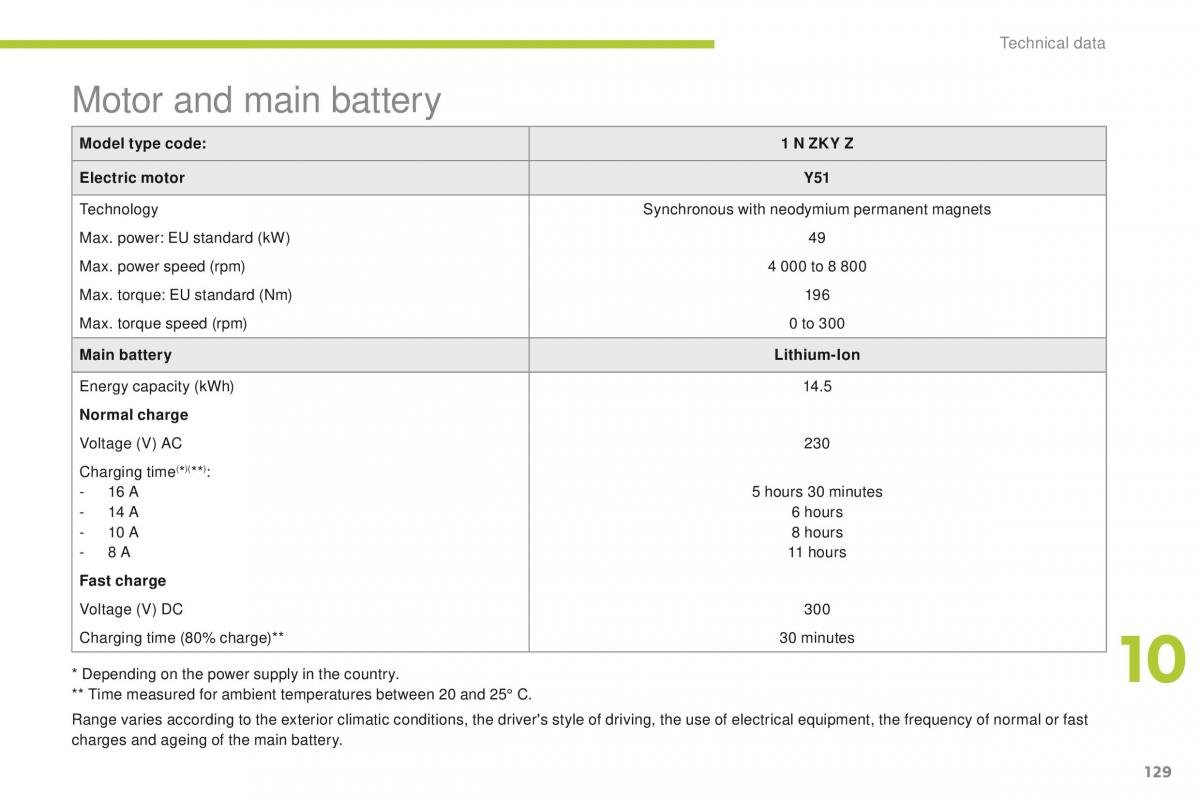

Technical data Motor and main battery Model type code: 1 N ZKY Z Electric motor Y51 Technology Synchronous with neodymium permanent magnets Max. power: EU standard (kW) 49 Max. power speed (rpm) 4 000 to 8 800 Max. torque: EU standard (Nm) 196 Max. torque speed (rpm) 0 to 300 Main battery Lithium-Ion Energy capacity (kWh) 14.5 Normal charge Voltage (V) AC 230 ()( ) Charging time* **: - 16 A 5 hours 30 minutes - 14 A 6 hours - 10 A 8 hours - 8 A 11 hours Fast charge Voltage (V) DC 300 Charging time (80% charge)** 30 minutes * Depending on the power supply in the country. 10 ** Time measured for ambient temperatures between 20 and 25° C. Range varies according to the exterior climatic conditions, the driver's style of driving, the use of electrical equipment, the frequency of normal or fast charges and ageing of the main battery. 129
