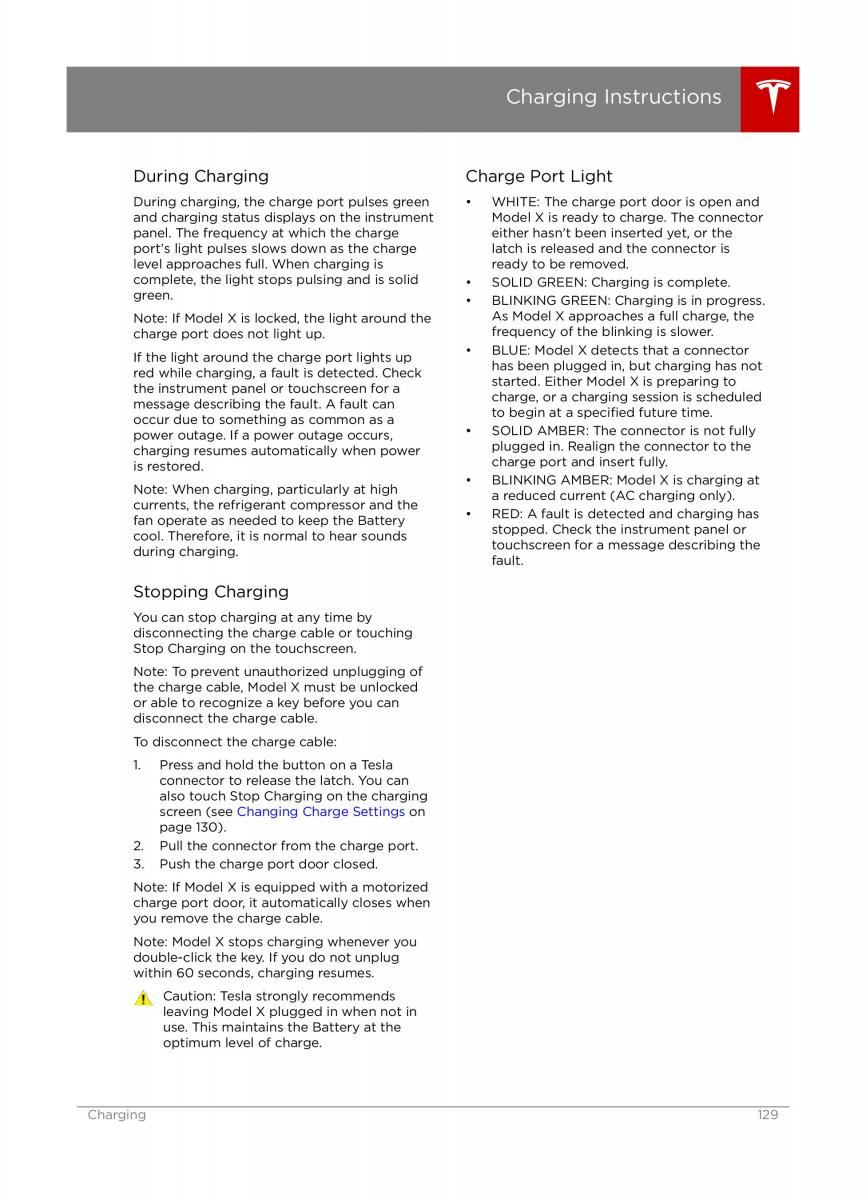

Tesla X owners manual page 129

text version of content this owner's manual page from owners manual to the vehicle Tesla X, year of production 2015:

Charging Instructions During Charging Charge Port Light During charging, the charge port pulses green•WHITE: The charge port door is open and and charging status displays on the instrumentModel X is ready to charge. The connector panel. The frequency at which the chargeeither hasn't been inserted yet, or the ports light pulses slows down as the chargelatch is released and the connector is level approaches full. When charging isready to be removed. complete, the light stops pulsing and is solid•SOLID GREEN: Charging is complete. green. • BLINKING GREEN: Charging is in progress. Note: If Model X is locked, the light around theAs Model X approaches a full charge, the charge port does not light up. frequency of the blinking is slower. If the light around the charge port lights up•BLUE: Model X detects that a connector red while charging, a fault is detected. Checkhas been plugged in, but charging has not the instrument panel or touchscreen for astarted. Either Model X is preparing to message describing the fault. A fault cancharge, or a charging session is scheduled occur due to something as common as ato begin at a speciied future time. power outage. If a power outage occurs,•SOLID AMBER: The connector is not fully charging resumes automatically when powerplugged in. Realign the connector to the is restored. charge port and insert fully. Note: When charging, particularly at high•BLINKING AMBER: Model X is charging at currents, the refrigerant compressor and thea reduced current (AC charging only). fan operate as needed to keep the Battery•RED: A fault is detected and charging has cool. Therefore, it is normal to hear soundsstopped. Check the instrument panel or during charging. touchscreen for a message describing the fault. Stopping Charging You can stop charging at any time by disconnecting the charge cable or touching Stop Charging on the touchscreen. Note: To prevent unauthorized unplugging of the charge cable, Model X must be unlocked or able to recognize a key before you can disconnect the charge cable. To disconnect the charge cable: 1. Press and hold the button on a Tesla connector to release the latch. You can also touch Stop Charging on the charging screen (see Changing Charge Settings on page 130). 2. Pull the connector from the charge port. 3. Push the charge port door closed. Note: If Model X is equipped with a motorized charge port door, it automatically closes when you remove the charge cable. Note: Model X stops charging whenever you double-click the key. If you do not unplug within 60 seconds, charging resumes. Caution: Tesla strongly recommends leaving Model X plugged in when not in use. This maintains the Battery at the optimum level of charge. Charging 129
