text version of content this owner's manual page from owners manual to the vehicle Renault Trafic, year of production 2001 - 2014:

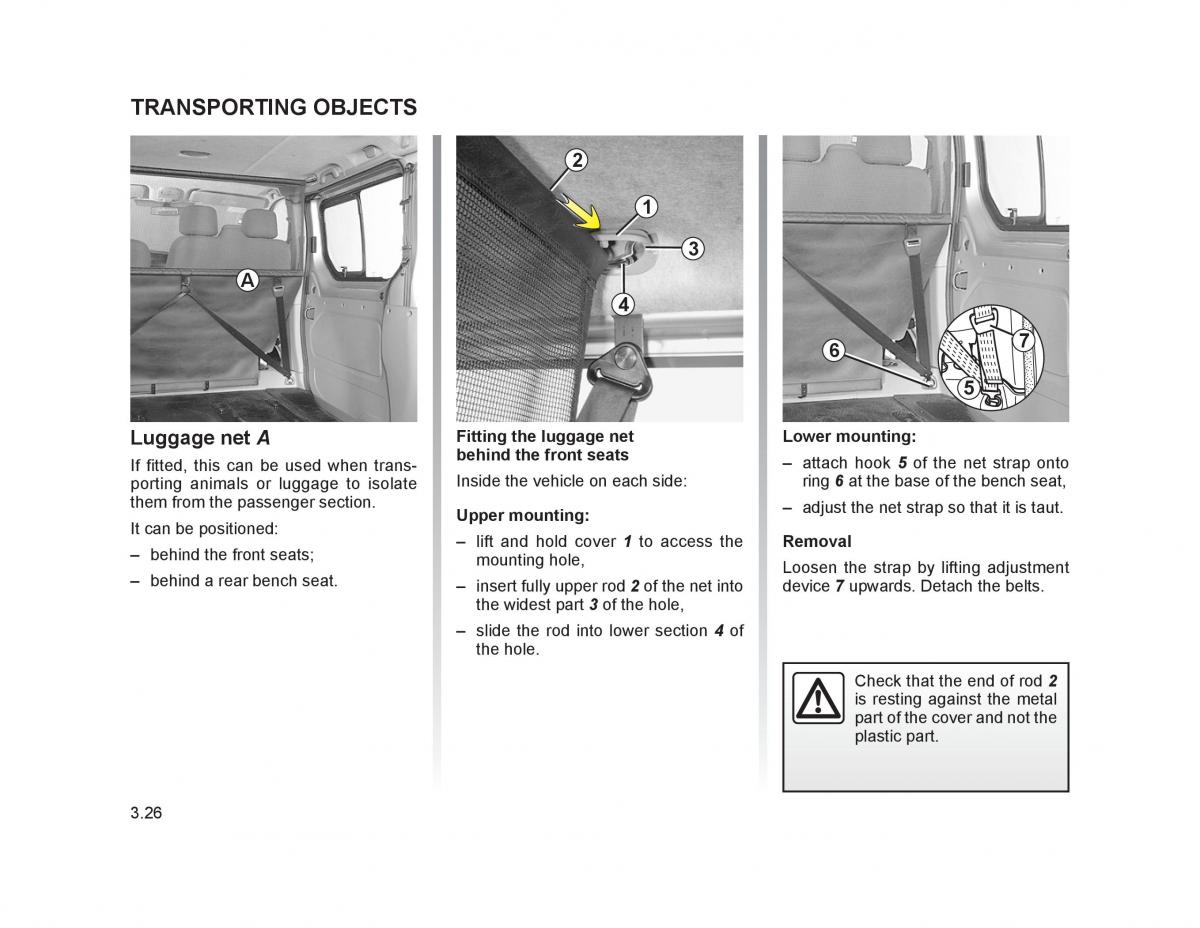

Cyan Magenta Jaune Noir Noir texte TRANSPORTING OBJECTS 2 1 3 A 4 6 7 5 Luggage net A Fitting the luggage net Lower mounting: behind the front seats – attach 5hook of the net strap onto If fitted, this can be used when trans- Inside the vehicle on each side:ring 6 at the base of the bench seat, porting animals or luggage to isolate them from the passenger section.Upper mounting:– adjust the net strap so that it is taut. It can be positioned: – lift and hold cover 1 to access theRemoval – behind the front seats;mounting hole, Loosen the strap by lifting adjustment – behind a rear bench seat.– insert fully upper rod 2 of the net into device 7 upwards. Detach the belts. the widest part 3 of the hole, – slide the rod into lower section 4 of the hole. Check that the end of rod 2 is resting against the metal part of the cover and not the plastic part. 3.26 _UD0_
