text version of content this owner's manual page from owners manual to the vehicle Skoda Fabia, year of production 1999 - 2008:

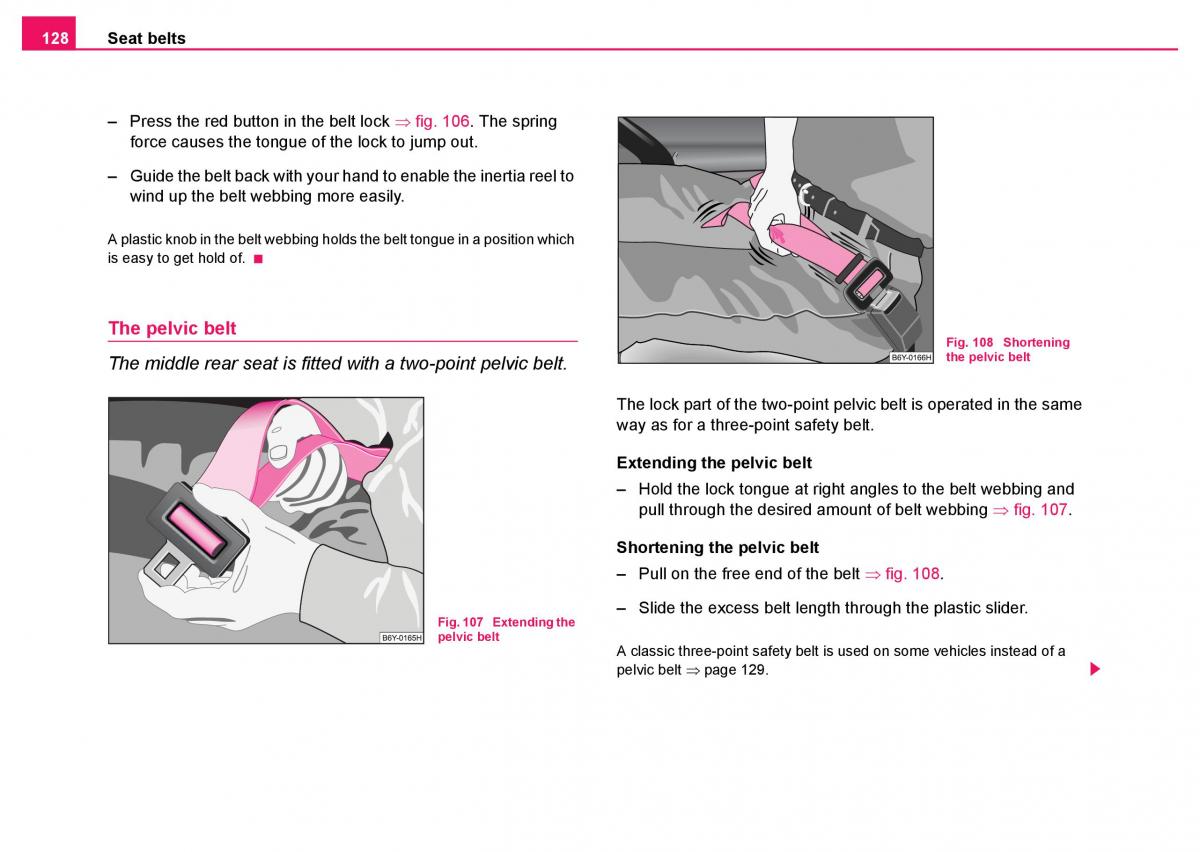

128 Seat belts – Press the red button in the belt lock ⇒ fig. 106. The spring force causes the tongue of the lock to jump out. – Guide the belt back with your hand to enable the inertia reel to wind up the belt webbing more easily. A plastic knob in the belt webbing holds the belt tongue in a position which is easy to get hold of. The pelvic belt Fig. 108 Shortening The middle rear seat is fitted with a two-point pelvic belt. the pelvic belt The lock part of the two-point pelvic belt is operated in the same way as for a three-point safety belt. Extending the pelvic belt – Hold the lock tongue at right angles to the belt webbing and pull through the desired amount of belt webbing ⇒ fig. 107. Shortening the pelvic belt – Pull on the free end of the belt ⇒ fig. 108. Fig. 107 Extending the – Slide the excess belt length through the plastic slider. pelvic belt A classic three-point safety belt is used on some vehicles instead of a pelvic belt ⇒ page 129.
