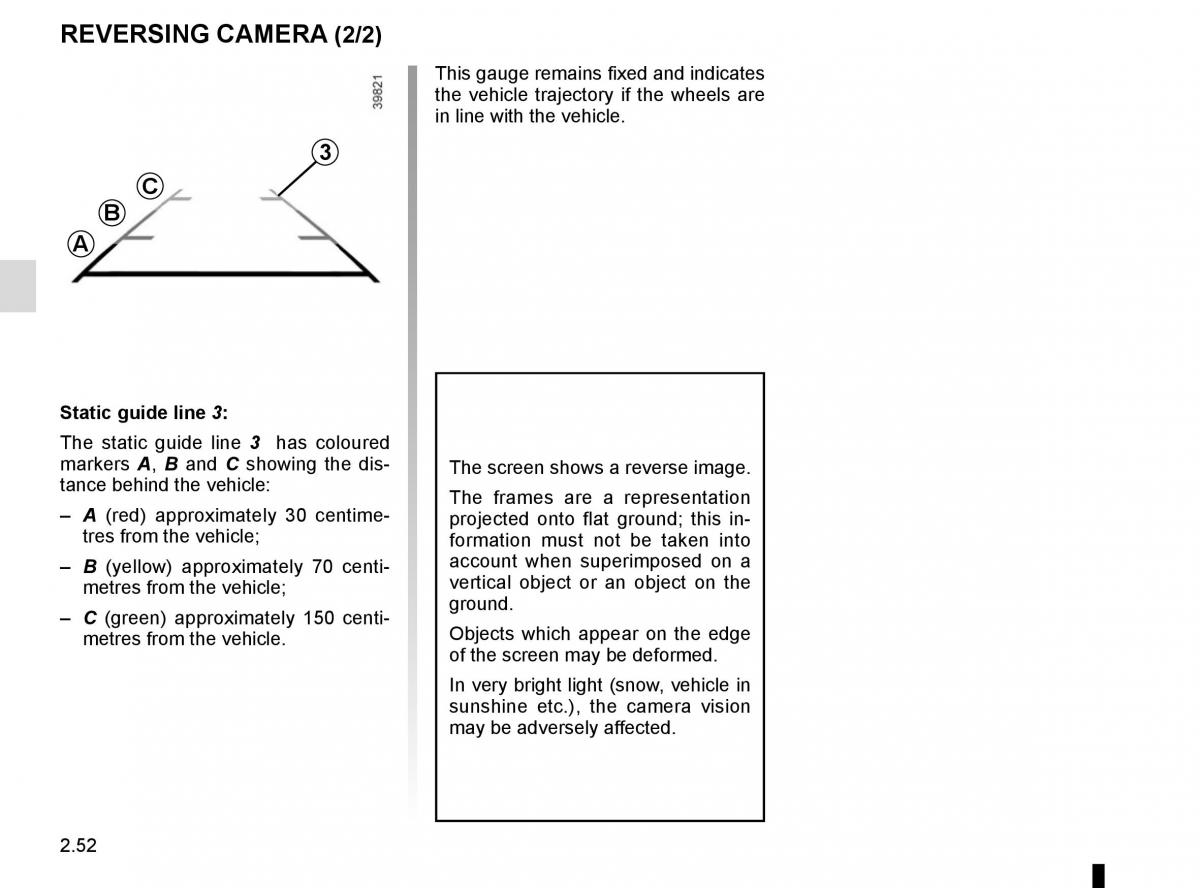

REVERSING CAMERA (2/2)
This gauge remains fixed and indicates
the vehicle trajectory if the wheels are
in line with the vehicle.
3
C
B
A
Static guide line 3:
The static guide line 3 has coloured
markers A, B and C showing the dis-
tance behind the vehicle: The screen shows a reverse image.
The frames are a representation
– A (red) approximately 30 centime-
tres from the vehicle; projected onto flat ground; this in-
formation must not be taken into
account when superimposed on a
– B (yellow) approximately 70 centi-
metres from the vehicle; vertical object or an object on the
ground.
– C (green) approximately 150 centi-
metres from the vehicle. Objects which appear on the edge
of the screen may be deformed.
In very bright light (snow, vehicle in
sunshine etc.), the camera vision
may be adversely affected.
2.52
