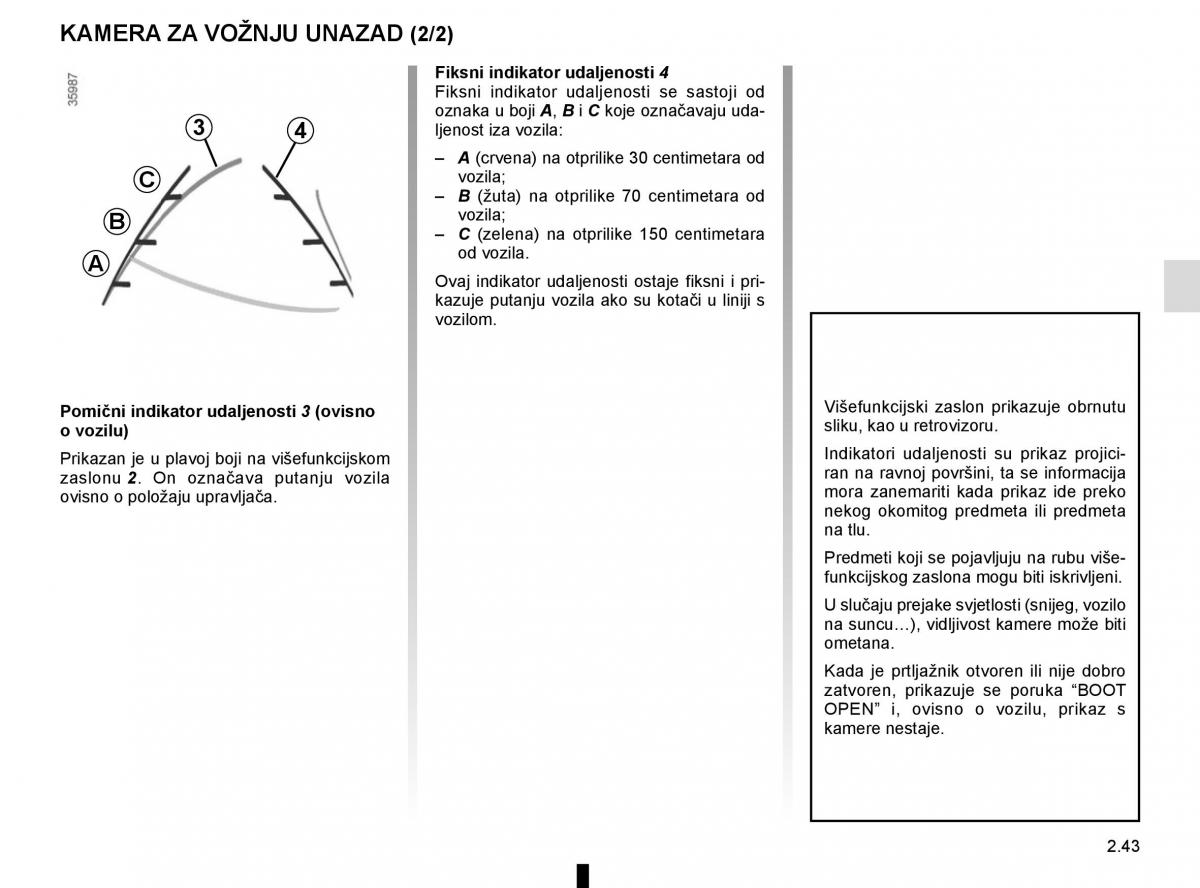

KAMERA ZA VOŽNJU UNAZAD (2/2)
Fiksni indikator udaljenosti 4
Fiksni indikator udaljenosti se sastoji od
3 oznaka u boji A, B i C koje označavaju uda-
4 ljenost iza vozila:
– A (crvena) na otprilike 30 centimetara od
C vozila;
– B (žuta) na otprilike 70 centimetara od
B vozila;
– C (zelena) na otprilike 150 centimetara
A od vozila.
Ovaj indikator udaljenosti ostaje fiksni i pri-
kazuje putanju vozila ako su kotači u liniji s
vozilom.
Pomični indikator udaljenosti 3 (ovisno Višefunkcijski zaslon prikazuje obrnutu
o vozilu) sliku, kao u retrovizoru.
Prikazan je u plavoj boji na višefunkcijskom Indikatori udaljenosti su prikaz projici-
zaslonu . On ozna2ava putanju vozilač ran na ravnoj površini, ta se informacija
ovisno o položaju upravljača. mora zanemariti kada prikaz ide preko
nekog okomitog predmeta ili predmeta
na tlu.
Predmeti koji se pojavljuju na rubu više-
funkcijskog zaslona mogu biti iskrivljeni.
U slučaju prejake svjetlosti (snijeg, vozilo
na suncu…), vidljivost kamere može biti
ometana.
Kada je prtljažnik otvoren ili nije dobro
zatvoren, prikazuje se poruka “BOOT
OPEN” i, ovisno o vozilu, prikaz s
kamere nestaje.
2.43
