owners manual Renault Clio

all ratings: 0 average rating: 5

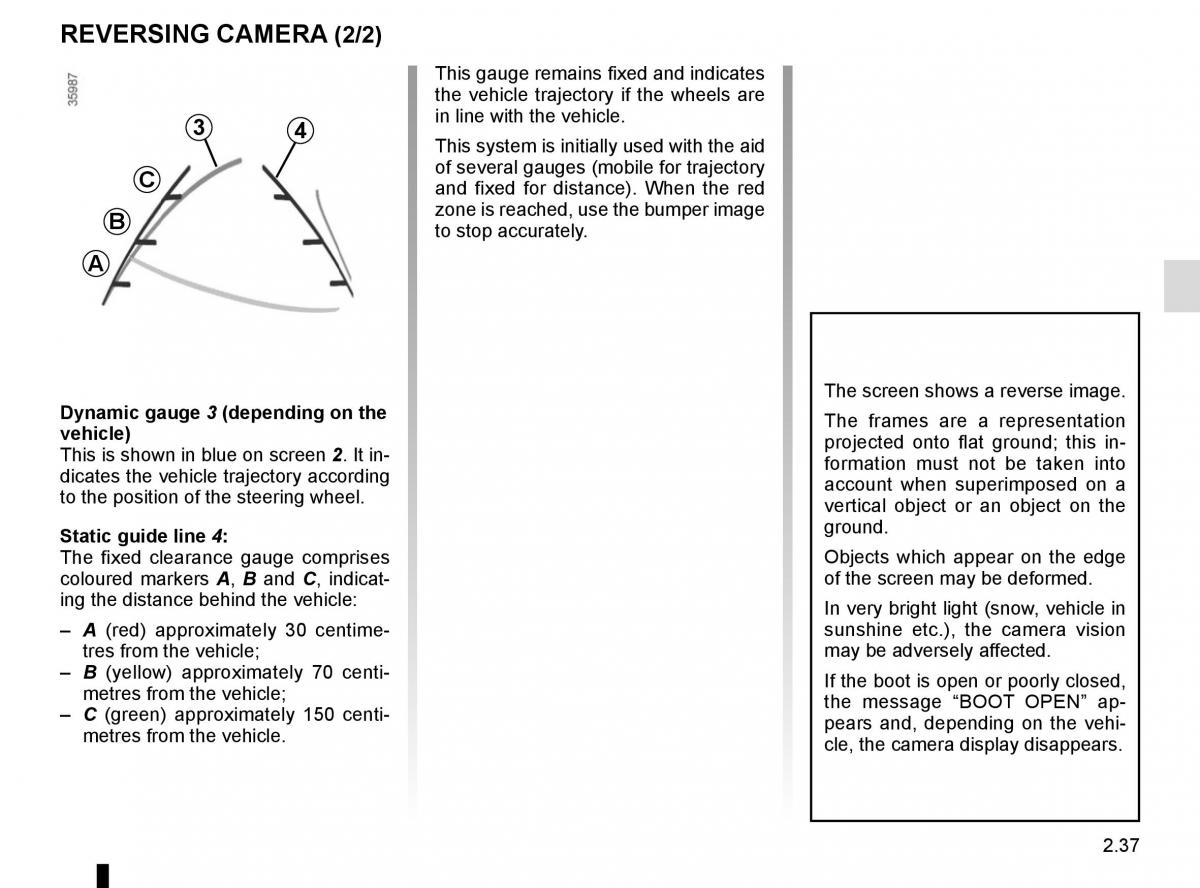

REVERSING CAMERA (2/2) This gauge remains fixed and indicates the vehicle trajectory if the wheels are 3 4 in line with the vehicle. This system is initially used with the aid C of several gauges (mobile for trajectory and fixed for distance). When the red B zone is reached, use the bumper image to stop accurately. A The screen shows a reverse image. Dynamic gauge 3 (depending on the The frames are a representation vehicle) projected onto flat ground; this in- This is shown in blue on screen 2. It in- formation must not be taken into dicates the vehicle trajectory according account when superimposed on a to the position of the steering wheel. vertical object or an object on the Static guide line 4: ground. The fixed clearance gauge comprises Objects which appear on the edge coloured markers A, B and C, indicat- of the screen may be deformed. ing the distance behind the vehicle: In very bright light (snow, vehicle in – A (red) approximately 30 centime- sunshine etc.), the camera vision tres from the vehicle; may be adversely affected. – B (yellow) approximately 70 centi- If the boot is open or poorly closed, metres from the vehicle; the message “BOOT OPEN” ap- – C (green) approximately 150 centi- pears and, depending on the vehi- metres from the vehicle. cle, the camera display disappears. 2.37
