Driving

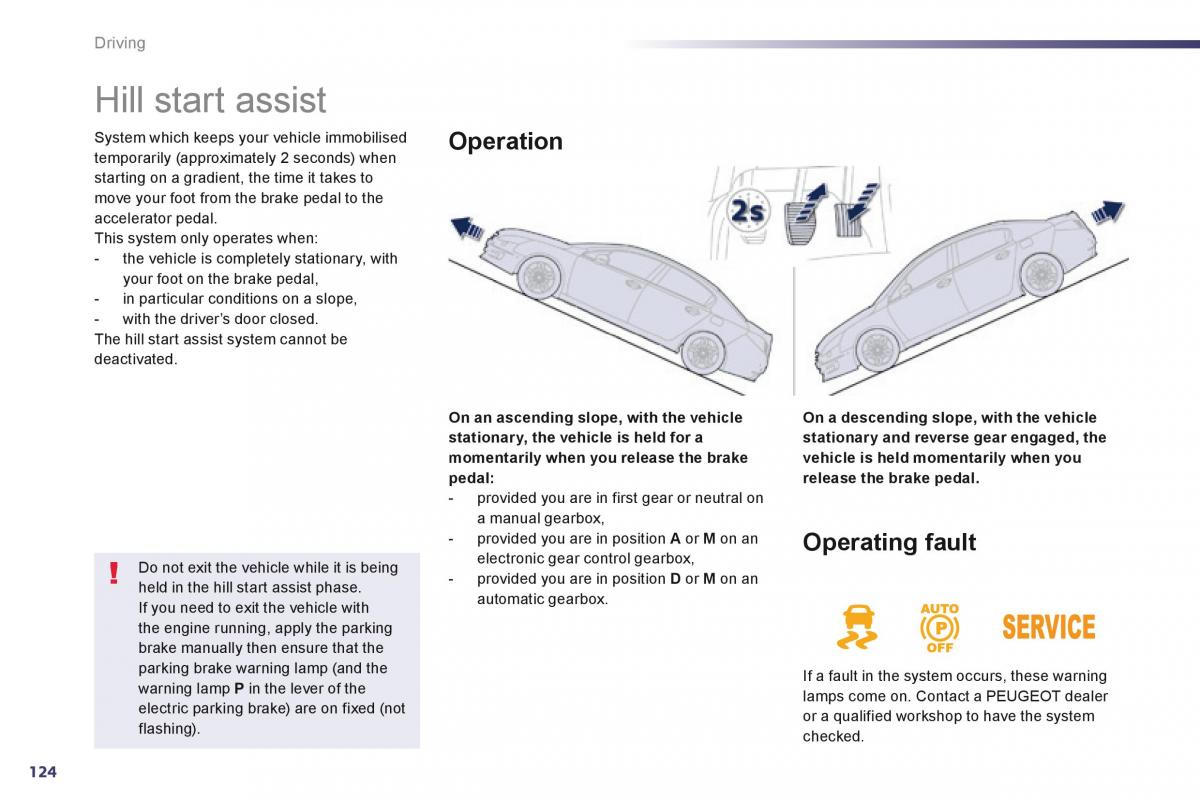

H ill start assist
System which keeps your vehicle immobilised O peration
temporarily (approximately 2 seconds) when
starting on a gradient, the time it takes to
move your foot from the brake pedal to the
accelerator pedal.
This system only operates when:
- the vehicle is completely stationary, with
your foot on the brake pedal,
- in particular conditions on a slope,
- with the driver’s door closed.
The hill start assist system cannot be
deactivated.
On an ascending slope, with the vehicle On a descending slope, with the vehicle
stationary, the vehicle is held for a stationary and reverse gear engaged, the
momentarily when you release the brake vehicle is held momentarily when you
pedal: release the brake pedal.
- provided you are in first gear or neutral on
a manual gearbox,
- provided you are in position A or M on an O perating fault
D o not exit the vehicle while it is being electronic gear control gearbox,
held in the hill start assist phase. - provided you are in position D or M on an
If you need to exit the vehicle with automatic gearbox.
the engine running, apply the parking
brake manually then ensure that the
parking brake warning lamp (and the If a fault in the system occurs, these warning
warning lamp P in the lever of the lamps come on. Contact a PEUGEOT dealer
electric parking brake) are on fixed (not or a qualified workshop to have the system
flashing). checked.
124
