Jaune Noir Noir texte

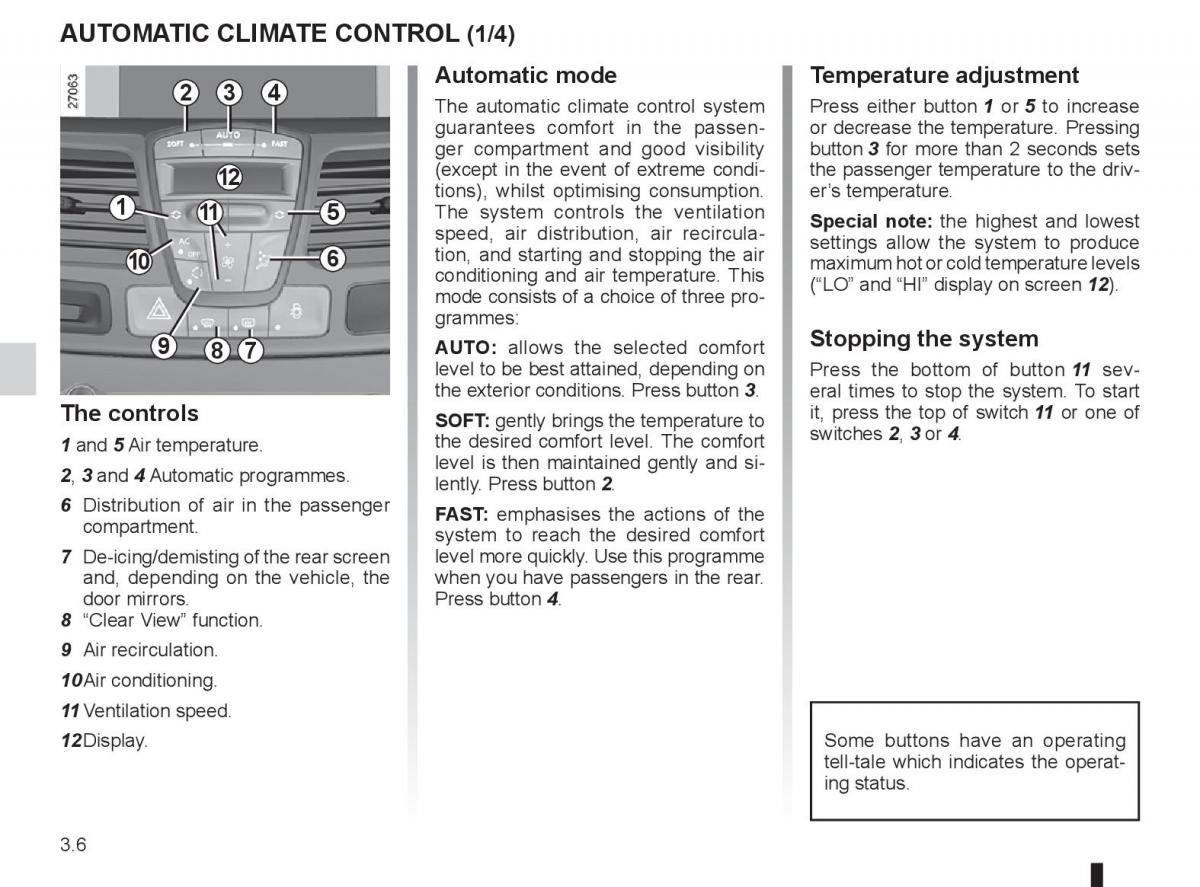

AuToMATIc clIMATE coNTRol (1/4)
2 3 4 Automatic mode Temperature adjustment
The automatic climate control system Press either button 1 or 5 to increase
guarantees comfort in the passen- or decrease the temperature. Pressing
ger compartment and good visibility button 3 for more than 2 seconds sets
12 (except in the event of extreme condi- the passenger temperature to the driv-
1 tions), whilst optimising consumption. er’s temperature.
11 5 The system controls the ventilation Special note: the highest and lowest
speed, air distribution, air recircula- settings allow the system to produce
10 6 tion, and starting and stopping the air maximum hot or cold temperature levels
conditioning and air temperature. This (“LO” and “HI” display on screen 12).
mode consists of a choice of three pro-
grammes: Stopping the system
9 8 7 AuTo: allows the selected comfort
level to be best attained, depending on Press the bottom of button 11 sev-
the exterior conditions. Press button 3. eral times to stop the system. To start
The controls SoFT: gently brings the temperature to it, press the top of switch 11 or one of
1 and 5 Air temperature. the desired comfort level. The comfort switches 2, 3 or 4.
2, 3 and 4 Automatic programmes. level is then maintained gently and si-
lently. Press button 2.
6 Distribution of air in the passenger FAST: emphasises the actions of the
compartment. system to reach the desired comfort
7 De-icing/demisting of the rear screen level more quickly. Use this programme
and, depending on the vehicle, the when you have passengers in the rear.
door mirrors. Press button 4.
8 “Clear View” function.
9 Air recirculation.
10 Air conditioning.
11 Ventilation speed.
12 Display. Some buttons have an operating
tell-tale which indicates the operat-
ing status.
3.6
ENG_UD22215_6
ENG_NU_936-3_BK91_Renault_3 Air conditionné automatique (X91 - B91 - K91 - Renault)
Automatic climate control
air conditioning .(up to the end of the DU)
heating system .(up to the end of the DU)
temperature regulation .(up to the end of the DU)
ventilation .(up to the end of the DU)
air conditioning .(up to the end of the DU)
