text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 156, year of production 1997 - 2006:

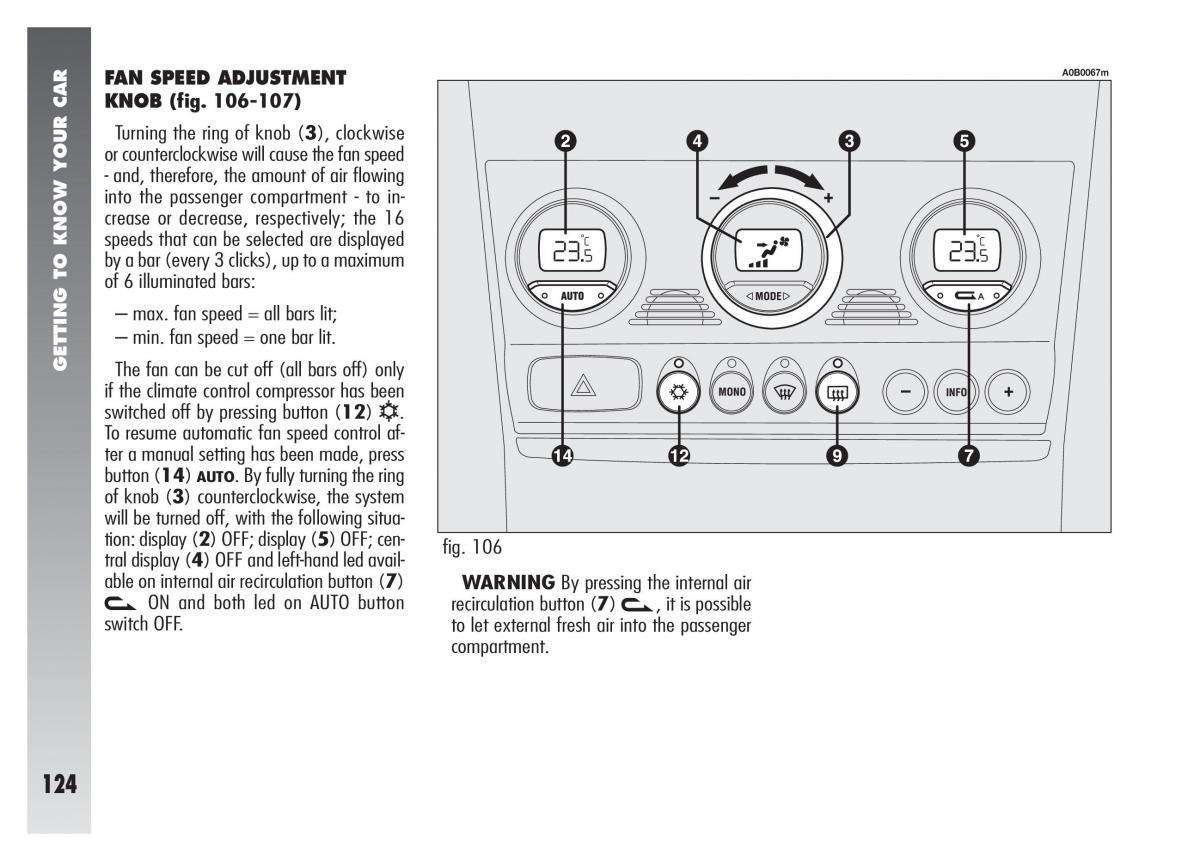

FAN SPEED ADJUSTMENT A0B0067m KNOB (fig. 106-107) Turning the ring of knob (3), clockwise or counterclockwise will cause the fan speed - and, therefore, the amount of air flowing into the passenger compartment - to in- crease or decrease, respectively; the 16 speeds that can be selected are displayed by a bar (every 3 clicks), up to a maximum of 6 illuminated bars: – max. fan speed = all bars lit; – min. fan speed = one bar lit. GETTING TO KNOW YOUR CARThe fan can be cut off (all bars off) only if the climate control compressor has been switched off by pressing button (12) . √ To resume automatic fan speed control af- ter a manual setting has been made, press button ( 14) AUTO. By fully turning the ring of knob (3) counterclockwise, the system will be turned off, with the following situa- tion: display (2) OFF; display (5) OFF; cen- fig. 106 tral display (4) OFF and left-hand led avail- able on internal air recirculation button (7) WARNING By pressing the internal air vON and both led on AUTO button recirculation button (7) , it is possible v switch OFF. to let external fresh air into the passenger compartment. 124
