text version of content this owner's manual page from owners manual to the vehicle Mercedes W140, year of production 1991 - 1998:

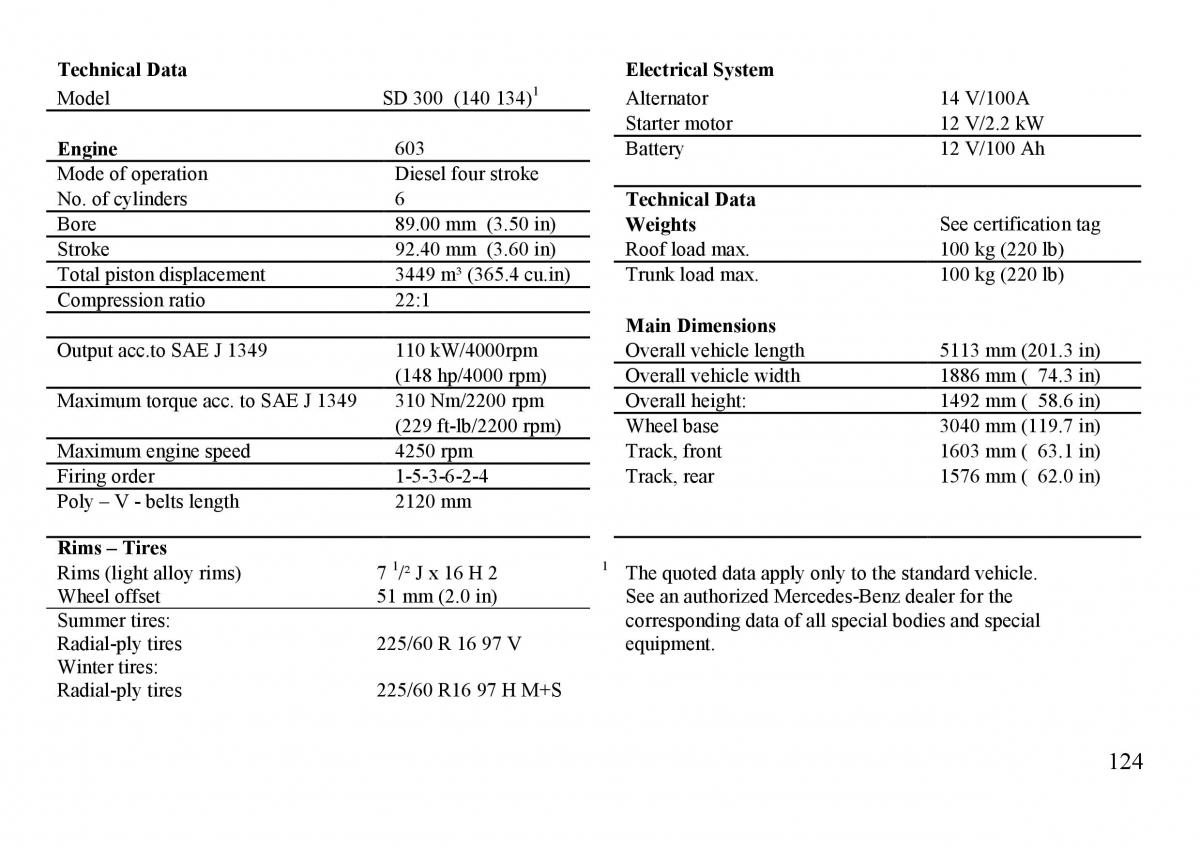

Technical Data Electrical System Model SD300 (140134)1 Alternator 14 V/100A Starter motor 12 V/2.2 kW Engine 603 Battery 12 V/100 Ah Modeofoperation Diesel four stroke No. of cylinders 6 Technical Data Bore 89.00 mm (3.50 in) Weights See certification tag Stroke 92.40 mm (3.60 in) Roofload max. 100 kg (220 lb) Total piston displacement 3449 m³ (365.4 cu.in) Trunk load max. 100 kg (220 lb) Compression ratio 22:1 MainDimensions Output acc.to SAE J 1349 110 kW/4000rpm Overall vehicle length 5113 mm(201.3 in) (148 hp/4000 rpm) Overall vehicle width 1886 mm( 74.3 in) Maximumtorqueacc.toSAEJ1349 310 Nm/2200 rpm Overall height: 1492 mm( 58.6 in) (229 ft-lb/2200 rpm) Wheelbase 3040 mm(119.7 in) Maximumenginespeed 4250rpm Track, front 1603 mm( 63.1 in) Firing order 1-5-3-6-2-4 Track, rear 1576 mm( 62.0 in) Poly – V - belts length 2120 mm Rims–Tires 1 1 Rims(light alloy rims) 7 /² J x 16 H 2 Thequoted data apply only to the standard vehicle. Wheeloffset 51 mm(2.0 in) See an authorized Mercedes-Benz dealer for the Summertires: corresponding data of all special bodies and special Radial-ply tires 225/60 R 16 97 V equipment. Winter tires: Radial-ply tires 225/60 R16 97 H M+S 124
