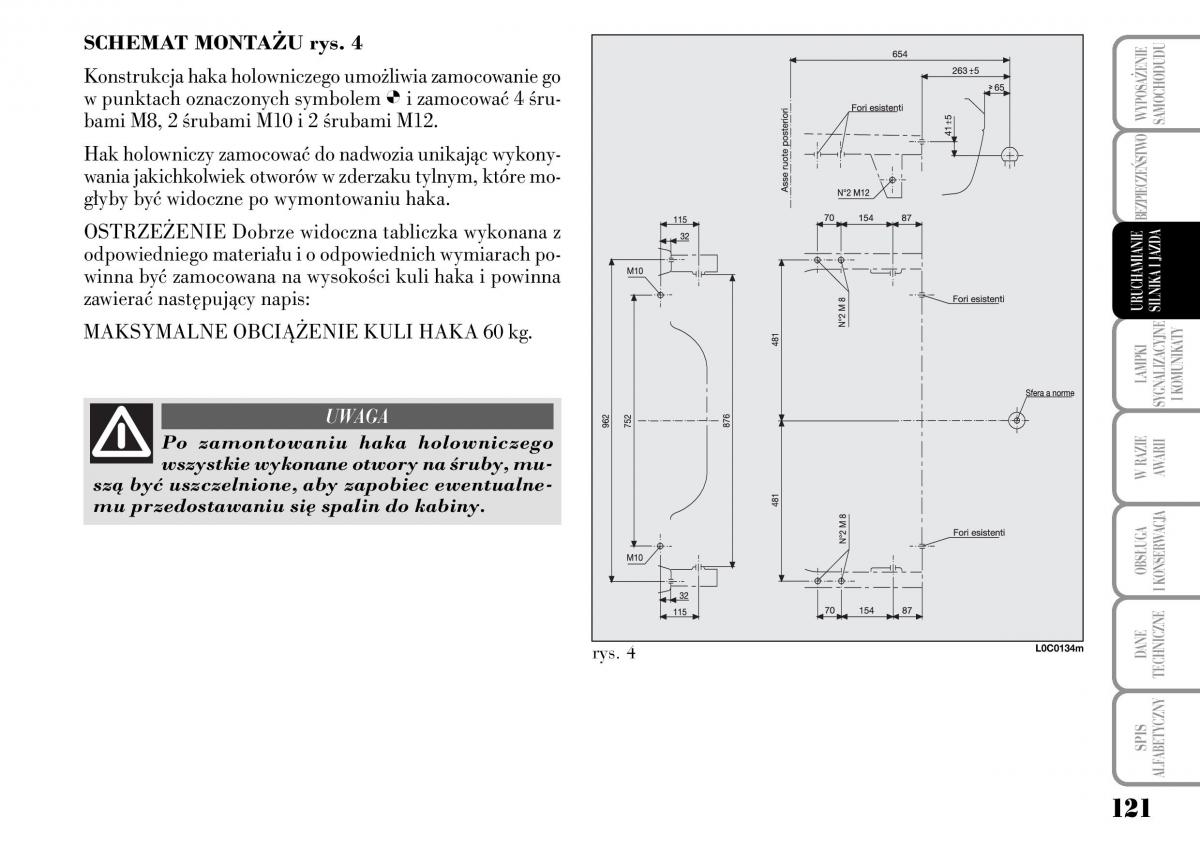

SCHEMAT MONTA˚U rys. 4
Konstrukcja haka holowniczego umo˝liwia zamocowanie go
w punktach oznaczonych symbolem Øi zamocowaç 4 Êru-
bami M8, 2 Êrubami M10 i 2 Êrubami M12. WYPOSA˚ENIESAMOCHODUDU
Hak holowniczy zamocowaç do nadwozia unikajàc wykony-
wania jakichkolwiek otworów w zderzaku tylnym, które mo-
g∏yby byç widoczne po wymontowaniu haka.
BEZPIECZE¡STWO
OSTRZE˚ENIE Dobrze widoczna tabliczka wykonana z
odpowiedniego materia∏u i o odpowiednich wymiarach po- JAZDA
winna byç zamocowana na wysokoÊci kuli haka i powinna
zawieraç nast´pujàcy napis: URUCHAMIANIESILNIKA I
MAKSYMALNE OBCIÑ˚ENIE KULI HAKA 60 kg.
LAMPKI
KOMUNIKATY
SYGNALIZACYJNEI
UWAGA
Po zamontowaniu haka holowniczego
wszystkie wykonane otwory na Êruby, mu- RAZIE AWARII
szà byç uszczelnione, aby zapobiec ewentualne- W
mu przedostawaniu si´ spalin do kabiny.
OBS¸UGA KONSERWACJA
I
rys. 4 L0C0134m DANE
TECHNICZNE
SPIS
ALFABETYCZNY
121
